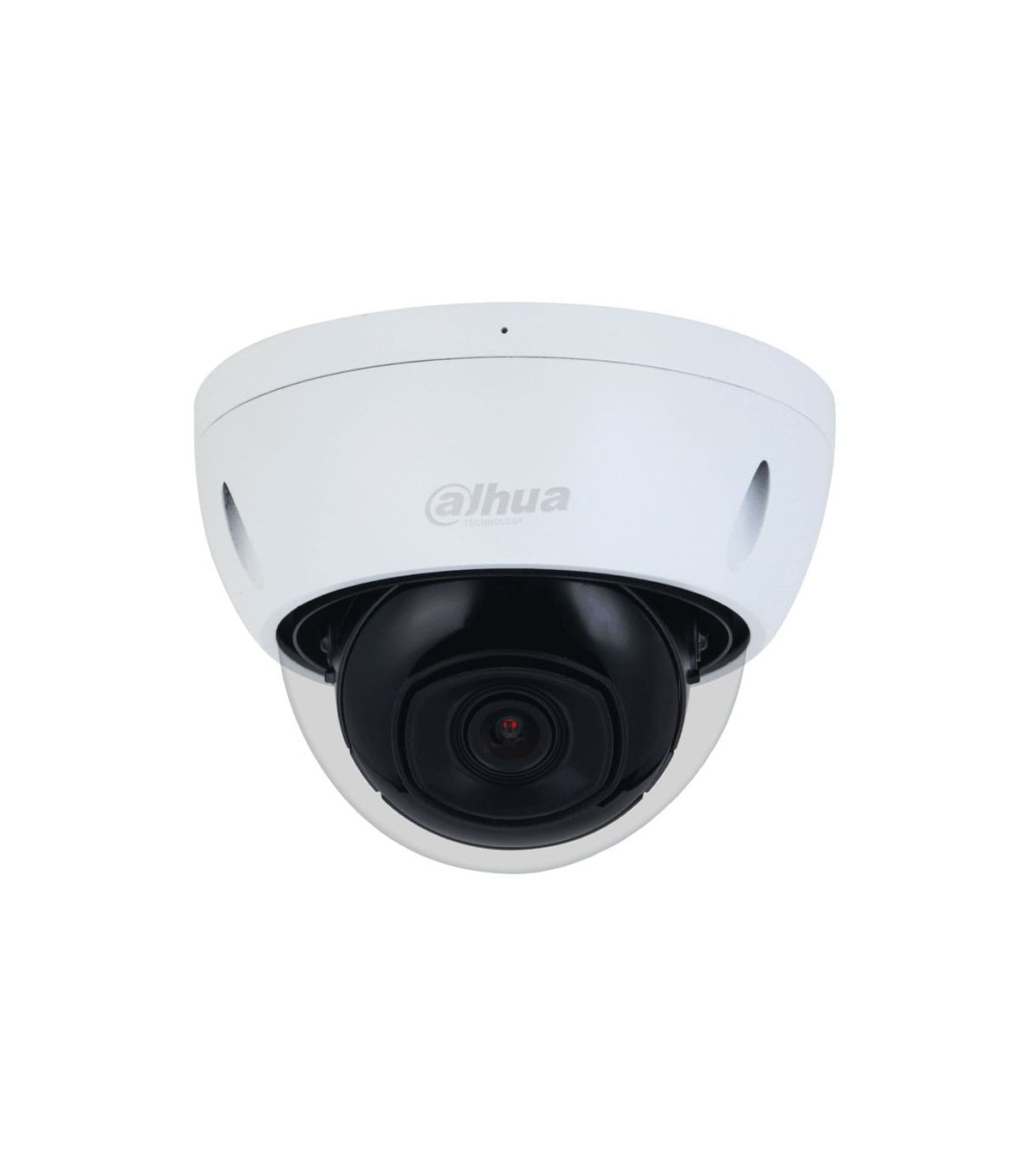

IPC-HDBW2841E-S - Dahua WizSense IP Dome 8 MP

1/2.7" 8 megapixel CMOS sensor

Compression Formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG

Digital resolution: 8MP (3840x2160), 6MP (3072x2048), 5MP (3072x1728), 5MP (2880x1620), 4MP (2688x1520), 3MP (2048x1536), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480),

CIF (352x288)

Stream 1: 8MP (1~20 fps), 4MP (1~25/30 fps)

Stream 2: D1 (1~25/30 ips)

Day/Night mode with removable mechanical filter

Smart IR: 3 IR LEDs, 30 meters

0.009 lux F2.0 (color), 0.0009 lux F2.0 (B/W), 0 lux IR on

2.8 mm fixed optics

Angle of view: 106°(H), 56°(V), 125°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.

White balance with 6 modes

Automatic and manual gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask

Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)

SMD Plus

Built-in microphone

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP,

NFS, PPPoE, Bounjour

ONVIF (Profile S/G/T), CGI, P2P, Milestone, SDK and API support

Up to 20 users

Remote viewing via IE, Chrome, Firefox browsers

Smart PSS, DSS, DMSS management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af)

Maximum power consumption: 5.4W (12V) / 6.4W (PoE)

Storage temperature from -40°C ~ +60°C

Operating temperature -40°C ~ +60°C

Relative humidity: <95%.

IP67 degree of protection

Vandal protection IK10

Metal housing

Dimensions: Ø109.9 x 81 (H) mm

Weight: 340 g

3AXIS: 0°~355°(PAN), 0°~65°(TILT), 0°~355°(Rotation)
