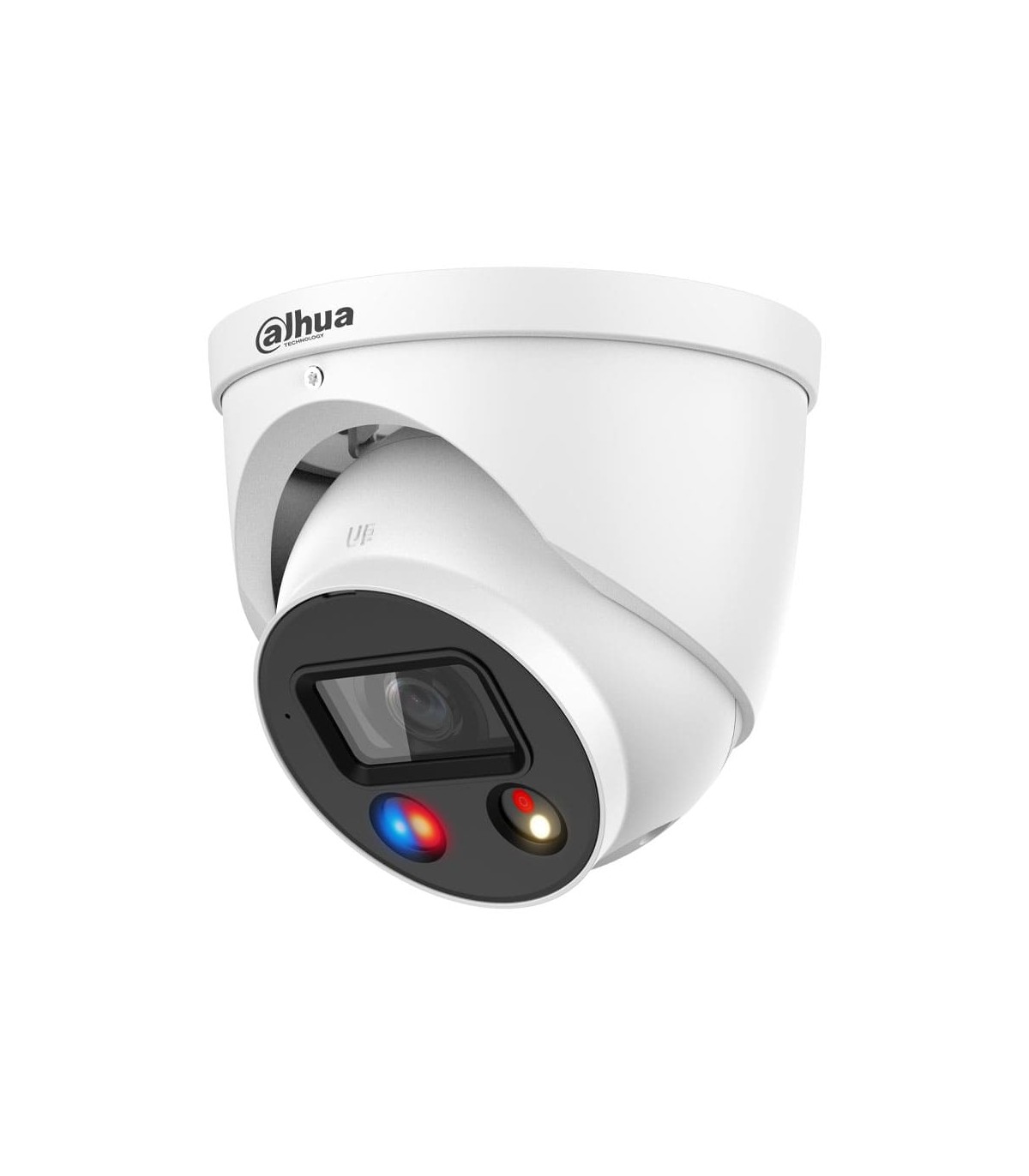

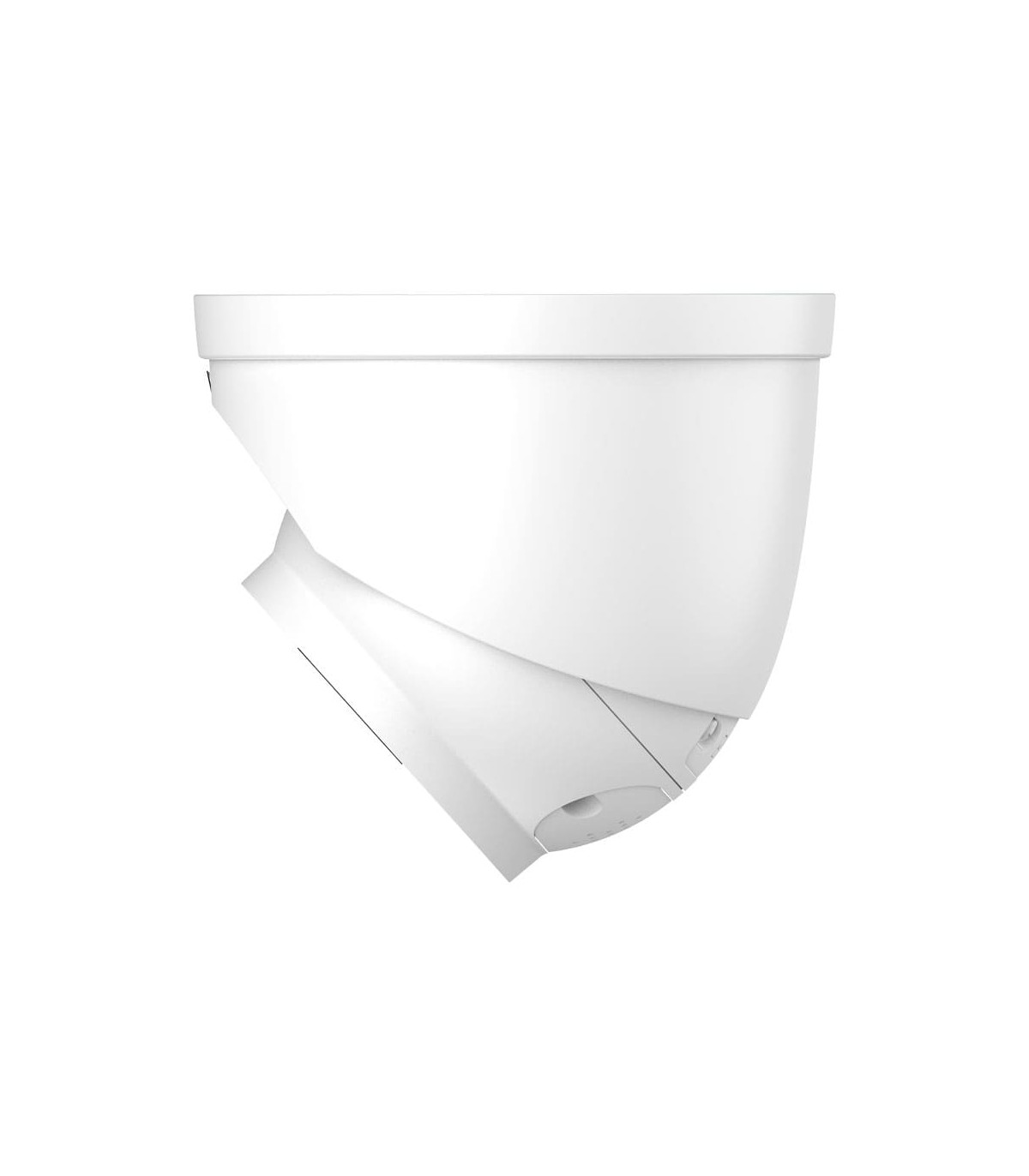

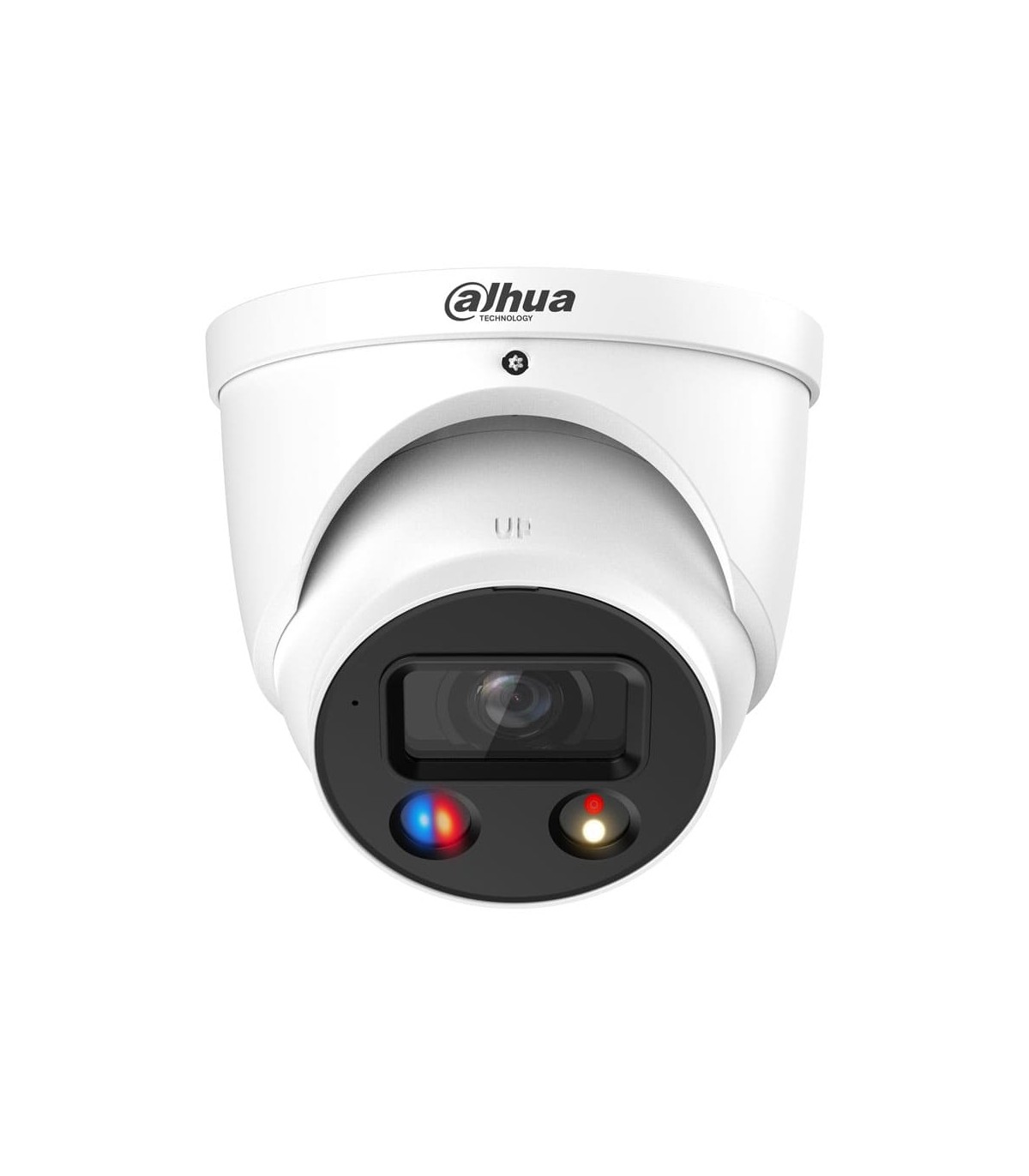

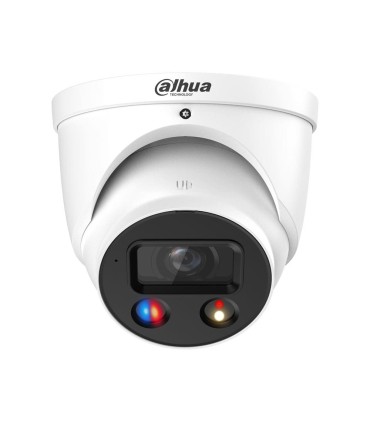

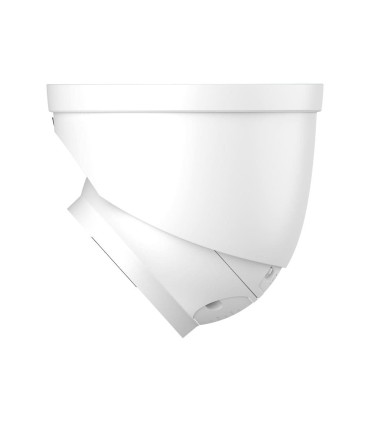

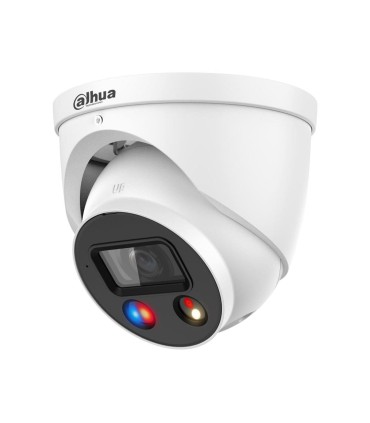

IPC-HDW3549H-AS-PV-S5 - Telecamera IP a cupola intelligente a doppia luce da 5 MP per uso esterno

5-megapixel 1/2.7" CMOS sensor

AI-H.265, AI-H.264, Smart H.265+, Smart H.264+, H.265, H.264, MJPEG video formats

Digital resolution: 5MP (2960x1688) 4.6MP (2880x1620), 4MP (2688x1520), 3.6MP (2560x1440), 3MP (2304x1296, 2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576, 704x480), VGA (640x480), CIF (352x288, 352x240).

Stream 1: 5MP, 4.6MP (1~20 fps), 4MP (1~30 fps)

Stream 2: D1 (1~25/30 fps)

Stream 3: 1080P (1~25/30 fps)

Day/night mode with removable mechanical filter (ICR)

Smart Dual Light: 1 IR led + 1 warm light led, 30 meters

0.003 lux F1.0 (color), 0.0003 lux F1.0 (B/W), 0 lux with activated illumination

2.8 mm fixed optics

Angle of view: 97°(H), 70°(V), 128°(D)

Imaging modes: BLC, HLC, WDR 120dB, SSA, 3D-NR, Mirror, Defog.

Built-in Lens Distortion Correction (LDC)

White balance with 6 modes

Automatic gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask

Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)

SMD 4.0: Less false alarms, longer detection distance

Built-in microphone and speaker

1 audio input / 1 audio output

1 alarm input / 1 alarm output

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P

ONVIF (Profile S/T/G), CGI, SDK and API support

Up to 20 users

Remote viewing via IE, Chrome and Firefox browsers

SmartPSS Lite, DSS, DMSS management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af)

Maximum power consumption: 8.3W (12V) / 8.8W (PoE)

Operating temperature from -40°C ~ +60°C

Relative humidity: ≤95%.

IP67 protection rating

Metal housing

Dimensions: Ø122 x 110,9 (H) mm

Net weight: 750 g

Gross weight: 920 g

3AXIS: 0°~360°(PAN), 0°~78°(TILT), 0°~360°(Rotation)
