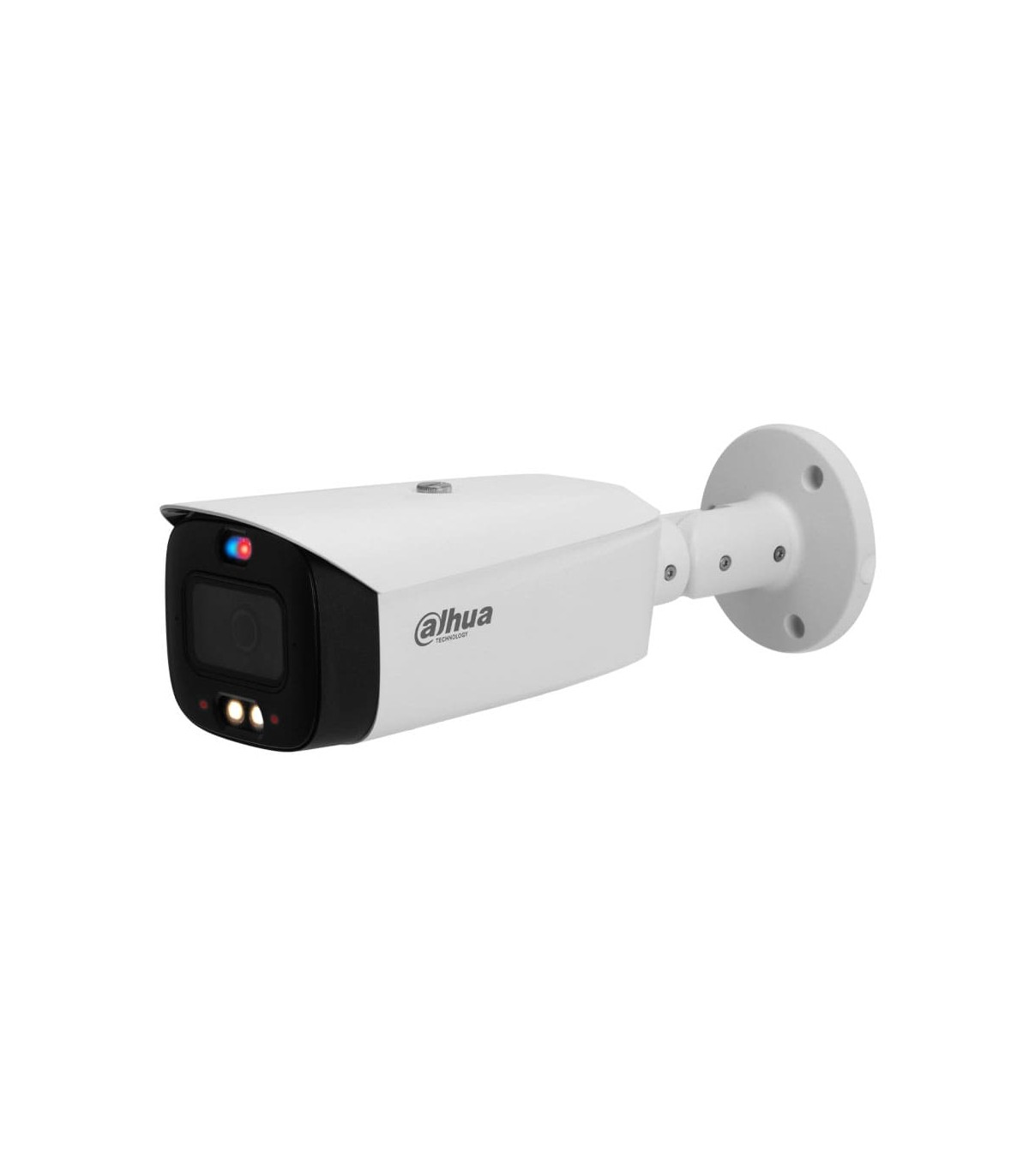

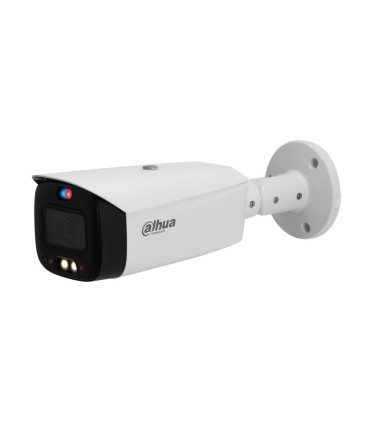

IPC-HFW3549T1-AS-PV-S5 - Telecamera IP esterna Smart Dual Light da 5 MP
Telecamera IP Dahua WizSense
5 MP a 20 ips, AI H.265+, Smart H.265+
ICR, 0,003/0,0003 lux, Smart Dual Light 30 m
Ottica fissa da 2,8 mm
WDR 120 dB, 3D-NR, 4 ROI
Protezione perimetrale e SMD 4.0
Deterrenza attiva
Microfono e altoparlante integrati
1 ingresso / 1 uscita audio
1 ingresso / 1 uscita allarme
Slot MicroSD, RJ45, Onvif, IP67, 3AXIS, PoE.
1/2.7" 5-megapixel CMOS sensor
Video formats AI-H.265, AI-H.264, Smart H.265+, Smart H.264+, H.265, H.264, H.264, MJPEG
Digital resolution: 5MP (2880x1620, 2960x1668), 4MP (2688x1520), 3.6MP (2560x1440), 3MP (2304x1296, 2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 5MP (1~20 ips), 4MP (1~25 ips)
Stream 2: D1 (1~25 fps)
Stream 3: 1080P (1~25 fps)
Day/night mode with removable mechanical filter (ICR)
Smart Dual Light: 2 IR leds + 2 warm light leds, 30 meters
0.003 lux F1.0 (color), 0.0003 lux F1.0 (B/W), 0 lux with activated illumination
2.8 mm fixed optics
Angle of view: 97°(H), 70°(V), 128°(D)
Imaging modes: BLC, HLC, WDR 120dB, SSA, 3D-NR, Mirror, Defog.
Built-in Lens Distortion Correction (LDC)
White balance with 6 modes
Automatic and manual gain control
Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask
Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)
SMD 4.0: Less false alarms, longer detection distance
Built-in dual microphone and speaker
1 audio input / 1 audio output
1 alarm input / 1 alarm output
MicroSD card slot up to 512GB (not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
ONVIF (Profile S/T/G), CGI, SDK and API support
Up to 20 users
Remote viewing via IE, Chrome and Firefox browsers
SmartPSS Lite, DSS, DMSS management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC / PoE (802.3af)
Maximum power consumption: 8.3 W (12V) / 8.8 W (PoE)
Storage temperature from -40°C ~ +60°C
Operating temperature: -40°C ~ +60°C (-40°C ~ +60°C)
Relative humidity: ≤95% (non-condensing)
IP67 degree of protection
Metal and plastic housing
Color: white
Dimensions: 94.4 (W) x 84.7 (H) x 288.4 mm (1.5 x 2.8 inches)
Net weight: 1 kg
Gross weight: 1.23 kg
3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(Rotation)
