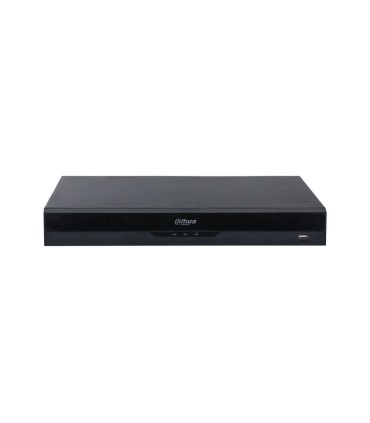

NVR4216-16P-EI - NVR IP Dahua WizSense a 16 canali

16 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Simultaneous / heterogeneous HDMI (4K) and VGA video outputs (configurable)

Main display output division: 1, 4, 8, 9, 9, 16

Secondary display output split: 1, 4, 8, 8, 9, 16

1 RCA audio input / 1 output

Audio compression: PCM, G.711a, G.711u, G726

Recording resolution: 16MP, 12MP, 8MP, 8MP, 6MP, 5MP, 4MP, 1080P, 1.3MP, 720P, D1, CIF

Bandwidth with AI off: 256 Mbps incoming, 256 Mbps recording, 256 Mbps outgoing

Bandwidth with AI enabled: 180 Mbps incoming, 180 Mbps recording, 180 Mbps outgoing

Decoding capacity with AI disabled:2 channels at 16MP (30 ips), 2 channels at 12MP (30 ips), 4 channels at 8MP (30 ips), 4 channels at 6MP (30 ips), 6 channels at 5MP (30 ips), 8 channels at 4MP (30 ips), 16 channels 1080P (30 ips).

AI enabled decoding capability: 1 channel at 16MP (30 ips), 2 channels at 12MP (30 ips), 3 channels at 8MP (30 ips), 3 channels at 6MP (30 ips), 4 channels at 5MP (30 ips), 6 channels at 4MP (30 ips), 12 channels at 1080P (30 ips), 16 channels 720P (30 ips).

General, motion detection, intelligence, alarm, alarm recording modes

Motion detection alarm, privacy mask, video loss, scene change, PIR alarm, external IP camera alarm.

AI in the recorder:

Perimeter protection of up to 2 channels with 10 IVS rules per channel.

Face detection with up to 1 channel attributes and up to 12 images per second per channel

Face recognition with attributes up to 1 channel, up to 12 images per second and up to 10 databases with 20 000 images

SMD Plus up to 4 channels with filtering between people and vehicles

AI support from compatible IP cameras:

Supports up to 16 IP cameras with perimeter protection.

Supports up to 16 IP cameras with face detection

Support up to 16 IP cameras with face recognition

Supports up to 16 IP cameras with SMD Plus

Up to 16 channel playback

4 alarm inputs / 2 alarm outputs

Internal capacity for 2 SATA HDD up to 16TB (sold separately)

16 PoE+ (802.3af/at) 10/100Mbps ports

Total PoE delivery of 130W

Gigabit Ethernet RJ45 network port (10/100/1000Mbps)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filtering, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP cameras, DVR, NVS, etc.), P2P, auto logging

ONVIF 22.06 (Profile T/S/G), CGI and SDK support

Compatible with web browsers, Android and iOS devices

Server Access local network and Internet

Possibility to restrict user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected via TCP/IP

Sending of eMails with photo attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 2 USB 2.0 ports

Power supply: 100V ~ 240V AC, 47/63 Hz

Power consumption: ≤10W (excluding disks)

Storage temperature from -20°C ~ +60°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10%~93%.

Dimensions: 375 (W) x 53 (H) x 329,3 mm

Net weight: 2.6 kg

Gross weight: 3.8 kg

Rack or tabletop installation
