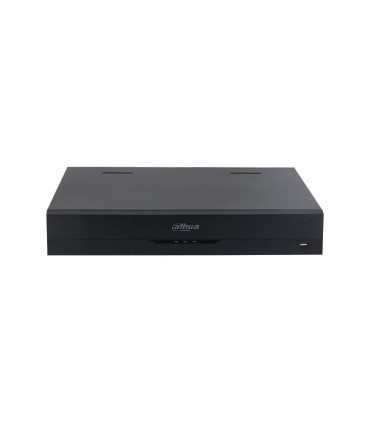

NVR2216-16P-I2 - NVR IP WizSense a 16 canali con PoE

16 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Simultaneous HDMI (4K) and VGA (1080P) video outputs

Screen division: 1, 4, 8, 8, 9, 16

1 input / 1 output RCA audio

Audio Compression: PCM, G.711a, G.711u, G726

Recording resolution: 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1

Bandwidth with AI disabled: 144 Mbps access, 144 Mbps recording, 72 Mbps forwarding

Bandwidth with AI enabled: 72 Mbps access, 72 Mbps record, 36 Mbps send

Decoding capacity with AI disabled: 1 channel at 12MP (30 ips), 1 channel at 8MP (30 ips), 2 channels at 5MP (30 ips), 3 channels at 4MP (30 ips), 6 channels 1080P (30 ips)

AI enabled decoding capability: 1 channel at 8MP (30 fps), 1 channel at 5MP (30 fps), 2 channels at 4MP (30 fps), 4 channels 1080P (30 fps)

Manual recording modes, alarm recording, motion detection recording, scheduled recording.

AI on recorder:

1-channel perimeter protection

Face detection with 1-channel attributes and up to 12 frames per second per channel

Face recognition with 1-channel attributes, up to 4 images per second and up to 10 databases with 5000 images

SMD Plus up to 4 channels with filtering between people and vehicles

AI support from compatible IP cameras:

Supports up to 4 IP cameras with perimeter protection.

Supports up to 5 IP cameras with face detection

Support up to 5 IP cameras with face recognition

Support up to 6 IP cameras with SMD Plus

Playback of up to 16 channels

Internal capacity for 2 SATA HDD up to 10TB (sold separately)

RJ45 Fast Ethernet network port (10/100/1000Mbps)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVSs, etc.), P2P, Auto Logging

ONVIF (Profile T/S/G), CGI and SDK support

Compatible with web browsers, Android and iOS devices

Server Access local network and Internet

Ability to limit user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected via TCP/IP

Sending of eMails with photo attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and to be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 2 USB 2.0 ports

16 PoE ports (10/100Mbps)

Total PoE delivery of 130W

Power supply: 100V ~ 240V AC, 47-63Hz, 43.5

Consumption: ≤10W (excluding disks)

Storage temperature from 0°C ~ +40°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10%~93%.

Dimensions: 375(W) x 53(H) x 329.3 mm

Net weight: 2.63 kg

Gross weight: 3.91 kg

Tabletop installation
