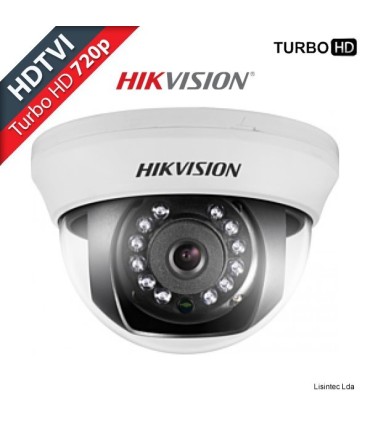

DS-2CE56C0T-IRMM
HD720P Indoor IR Dome Camera
• 1.0 Megapixel high-performance CMOS
• Analog HD output, up to 720P resolution
• True Day/Night
• DNR, Smart IR
• Up to 20m IR distance
| mage Sensor: | | | 1MP CMOS Image Sensor |
| Signal System: | | | PAL/NTSC |
| Effective Pixels: | | | 1296(H)x732(V) |
| Min. Illumination: | | | 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time: | | | 1/25(1/30) s to 1/50,000 s |
| Lens: | | | 3.6mm (2.8mm), Angle of View: 70.9°(3.6mm), 92°(2.8mm) |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan: 0 - 350°, Tilt: 0 - 70°, Rotation: 0 - 350° |
| Day& Night: | | | IR cut filter with auto switch |
| Video Frame Rate: | | | 720p@25fps/720p@30fps |
| HD Video Output: | | | 1 Analog HD output |
| Synchronization: | | | Internal Synchronization |
| S/N Ratio: | | | More than 62 dB |
| General | ||
|---|---|---|
| Operating Conditions: | | | -20 °C - 45 °C (-4 °F - 113 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 VDC±15% |
| Power Consumption: | | | Max. 4W |
| IR Range: | | | Up to 20m |
| Dimension: | | | Φ 98 x 65.4 mm (φ 3.86” x 2.57”) |
| Weight: | | | 240 g |
