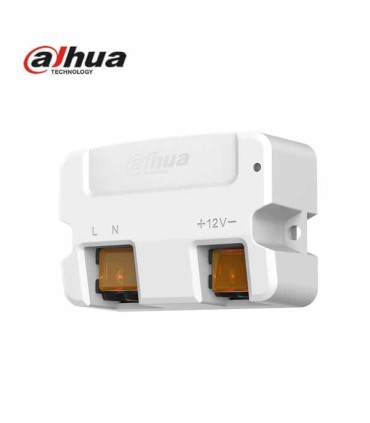

PFM320D-015 - Alimentatore Dahua DC12V1.5A

PFM320D-015
Installazione facile
Led indicatore di funzionamento
Resiste a temperature di -30 ℃ ~ + 70 ℃ con efficienza al 100%
Protezione da sovratensione

Read moreShow less
7,20 € (Tasse incl.)
CONSEGNAZIONE IN: da 2 a 4 giorni
Disponibile
Reference:
PFM320D-015
Brand:
Add to compare0
Add to wishlist
Descrizione

Model DH-PFM320D-015
Electrical Specification
Rated input AC100~240V, 50/60Hz, 0.6A
Output voltage DC12V (+7%, -3%)
Output current Max. 1.5A (+70℃)
Protection/Environmental
Protection Surge protection, over temperature protection, over current, voltage load protection
ESD: EN61000-4-2
+/-6kV Contact; +/-8kV Air
Surge: EN61000-4-5
Combination Wave: Common Mode ±4KV(12 ohms)
Differential Mode ±2kV(2 ohms)
Working temperature -30℃~+70℃(-22℉~+158℉)
Working humidity 5%~95% RH
Physical Properties
Weight 95g(0.21lb)
Dimension(LxWxH) 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“)
Installation Plane installation, can be installed in junction boxes and wall mount brackets
Color White
Input plug 2-pin plug(L/N)
Output plug 2-pin plug(+12V-)
Safety Standards
Certification CE, FCC
