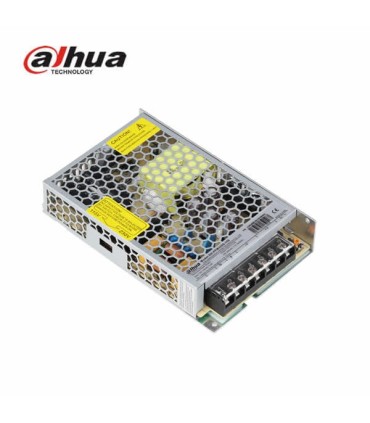

PFM320S-150
Ingresso di tensione ad ampio intervallo di 90 ~ 264 V ca, soddisfa i requisiti in diverse parti per fluttuazione della rete elettrica;
Alimentazione elettrica a più camere contemporaneamente
Regolatore di tensione (± 10%) per diversi requisiti di carico
Alta qualità e affidabilità
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DH-PFM320S-150 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electrical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input Voltage Range |
88~132Vac/176~264Vac |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Efficiency |
85.0% (@230Vac) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Voltage |
12Vdc (terminal output) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Out Voltage Tolerance |
±5% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Adjustable Range for DC Voltage |
±10% (10.8Vdc~13.2Vdc) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated Output Current |
12.5A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Power |
150W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
No Load Power Consumption |
<0.5W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection/Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Surge Protected |
Line to ground: ±2000V Line to line: ±1000V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ESD |
Contact discharge: ±6000V Air discharge: ±8000V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
-20℃~+50℃(60% output at +70℃) -4℉~+122℉(60% output at +158℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Humidity |
<90% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Physical Properties |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
0.4kg(0.88lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension(LxWxH) |
159mmx97mmx30mm (6.26”x3.82“x1.18”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount/Ceiling mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color |
Metallic silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Safety Standards |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
CE, FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
