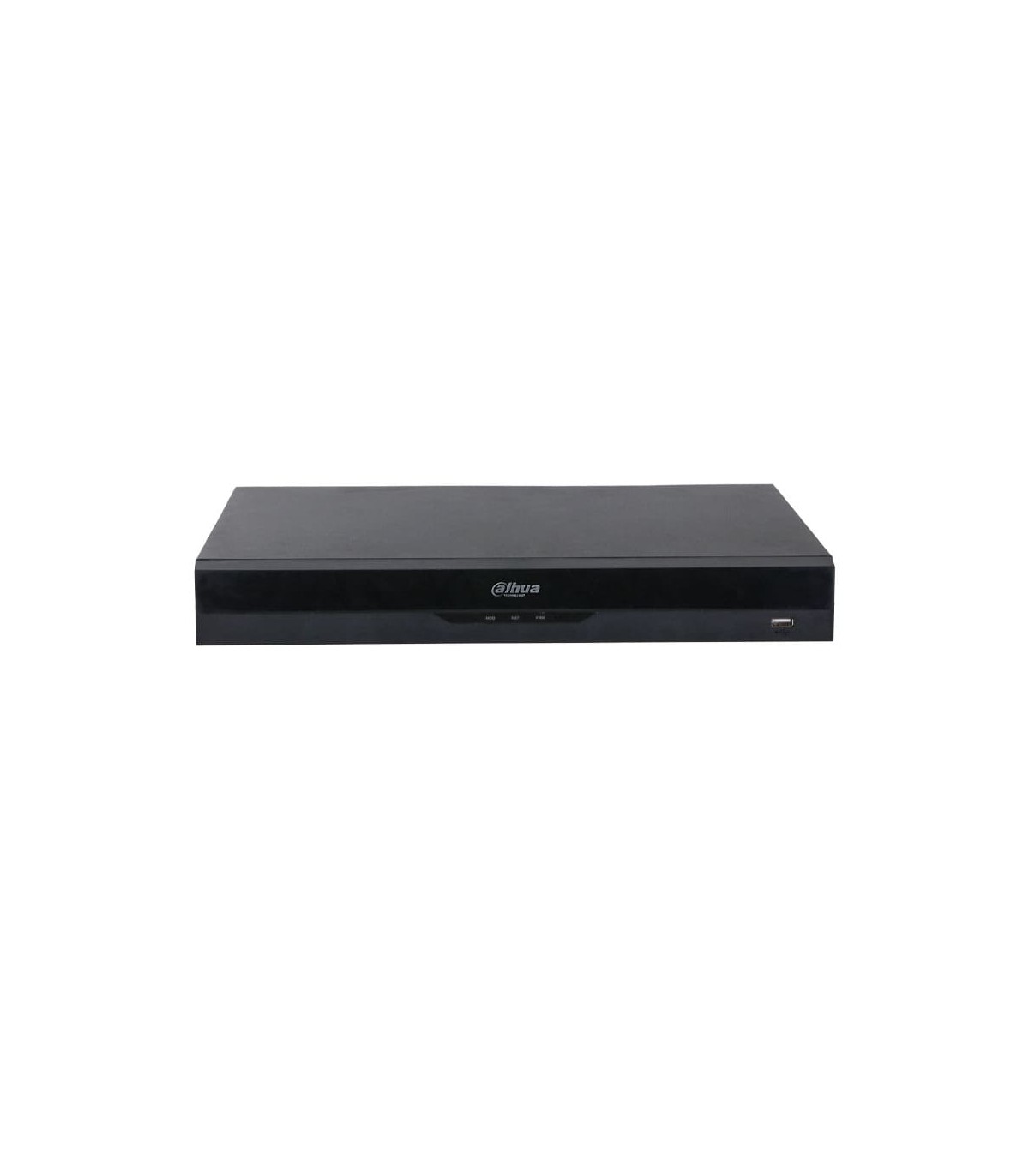

NVR5216-EI - Registratore IP a 16 canali

16 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Simultaneous video outputs HDMI (4K) and VGA (1080P)

Main display output division: 1, 4, 8, 9, 9, 16

Secondary display output division: 1, 4, 8, 8, 9, 16

1 RCA audio input / 1 RCA audio output

Audio Compression: PCM, G.711a, G.711u, G726

Recording resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080P, 720P, D1, CIF, QCIF

Bandwidth with AI disabled: 384 Mbps incoming, 384 Mbps recording, 384 Mbps outgoing

Bandwidth with AI enabled: 200 Mbps incoming, 200 Mbps recording, 200 Mbps outgoing

Decoding capacity with AI disabled: 2 channels at 32MP (20 fps), 2 channels at 24MP (20 fps), 4 channels at 16MP (30 fps), 5 channels at 12MP (30 fps), 8 channels at 8MP (30 fps), 16 channels at 4MP (30 fps)

Decoding capacity with AI enabled: 1 channel at 32MP (20 ips), 1 channel at 32MP (20 ips), 2 channels at 16MP (30 ips), 4 channels at 12MP (30 ips), 4 channels at 8MP (30 ips), 8 channels at 5MP (30 ips), 12 channels at 4MP (30 ips)

General, motion detection, intelligence, alarm and POS (POS) recording modes

Video sensor alarm, privacy mask alarm, local alarm

AI on recorder:

Perimeter protection up to 4 channels with 10 IVS rules per channel

Face detection with attributes up to 2 channels and up to 12 images per second per channel

Face recognition with attributes up to 2 channels, up to 12 images per second and up to 20 databases with 20 000 images

SMD Plus up to 8 channels with filtering between people and vehicles

AI support from compatible IP cameras

Supports up to 16 IP cameras with perimeter protection.

Supports up to 16 IP cameras with face detection

Support up to 16 IP cameras with face recognition

Supports up to 16 IP cameras with SMD Plus

Support up to 8 IP cameras with video metadata

Support up to 8 IP cameras with ANPR (up to 20,000 number plates with whitelist/blacklist)

Playback of up to 16 channels

4 alarm inputs / 2 alarm outputs

Internal capacity for 2 SATA HDD up to 16TB (sold separately)

RJ45 Fast Ethernet network port (10/100/1000Mbps)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filtering, PPPoE, FTP, DDNS, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVSs, etc.), Multicast, P2P, Auto Logging

ONVIF (Profile T/S/G), CGI and SDK support

Compatible with web browsers, Android and iOS devices

Server Access local network and Internet

Ability to limit user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected via TCP/IP

Sending of eMails with photo attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and to be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 1 x USB 2.0 port, 1 x USB 3.0 port, 1 x RS232 port, 1 x RS485 port

Power supply: 12V DC, 4A

Power consumption: ≤10W (excluding disks)

Storage temperature from -20°C ~ +60°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10%~93%.

Dimensions: 375 (W) x 56 (H) x 284 mm

Weight: 1.57 kg

Desktop installation
