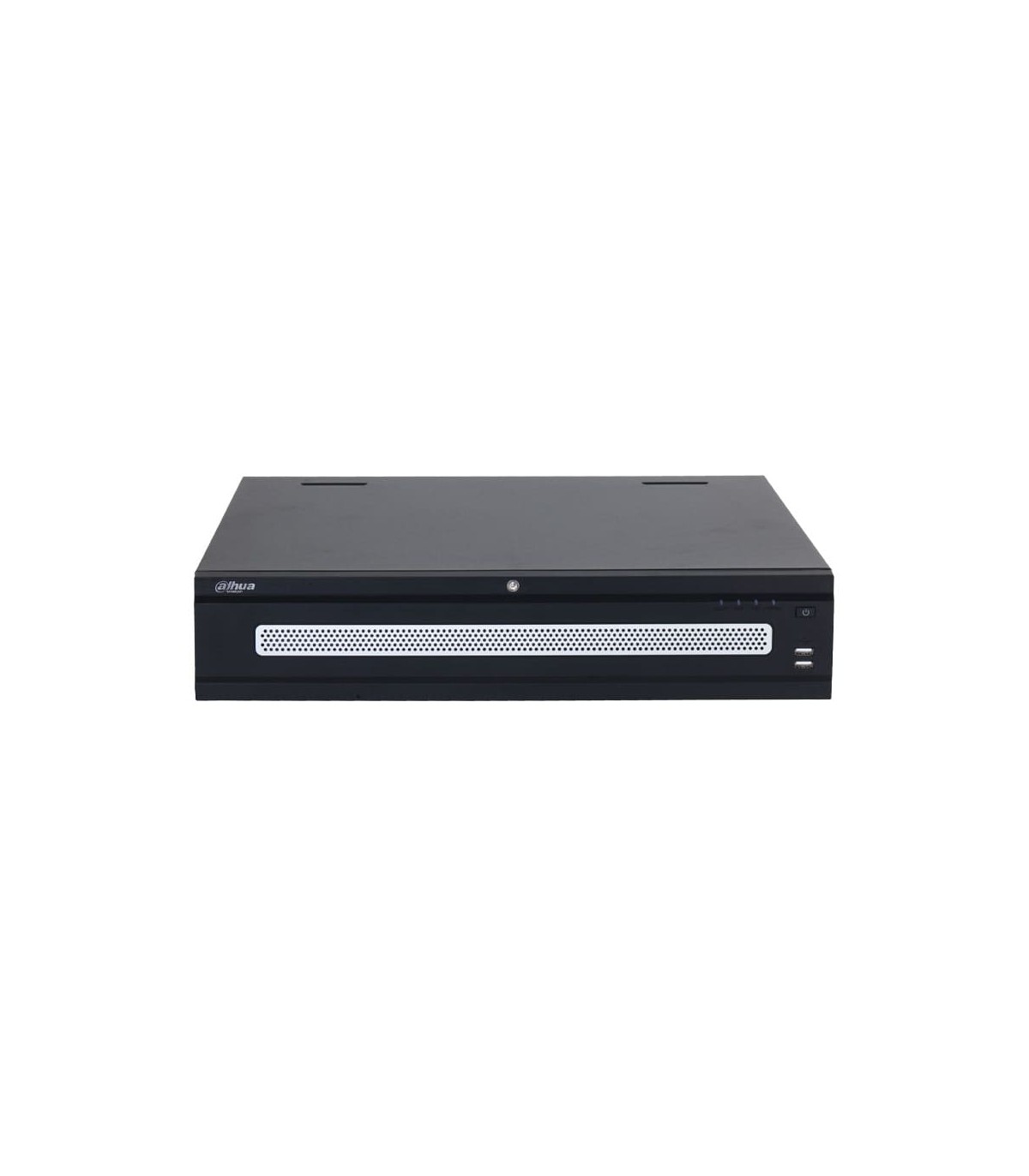

NVR608H-128-XI - NVR IP Dahua a 128 canali

128 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

4 HDMI video outputs (HDMI1/2 4K, HDMI3 8K, HDMI4 1080P) and 2 VGA outputs (1080P) simultaneous/heterogeneous

Primary display output division: 1, 4, 8, 8, 9, 16, 25, 36, 64

Secondary display output splits: 1, 4, 8, 9, 16, 25, 36, 64

1 RCA input / 2 RCA audio outputs

Bi-directional audio via RCA input/output

Recording resolution: 32MP, 24MP, 16MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080P, 720P, D1

Bandwidth with AI disabled: 1280Mbps incoming, 1280Mbps recording, 1024Mbps outgoing

AI-enabled bandwidth: 640 Mbps inbound, 640 Mbps recording, 512 Mbps outbound

AI disabled decoding capacity: 2 channels at 32MP (30 ips), 2 channels at 24MP (30 ips), 4 channels at 16MP (30 ips), 5 channels at 12MP (30 ips), 8 channels at 8MP (30 ips), 12 channels at 5MP (30 ips), 16 channels at 4MP (30 ips), 32 channels at 1080P (30 ips), 128 channels at D1 (30 ips)

AI-enabled decoding capability: 1 channel at 32MP (30 fps), 1 channel at 24MP (30 fps), 2 channels at 16MP (30 fps), 2 channels at 12MP (30 fps), 4 channels at 8MP (30 fps), 6 channels at 5MP (30 fps), 8 channels at 4MP (30 fps), 16 channels at 1080P (30 fps), 80 channels at D1 (30 fps)

Manual, calendar, alarm, motion detection, motion detection recording modes

Video sensor alarm, masking alarm, video loss alarm, scene change alarm, PIR alarm, IP camera

Playback of up to 16 channels

16 alarm inputs / 8 alarm outputs

Internal capacity for 8 SATA III HDD up to 16TB (sold separately)

Supports RAID 0/1/5/6/10, disk pooling and hot-swappable replacement

1 eSATA port

IA port on the recorder:

Perimeter protection: 32 channels in simultaneous mode, 24 channels in heterogeneous mode, 10 IVS rules per channel.

Face detection: 8 channels in simultaneous mode, 5 channels in heterogeneous mode, up to 12 images per second and per channel

Face recognition: 32 channels in simultaneous mode, 16 channels in heterogeneous mode, up to 12 images per second and up to 40 databases with 300 000 images

SMD Plus: 32 channels with filtering between people and vehicles

Video metadata: 8 channels with attributes of people and vehicles

AI support from compatible cameras:

Supports up to 64 cameras with perimeter protection.

Supports up to 64 cameras with face detection

Support up to 64 cameras with face recognition

Support up to 64 cameras with SMD Plus

Supports up to 64 cameras with video metadata

Supports up to 64 ANPR cameras (up to 20,000 whitelists/blacklists)

Watermarking to preserve video integrity

2 RJ45 Fast Ethernet network ports (10/100/1000/2500Mbps)

Network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, IP Search (Support Dahua IP cameras, DVR, NVS, etc.), Multicast, P2P, Auto Logging, ISCSI

ONVIF (S/G/T), SDK, CGI support

Remote access from web browser (Chrome, IE 9, Firefox), iOS and Android devices

Server Access local network and Internet

Ability to limit user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected by TCP/IP

Sending of eMails with photograph attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 2 USB 3.0 ports, 2 USB 2.0 ports, 1 RS485 port, 1 RS232 port

Power supply: 100V ~ 240V AC, 50/60Hz

Power consumption: ≤18W (excluding disks)

Storage temperature of 0°C ~ +40°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10% ~ 93% (non-condensing)

Dimensions: 440 (W) x 94.9 (H) x 458.4 mm (W) x 458.4 mm (W x H)

Net weight: 6.4 kg

Gross weight: 8.59 kg

Desktop or 2U rackmount installation
