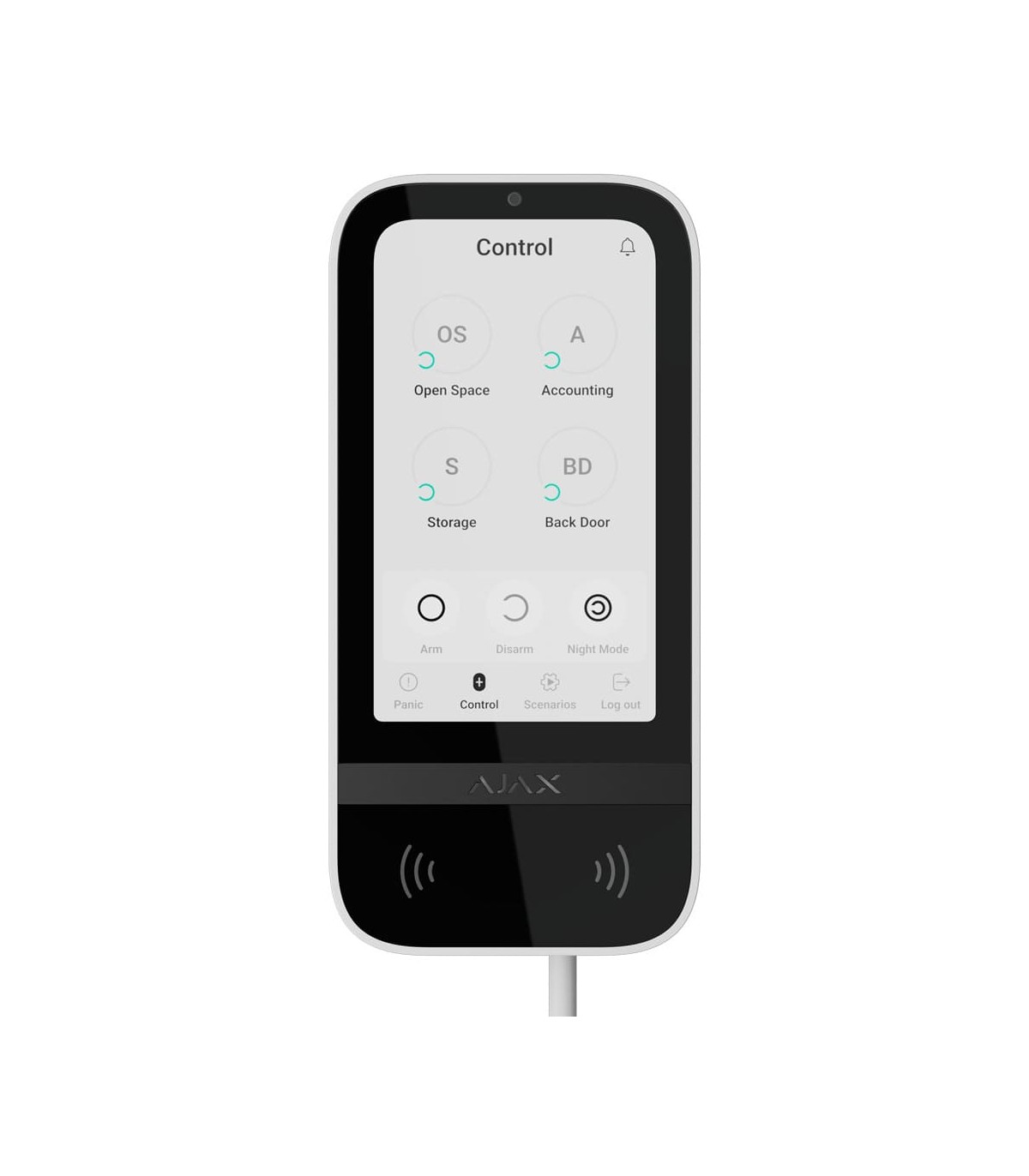

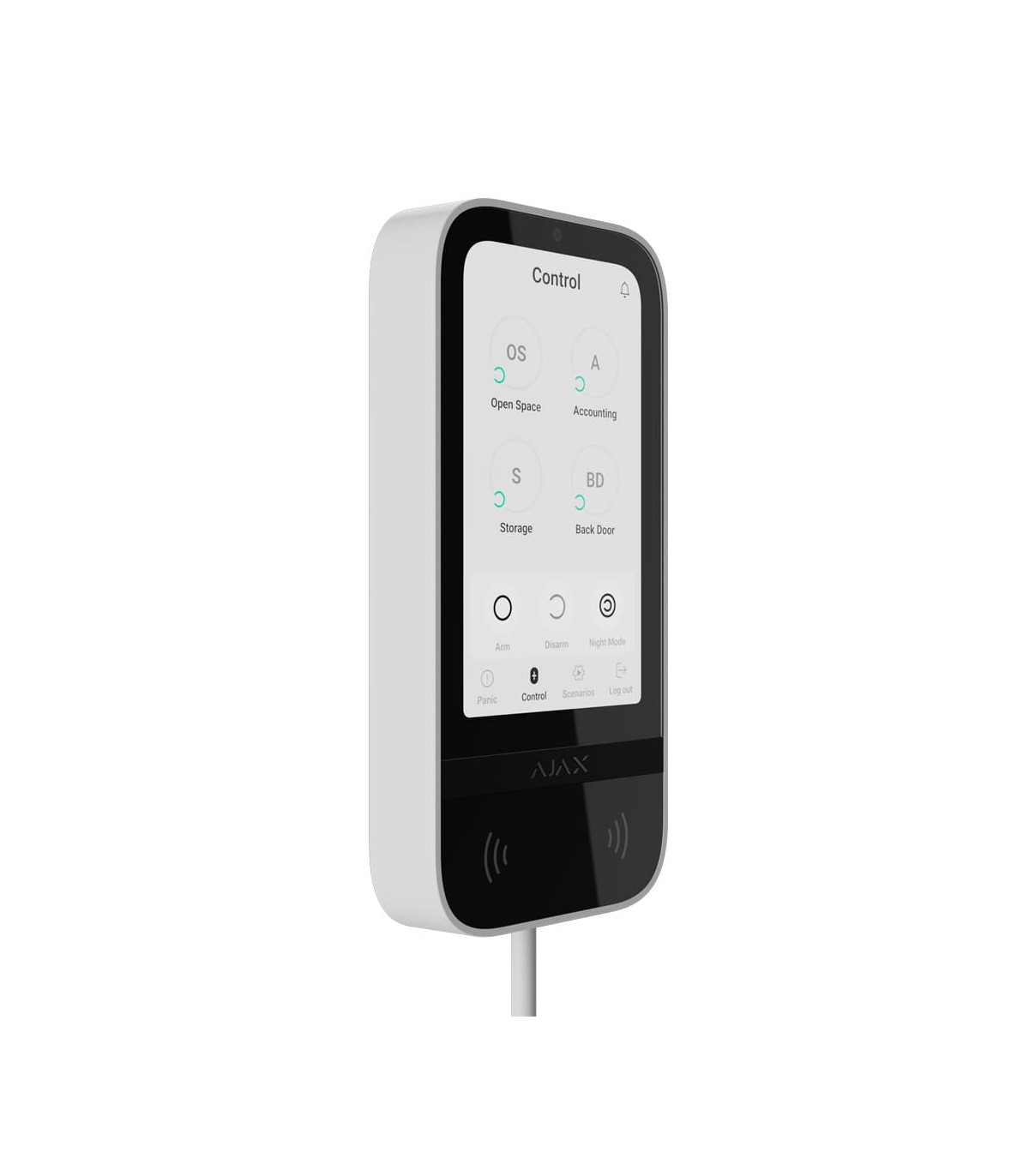

Clavier à écran tactile IPS avec lecteur RFID couleur blanche Ajax Fibra
Produit réservé aux installateurs professionnels certifiés Ajax
- Clavier à écran tactile IPS avec lecteur RFID
- Armement/désarmement complet ou groupé

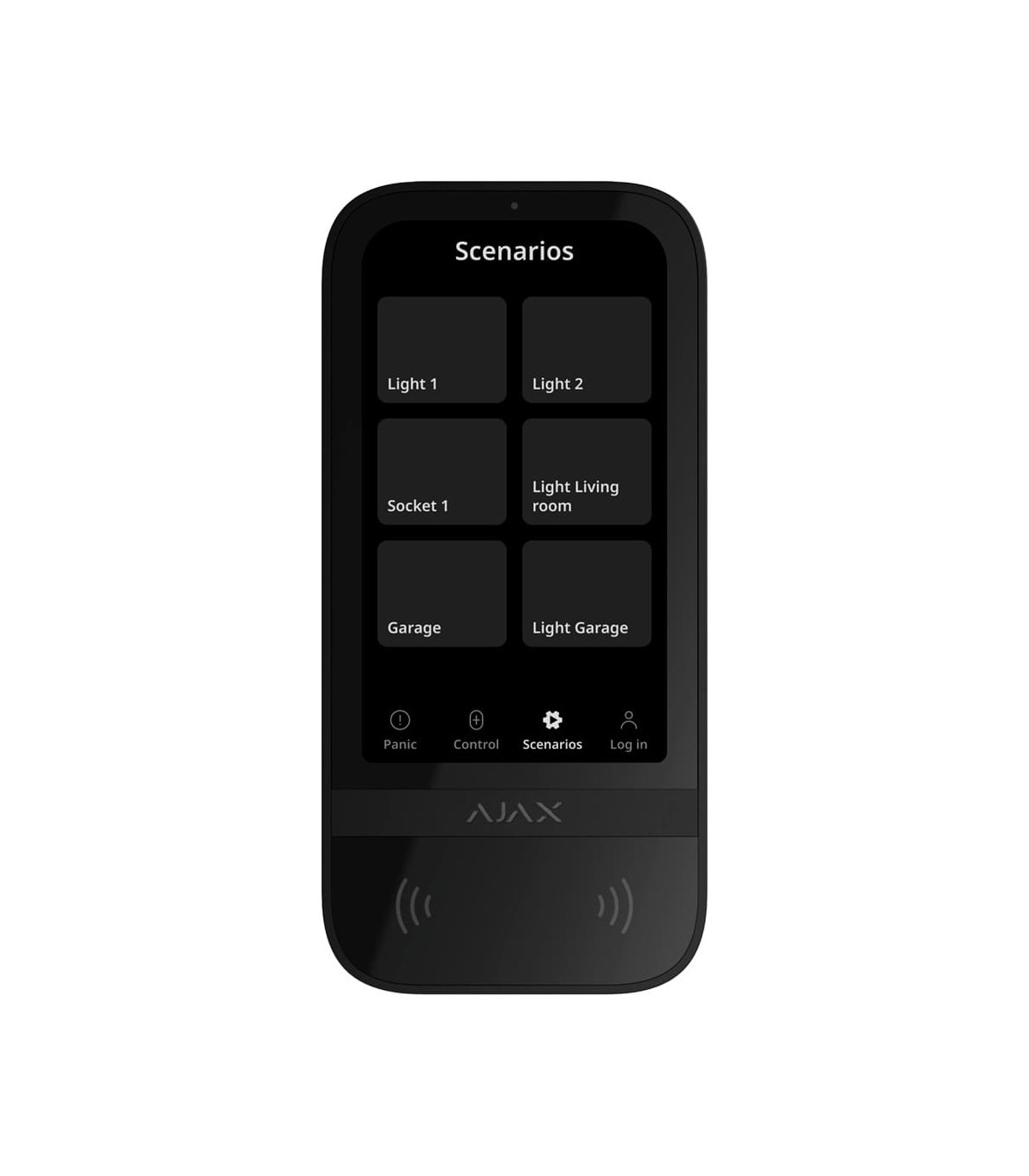

- Contrôle des scénarios d'automatisation
- Authentification: codes, lecteur RFID ou Bluetooth
- Connexion filaire et alimentation électrique externe à 12VDC
- Certifié Grade 3
Référence:
FIBRA-KEYPADTOUCHSCREEN-W
Marque:
Ajouter à la comparaison0
Ajouter à la liste de souhaits
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Bus connection | 4 wire cable |
| Functions | - Full arming/disarming of the system - Group arming/disarming - Automation scenario control (maximum 6)) |
| Authentication control | - Codes (keypad or user) - RFID reader for key fobs and cards Ajax - Cell phone via Bluetooth |
| RFID Technology | Mifare DESFire® EV1, EV2 (ISO14443-А 13,56 [%VAR%] MHz) |
| Power | - Fibra Bus: 24 V DC (Consumption up to 54.6 mA) - Reserve batteries: 2 × LTO AA (preinstalled) |
| Optional power supply | 12 VDC (Display Always On mode) |
| Operating voltage of external power supply | 10.5 - 14 VDC, up to 0.5 A |
| Panic button | Configurable: - Panic - Fire (silence alarm) - Urgent Help |
| Notifications | Sound notifications by: - Delays - Door opening - Alarms Instant notifications of malfunctions |
| Antisabotage | - Tamper - Fixing screw - Automatic blocking in case of unauthorized access |
| Led indicator | To indicate safety mode status |
| Screen | 5 inch touch-sensitive IPS |
| Screen resolution | 480 × 854 px |
| Interface modes | Day and night |
| Compatibility with central panels and repeaters | Compatible with Ajax Hub Hybrid (2G and 4G) |
| Available languages | English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Farsi, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese. |
| Dimensions | 171 (H) x 82 (W) x 28 (D) mm |
| Temp. operation | -10º C ~ 40º C |
| Weight | 327 g |
| Housing material | ABS plastic |
| Colour | White |
