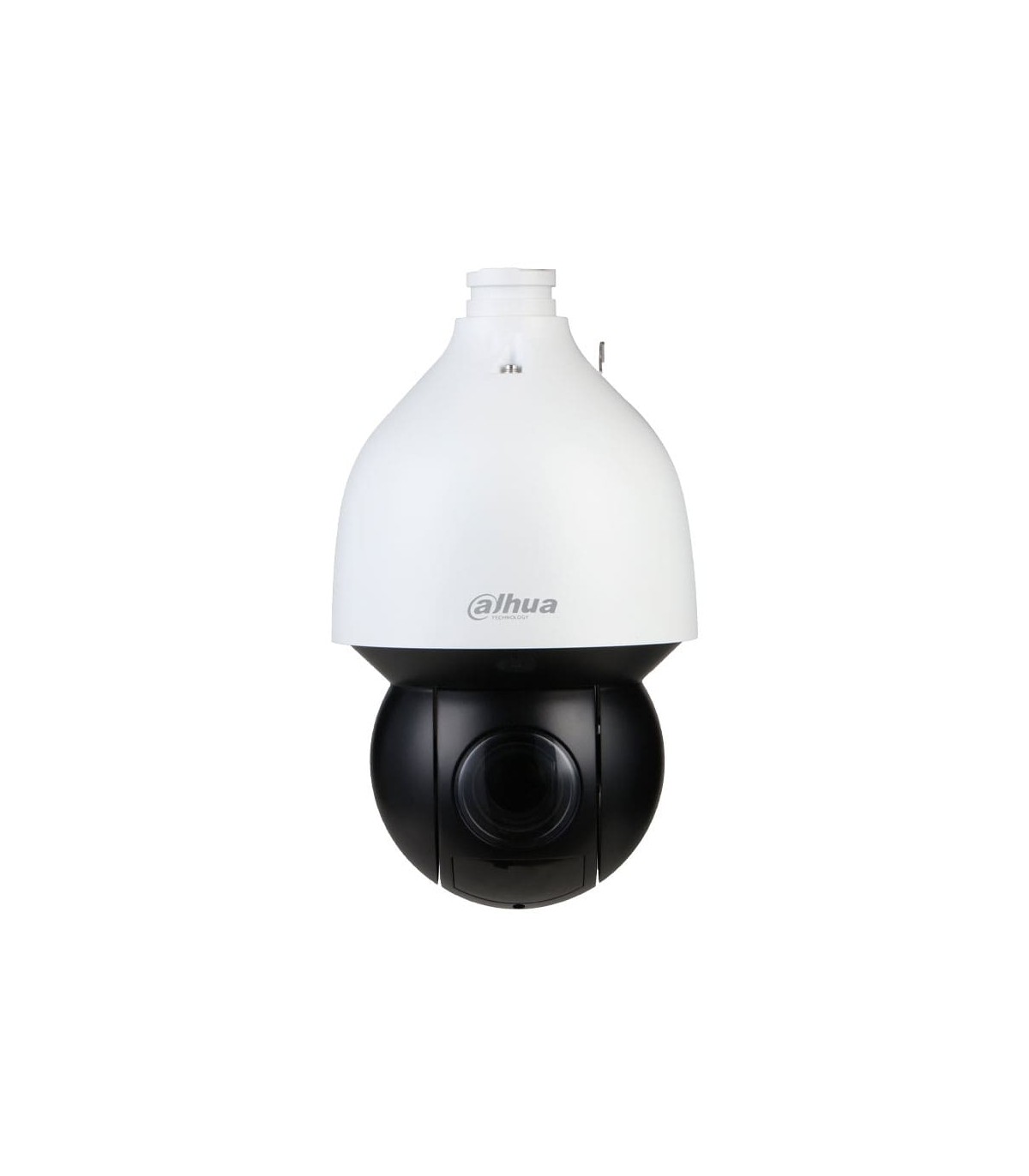

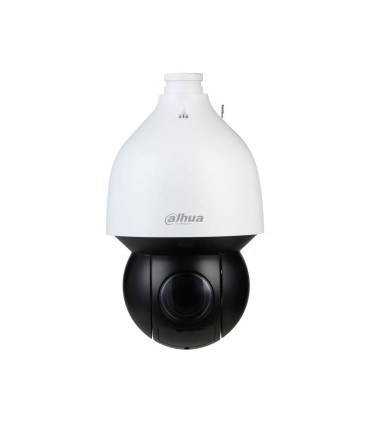

SD5A445GB-HNR - Telecamera IP dome PTZ WizSense da 4 MP
Dahua WizSense IP PTZ Dome
4 MP a 25/30 ips, Smart H.265+
ICR, 0,005/0,0005 lux, Smart IR 150 m
Zoom ottico 45X (3,95~177,75 mm)
WDR 120 dB, 2D/3D-DNR, ROI
Panoramica e inclinazione: 360° a 300°/s (O); 90° a 200°/s (V); 300 preset
Protezione perimetrale, rilevamento volti, SMD e autotracking
1 ingresso audio / 1 uscita audio
2 ingressi allarme / 1 uscita allarme
Slot MicroSD, RJ45, Onvif, IP67, IK10, PoE+
Include staffa e alimentatore.
1/2.8" Sony Starvis™ 4 megapixel CMOS image sensor
Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG video compression
Resolution: 4MP (2560x1440), 3MP (2048x1536), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 4MP, 3MP, 1080P, 1.3MP, 720P (1~25/30 ips)
Stream 2: D1, VGA, CIF (1~25/30 fps)
Stream 3: 1080P, 1.3MP, 720P (1~25/30 fps)
Day/Night Mode with removable mechanical filter
0.005 lux F1.6 (colour), 0.0005 lux F1.6 (B/W), 0 lux IR On
Smart IR: 4 IR leds, up to 150 metres
45X optical zoom: 3.95 ~ 177.75 mm
Angle of view: 65.7°~1.9°(H), 39.4°~1.1°(V), 73.1°~2.1°(D)
Auto, semi-automatic and manual focus control
Auto and manual iris control
16X digital zoom
Picture modes: BLC, HLC, WDR 120dB, 2D/3D-NR, EIS, digital Defog
White balance with 8 modes
Automatic and manual gain control
Supports videosensor and regions of interest (ROI)
Privacy masking up to 24 zones with 8 zones on one display
Perimeter protection: Line crossing, intrusion, fence climbing, loitering detection, abandoned/missing object, fast motion, parking detection, people gathering, vehicle/person alarm classification, link tracking
Face detection and SMD
Auto-tracking available
Horizontal positioner: 0° ~ 360° continuous
Vertical positioner: -15° ~ 90°, with 180° autoflip
Manual speed: 0.1° ~ 300°/sec (H), 0.1° ~ 200°/sec (V)
Preset speed: 400°/sec (H), 300°/sec (V)
300 presets, DH-SD and Pelco-D/P protocols with automatic recognition
8 rounds (up to 32 presets per round)
5 patterns and 5 scans
1 audio input / 1 audio output
2 alarm inputs / 1 alarm output
MicroSD card slot for up to 512GB (card not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP
ONVIF S/G/T, P2P, CGI, SDK, API support
Compatible with IOS and Android devices
Up to 20 users
DSS, DMSS management software
Power: 24V AC, 2.5A / PoE+ (802.3at)
Power consumption: 10W (basic), 22W (maximum)
Operating conditions: -40°C ~ +70°C, humidity <95%.
IP67 degree of protection
Vandal-proof IK10
Lightning-proof 6KV
Dimensions: Ø190 x 332 (H) mm
Weight: 4,7 kg
Including wall bracket and power supply
