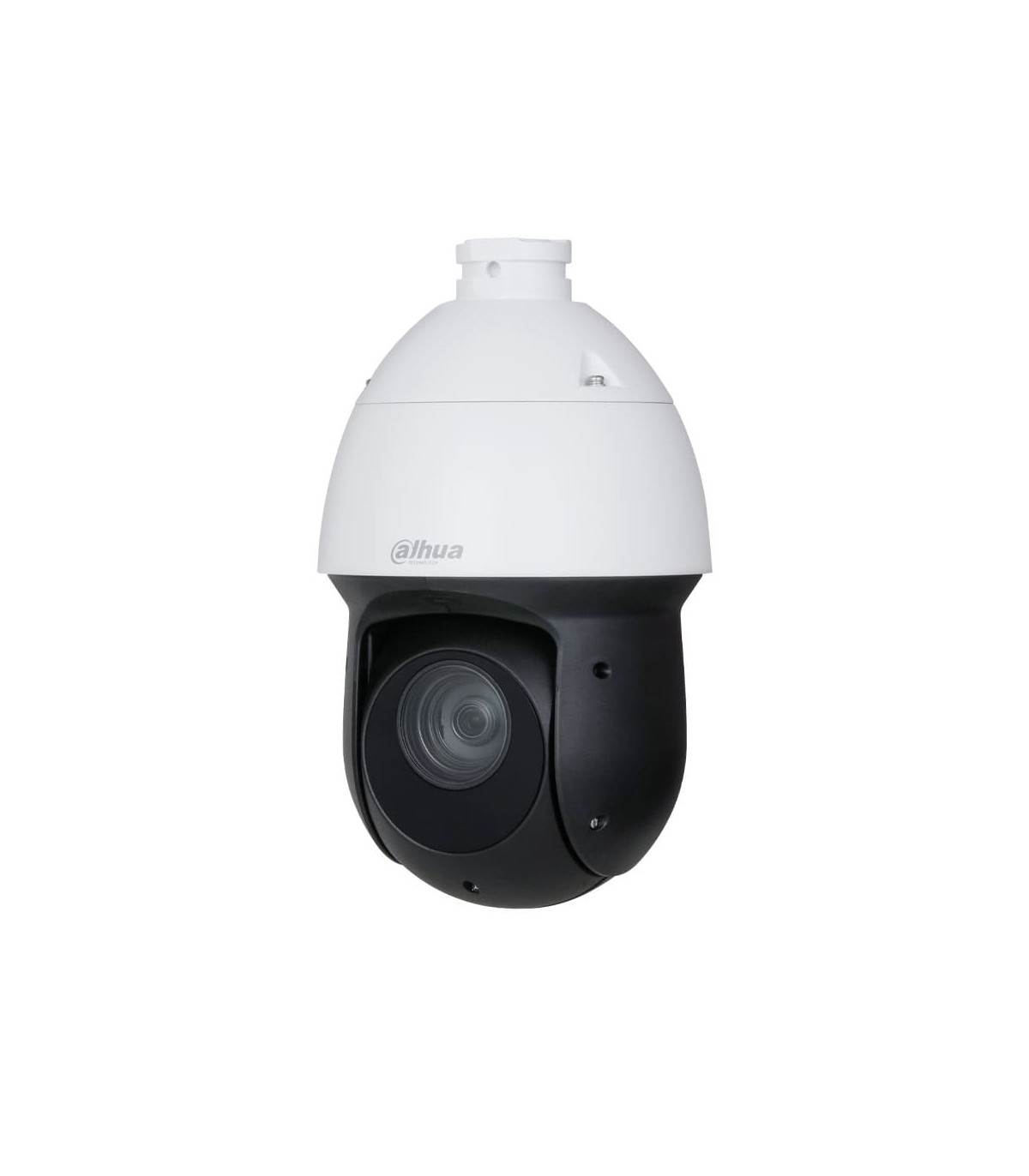

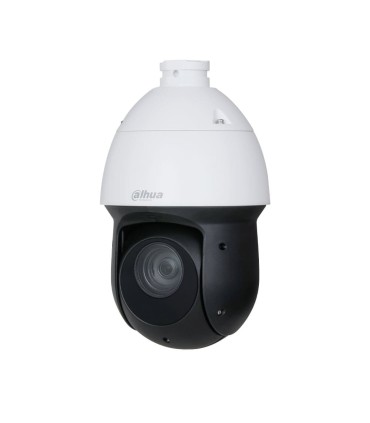

SD49425GB-HNR - Telecamera IP dome PTZ WizSense da 4 MP
Dahua WizSense IP PTZ Dome
4 MP a 25/30 ips, Smart H.265+
ICR, 0,005/0,0005 lux, Smart IR 100 m
Zoom ottico 25X (5~125 mm)
WDR 120 dB, 2D/3D-DNR, ROI
Panoramica e inclinazione: 360° a 200°/s (O); 90° a 120°/s (V); 300 preset
Protezione perimetrale, rilevamento volti, SMD 4.0
1 ingresso audio / 1 uscita audio
2 ingressi allarme / 1 uscita allarme
Slot MicroSD, RJ45, Onvif, IP66
12 V CC / PoE+
Supporto incluso
Alimentatore non incluso.
1/2.8" Sony Starvis™ 4 megapixel CMOS image sensor
Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG video compression
Resolution: 4MP (2560x1440), 3MP (2048x1536, 2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
Stream 1: 4MP, 3MP, 1080P, 1.3MP, 720P (1~25/30 ips)
Stream 2: D1, CIF (1~25/30 fps)
Stream 3: 1080P, 1.3MP, 720P (1~25/30 fps)
Day/Night mode with removable mechanical filter
0.005 lux F1.6 (colour), 0.0005 lux F1.6 (B/W), 0 lux IR On
Smart IR: 4 IR leds, up to 100 metres
25X optical zoom: 5 ~ 125 mm
Angle of view: 53.1°~3.4°(H), 30.4°~1.9°(V), 59.3°~3.9°(D)
Auto, semi-automatic and manual focus control
Auto iris control
16X digital zoom
Picture modes: BLC, HLC, WDR 120dB, 2D/3D-NR, EIS (image stabiliser), Digital
Defog
White balance with 8 modes
Automatic and manual gain control
Supports videosensor and regions of interest (ROI)
Privacy masking of up to 24 zones with 8 zones on one display
Perimeter protection: Line crossing, intrusion, fence climbing, loitering detection, abandoned/missing object, fast motion, parking detection, people gathering, vehicle/person alarm classification
Face detection with extraction of 6 attributes and 8 expressions
SMD 4.0 smart motion detection
Horizontal positioner: 0° ~ 360° continuous
Vertical positioner: -15° ~ 90°, with 180° autoflip
Manual speed: 0.1° ~ 200°/sec (H), 0.1° ~ 120°/sec (V)
Preset speed: 240°/sec (H), 200°/sec (V)
300 presets, DH-SD and Pelco-D/P protocols with automatic recognition
8 rounds (up to 32 presets per round)
5 patterns and 5 scans
1 audio input / 1 audio output
2 alarm inputs / 1 alarm output
MicroSD card slot for up to 512GB (card not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP
ONVIF (S/G/T), P2P, RTMP, CGI, SDK support
Compatible with IOS and Android devices
IE, Chrome and Firefox browser support
Up to 20 users
DSS, DMSS management software
Power: 12V DC, 3A (±10%) / PoE+ (802.3at)
Power consumption: 9W (basic), 20W (maximum)
Operating conditions: -40°C ~ +70°C, humidity <95%.
IP66 degree of protection
Lightning-proof 6KV
Dimensions: Ø160 x 270.4 (H) mm
Gross weight: 3.9 kg
Net weight: 2.4 kg
Wall bracket included
No power supply included
