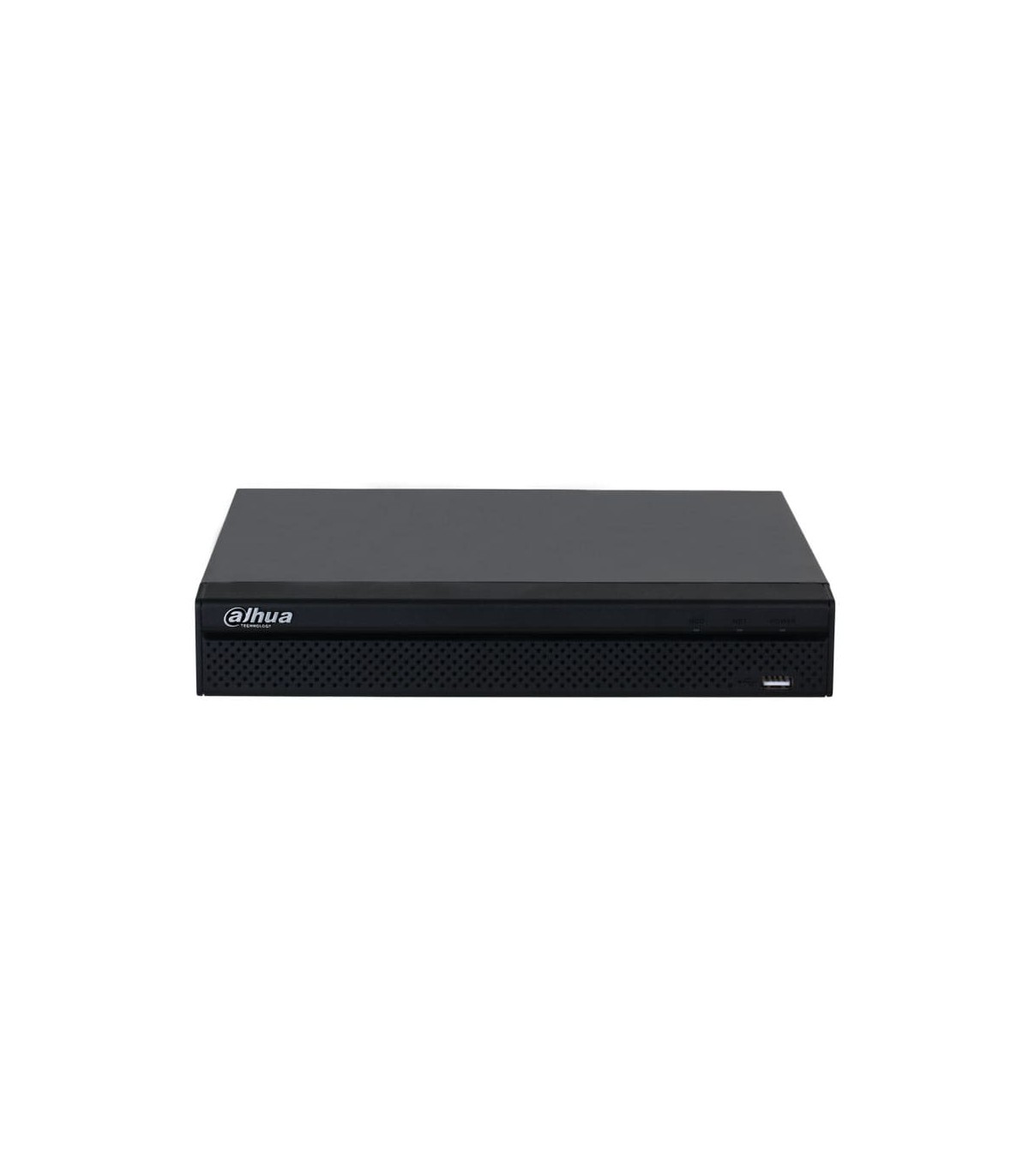

NVR2104HS-P-4KS3 - Registratore IP a 4 canali, 4 porte PoE

4 IP channels

Video compression: Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG.

Simultaneous HDMI (4K) and VGA (1080P) video outputs

Output division: 1, 4

1 input / 1 output RCA audio

Audio compression: G.711a, G.711u, PCM, G726

Recording resolution: 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1

Bandwidth: 80 Mbps input, 80 Mbps for recording and 60 Mbps for output

Decoding capability with AI disabled:

1 channel at 12MP (30 fps)

1 channel at 8MP (30 fps)

2 channels at 5MP (30 fps)

3 channels at 4MP (30 fps)

6 channels 1080P (30 fps)

AI-enabled decoding capability:

1 channel at 8MP (30 fps)

1 channel at 5MP (30 fps)

2 channels at 4MP (30 fps)

4 channels 1080P (30 fps)

General, motion detection, intelligence, alarm, alarm recording modes

Alarm by videosensor, external camera alarm, PIR alarm

Artificial Intelligence from intelligent cameras:

Perimeter protection: 4 channels

SMD Plus: 4 channels

Artificial Intelligence in the recorder:

SMD Plus: 4 channels

Playback of up to 4 channels

Internal capacity for 1 SATA HDD up to 20TB (sold separately)

4 PoE+ (802.3af/at) 10/100Mbps ports

RJ45 Fast Ethernet network port (10/100Mbps)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filtering, DDNS, IP Search (supports IP cameras, DVR, NVS, etc.), P2P, Auto Logging

ONVIF 22.12 (T/S/G), CGI and SDK support

Compatible with Chrome, IE, Safari, Edge, Firefox web browsers

Compatible with Android and iOS devices

Server Access local network and Internet

Ability to limit user access to cameras in local and/or remote mode

Can be remotely controlled via Joystick keyboard connected by TCP/IP

Sending of eMails with photo attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and to be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 2 USB 2.0 ports

Power supply: 53V DC, 1.22A

NVR Consumption: ≤10W (excluding disks)

PoE Consumption: 36W (max. 25.5W on one PoE port)

Storage temperature from -20°C ~ +60°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10%~93% (non-condensing)

Dimensions: 260 (W) x 47.6 (H) x 232.5 mm (1.5 in)

Net weight: 850 g

Gross weight: 1.85 kg

Rack or desktop installation
