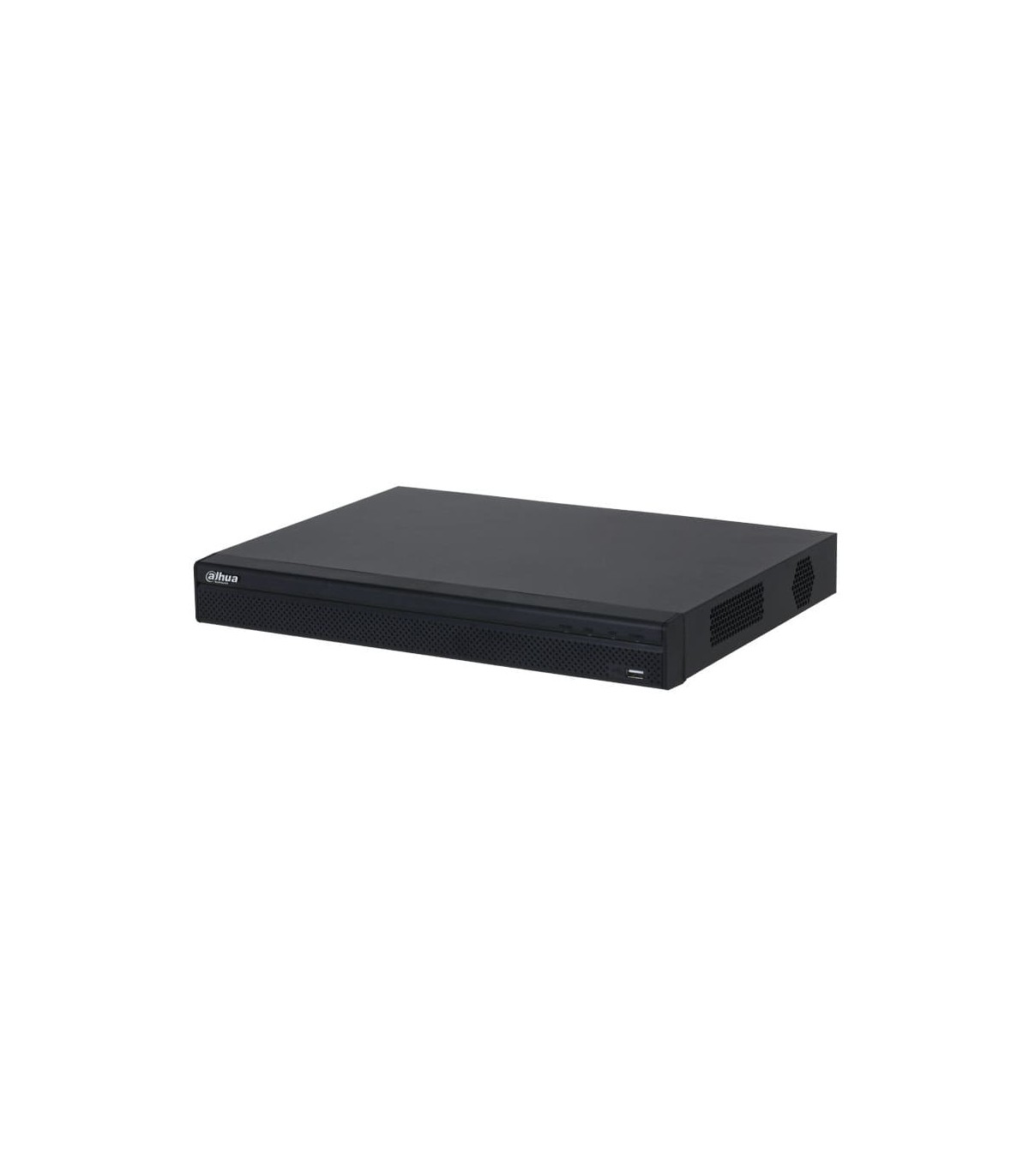

NVR4204-P-4KS3 - Registratore IP a 4 canali, 4 porte PoE

4 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264

Simultaneous video outputs HDMI (4K) and VGA (1080P)

Output division: 1, 4

1 input / 1 output RCA audio

Audio compression: PCM, G.711a, G.711u, G726

Recording resolution: 12MP, 8MP, 6MP, 5MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF, QCIF

Bandwidth: 80 Mbps input, 80 Mbps for recording, 60 Mbps output

Decoding capability with AI disabled:

1 channel at 12MP (30 fps)

2 channels at 8MP (30 fps)

3 channels at 5MP (30 fps)

4 channels at 4MP (30 fps)

AI enabled decoding capability:

1 channel at 12MP (30 fps)

1 channel at 8MP (30 fps)

2 channels at 5MP (30 fps)

3 channels at 4MP (30 fps)

Recording modes general, motion detection, intelligence, alarm

Alarm by videosensor, privacy mask, video loss, scene change, PIR alarm, external camera

Artificial Intelligence from intelligent cameras: Perimeter protection (4-channel), Face detection (4-channel), Face recognition (4-channel), SMD Plus (4-channel)

Artificial Intelligence in the recorder: SMD Plus (4 channels)

Playback of up to 4 channels

4 alarm inputs / 2 alarm outputs

Internal capacity for 2 SATA HDD up to 20TB (sold separately)

RJ45 Fast Ethernet network port (10/100Mbps)

Network protocols: HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, IP Search (Supports IP camera, DVR, NVS, etc.), P2P, Auto Registration

ONVIF 22.12 (T/S/G), CGI and SDK support

Compatible with web browsers

Compatible with Android and iOS devices

Server Access local network and Internet

Ability to limit user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected by TCP/IP

Sending of eMails with photograph attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and to be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 2 USB 2.0 ports

4 PoE+ ports (10/100Mbps, 802.3 af/at)

48W total PoE delivery

Power supply: 53V DC, 1.81A

Consumption: ≤10W (excluding disks)

Storage temperature from -20°C ~ +60°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10%~93%.

Dimensions: 375 (W) x 53 (H) x 282.9 mm (W) x 53 (H) x 282.9 mm (2.5")

Net weight: 1.56 kg

Gross weight: 2.95 kg

Rack or desktop installation
