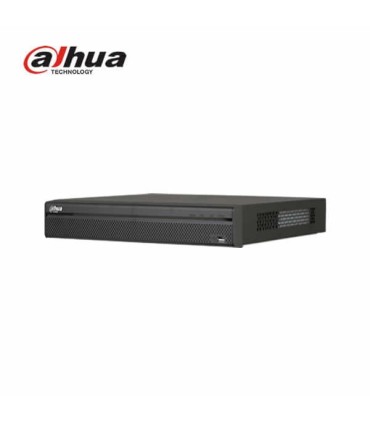

NVR5216-16P-EI - Registratore IP a 16 canali, 16 PoE

16 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

HDMI (4K) and VGA (1080P) simultaneous video outputs

Main display output division: 1, 4, 8, 9, 9, 16

Secondary display output split: 1, 4, 8, 8, 9, 16

1 RCA audio input / 1 RCA audio output

Audio compression: PCM, G.711a, G.711u, G726

Recording resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080P, 720P, D1, CIF, QCIF

Bandwidth with AI off: 384 Mbps input, 384 Mbps for storage and 384 Mbps for output

AI bandwidth on: 200 Mbps input, 200 Mbps storage, 200 Mbps output

AI off decode capacity: 16 channels 4MP (30 ips), 12 channels 5MP (30 ips), 8 channels

8MP (30 ips), 5 channels 12MP (30 ips), 4 channels 16MP (30 ips), 2 channels 24MP (20 ips), 2 channels 32MP (20 ips)

Decoding capacity with AI enabled: 12 channels 4MP (30 fps), 8 channels 5MP (30 fps), 4 channels 8MP (30 fps), 4 channels 12MP (30 fps), 2 channels 16MP (30 fps), 1 channel 24MP (20 fps), 1 channel 32MP (20 fps)

General, motion detection, intelligence, alarm and POS (POS) recording modes

Alarm by video sensor, privacy mask, local alarm

Artificial Intelligence from NVR:

Face detection: 2 channels, 12 face images per channel

Facial recognition: 16 channels

Perimeter protection: 4 channels, 10 IVS rules per channel SMD Plus: 8 channels

Artificial Intelligence from camera:

Face detection: 16 channels

Face recognition: 16 channels

Video metadata: 8 channels, classification of people, motorized vehicles and non-motorized vehicles

Perimeter protection: 16 channels

SMD Plus: 16 channels

Stereo analysis

Crowd distribution

People counting

ANPR: 8 channels, database of 20 000 number plates

Vehicle density

Heat map

Playback of up to 16 channels

4 alarm inputs / 2 alarm outputs

Internal capacity for 2 SATA HDD up to 16TB (sold separately)

New user interface for a simpler user experience

Supports perimeter protected IP cameras and SMD Plus compatible IP cameras

RJ45 Fast Ethernet network port (10/100/1000Mbps)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filtering, PPPoE, FTP, DDNS, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVSs, etc.), Multicast, P2P, Auto Logging

ONVIF 21.12 (Profile T/S/G), CGI and SDK support

Compatible with Chrome, IE9+, Firefox browsers

Compatible with Android and iOS devices

Server Access local network and Internet

Ability to limit user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected via TCP/IP

Sending of eMails with photograph attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and to be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication Ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS232 port, 1 RS485 port

16 PoE ports (10/100Mbps, ports 1 to 8 support ePoE)

130W PoE delivery

Power supply: 100V ~ 240V AC, 47/63Hz

Power consumption: ≤10W (excluding disks)

Storage temperature from -20°C ~ +60°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10%~93%.

Dimensions: 375 (W) x 53 (H) x 329 mm

Weight: 2.66 kg

Size 1U, desktop
