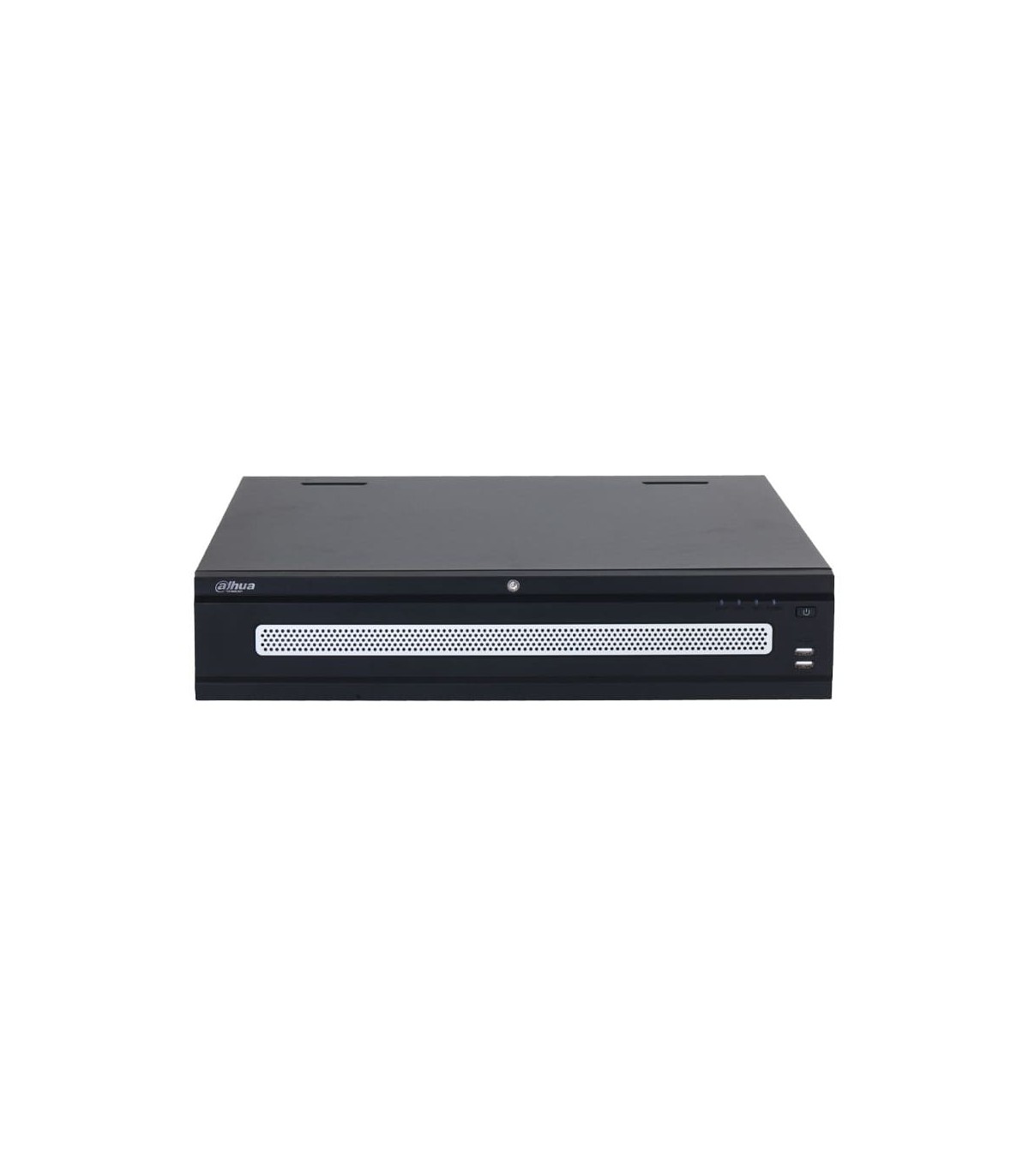

NVR608H-64-XI - NVR IP Dahua a 64 canali

64 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

4 HDMI video outputs (HDMI1/2 4K, HDMI3 8K, HDMI4 1080P) and 2 VGA outputs (1080P)

Primary display output division: 1, 4, 8, 8, 9, 16, 25, 36, 64

Secondary display output division: 1, 4, 8, 9, 16, 25, 36

1 RCA input / 2 RCA audio outputs

Bi-directional audio via RCA input / RCA output

Recording resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080P, 720P, D1

Bandwidth with AI disabled: 1024 Mbps incoming, 1024 Mbps recording, 800 Mbps outgoing

Bandwidth with AI enabled: 512 Mbps incoming, 512 Mbps recording, 400 Mbps outgoing

Real-time decoding capacity (30 fps): 2 channels at 32MP, 2 channels at 24MP, 4 channels at 16MP, 8 channels at 8MP, 16 channels at 4MP, 32 channels at 1080P, 72 channels at 720P, 160 channels at D1

Manual, calendar, alarm, motion detection, motion detection recording modes

Video sensor alarm, masking alarm, video loss alarm, scene change alarm, PIR alarm, IP camera

Playback of up to 16 channels

16 alarm inputs / 8 alarm outputs

Internal capacity for 8 SATA III HDDs up to 16TB (sold separately)

eSATA port

IA port on the recorder:

Perimeter protection of up to 24 channels with 10 IVS rules per channel

Face detection with up to 4-channel attributes and up to 12 images per second per channel

Face recognition with attributes up to 4 channels, up to 12 images per second and up to 40 databases with 300 000 images

SMD Plus up to 32 channels with filtering between persons and vehicles

Video metadata with person and vehicle attributes up to 8 channels

AI support from compatible cameras:

Supports up to 64 cameras with perimeter protection.

Supports up to 64 cameras with face detection

Supports up to 64 cameras with face recognition

Supports up to 64 cameras with SMD Plus

Support up to 32 cameras with video metadata

Supports up to 32 ANPR cameras (up to 20,000 whitelists/blacklists)

Watermarking to preserve video integrity

2 RJ45 Fast Ethernet network ports (10/100/1000/2500Mbps)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, IP Search (Supports Dahua IP cameras, DVR, NVS, etc.),

Multicast, P2P, Auto Logging, ISCSI

ONVIF (S/G/T), SDK, CGI support

Remote access from web browser, iOS and Android devices

Server Access local network and Internet

Possibility to limit user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected by TCP/IP

Sending of eMails with photo attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and to be connected to video surveillance receiver software.

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 2 USB 3.0 ports, 2 USB 2.0 ports, 1 RS485 port, 1 RS232 port

Power supply: 100V ~ 240V AC, 50/60Hz

Power consumption: ≤18W (excluding disks)

Operating temperature from -10°C ~ +55°C

Dimensions: 440 (W) x 94,9 (H) x 458,4 mm

Weight: 6.4 kg

Desktop or 2U rackmount installation
