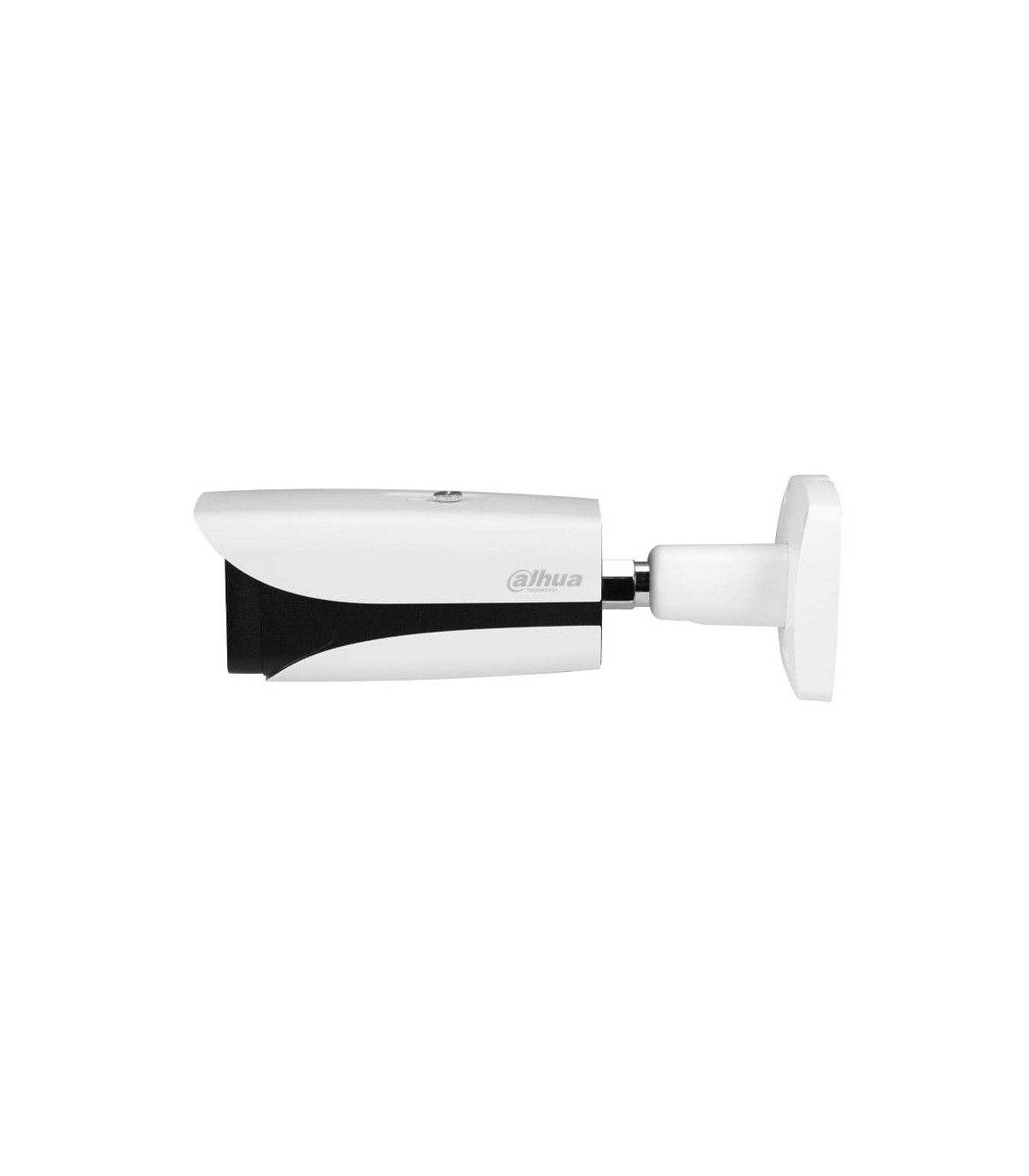

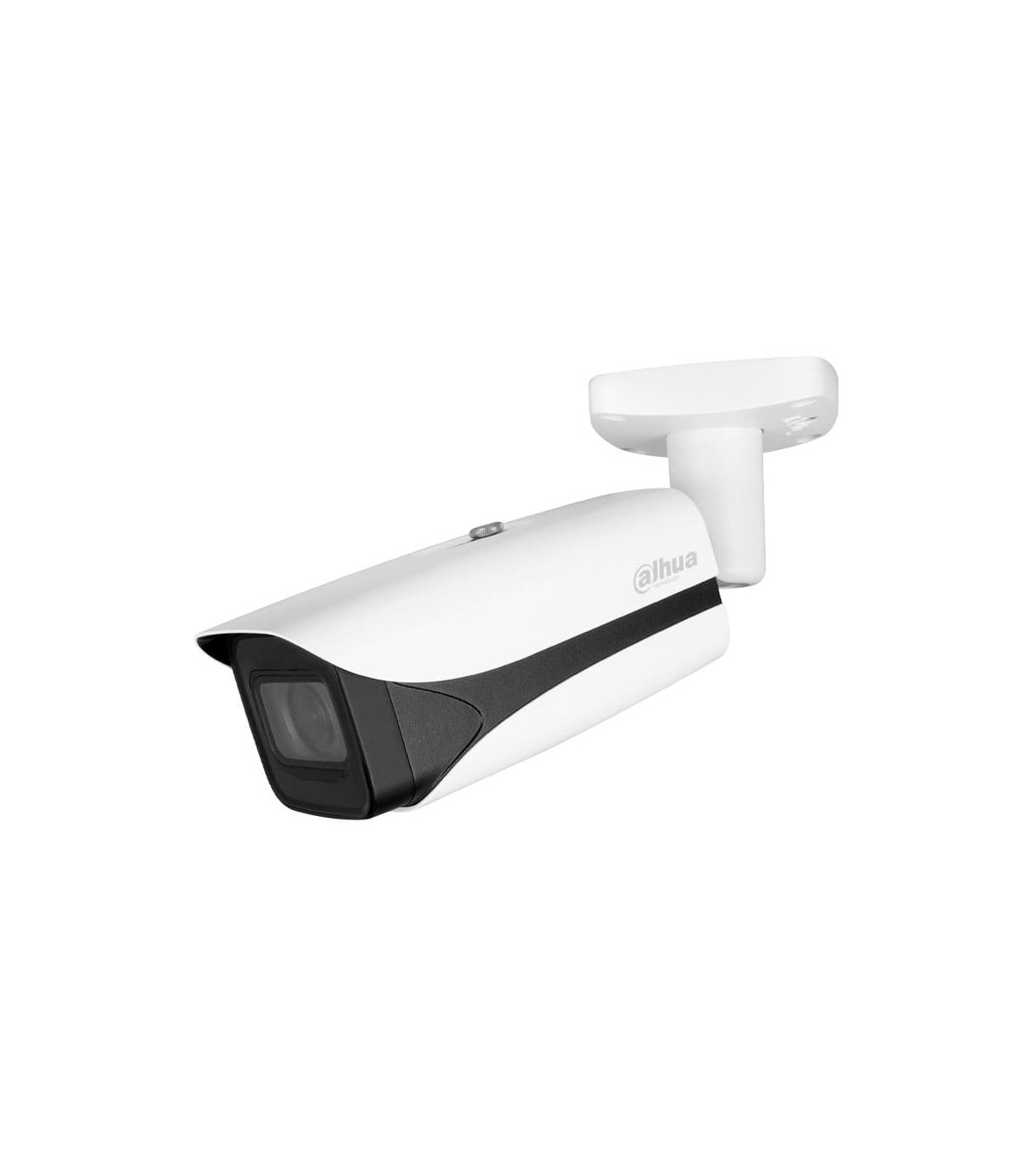

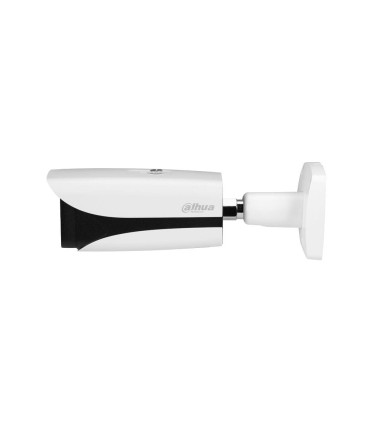

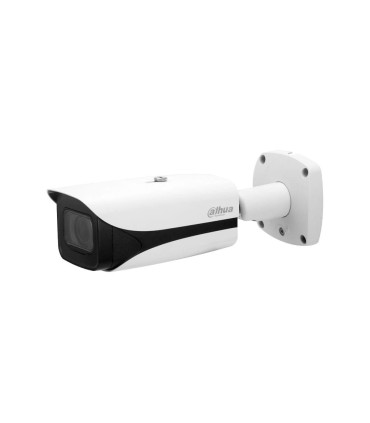

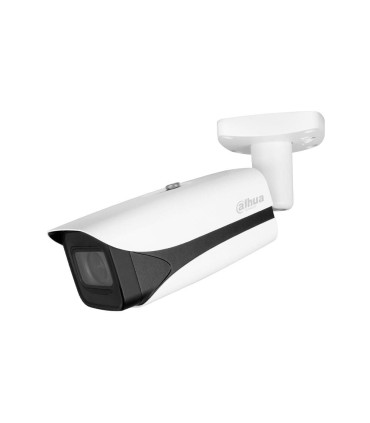

IPC-HFW5541E-ZE-S3 - Telecamera IP esterna WizMind da 5 MP

5-megapixel 1/2.7" CMOS sensor

Compression Formats: AI H.265, Smart H.265+, Smart H.264+, H.265, AI H.264, H.264, H.264, MJPEG

Digital Resolution: 5MP (2960x1668; 2880x1620), 4MP (2688x1520), 3.6MP (2560x1440), 3MP (2048x1535, 2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)

Stream 1: 5MP (1~25/30 ips)

Stream 2: D1 (1~25/30 fps)

Stream 3: 1080P (1~25/30 fps)

Stream 4: 720P (1~25/30 fps)

Day/night mode with removable mechanical filter (ICR)

Smart IR: 4 leds, 60 meters

0.0009 lux F1.5 (color), 0.0005 lux F1.5 (B/W), 0 lux IR On

2.7~13.5 mm motorized optics

Angle of view: 114°~32°(H), 58°~17°(V), 138°~36°(D)

Imaging modes: BLC, HLC, WDR 120dB, SSA, 3D-NR, EIS (image stabilizer), Mirror, Defog.

White balance with 6 modes

Automatic gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 8-zone privacy masking

Perimeter protection: Cross-line detection, intrusion detection, fast motion detection (all three functions have person and vehicle classification), loitering detection, people gathering and parking detection

Intelligent detection of abandoned objects, missing objects, etc.

SMD 3.0: Less false alarms, longer detection distance

Support heat map

Face detection with extraction of up to 6 attributes and 8 facial expressions

People counting: Cross-line people counting, generation, area people counting and queue management

Video metadata

Intelligent sound detection

Built-in microphone

1 input / 1 output RCA audio

2 alarm inputs / 1 alarm output

MicroSD card slot up to 512GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

ONVIF (Profile S/G/T), CGI, SDK and API support

Up to 20 users

Remote viewing through browsers

Smart PSS Lite, DSS, DMSS, Smart PSS Lite management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af) / ePoE

Maximum power consumption: 10.4W (12V), 13W (PoE)

Storage temperature from -40°C ~ +60°C

Storage relative humidity: 10% ~ 95%

Operating temperature from -30°C ~ +60°C

Operating relative humidity: <95%.

IP67 degree of protection

Vandal protection IK10

Metal housing

Dimensions: 95 (W) x 95 (H) x 273,2 mm

Gross weight: 1.66 kg

Net weight: 1.12 kg

3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(ROTATION)
