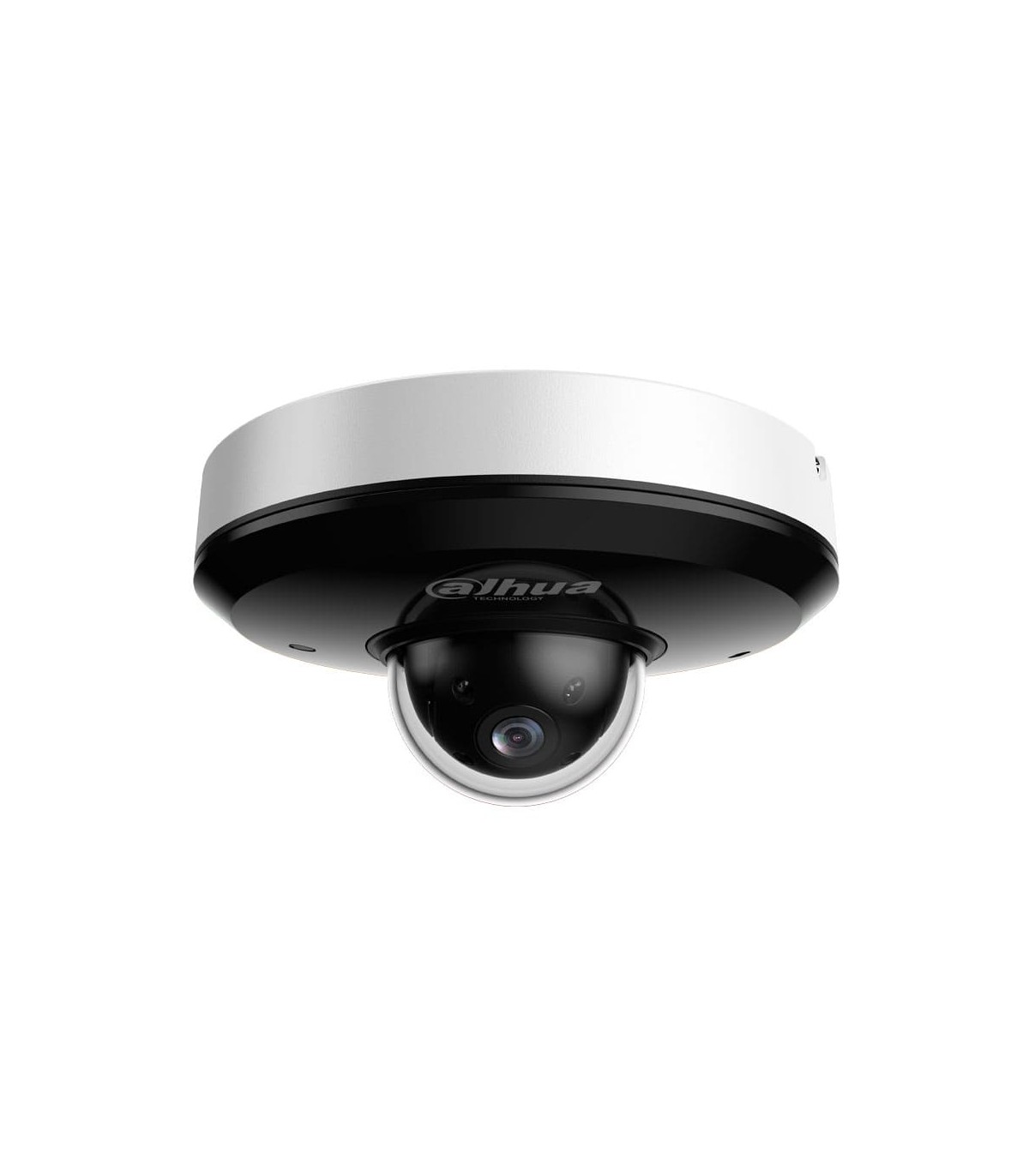

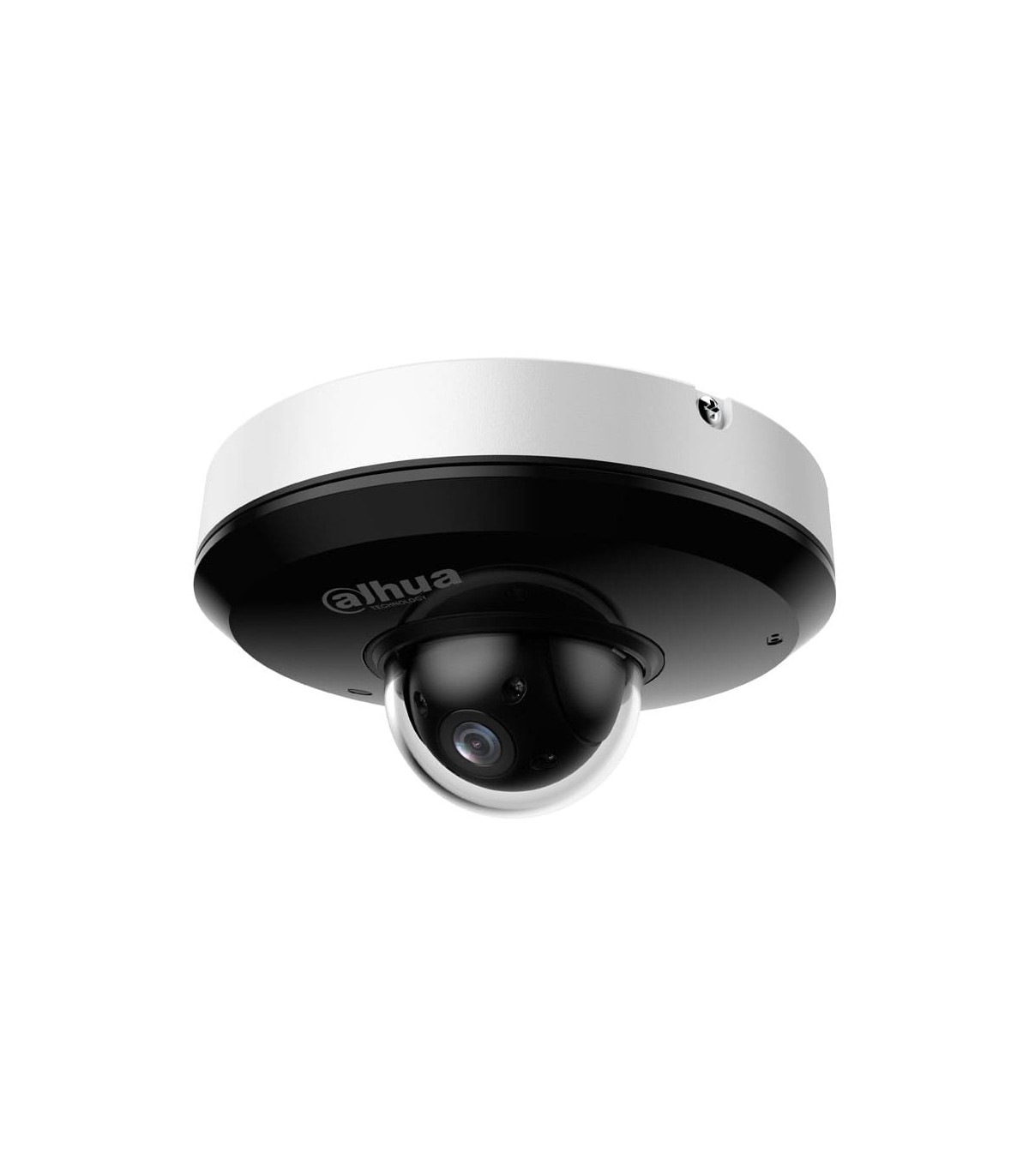

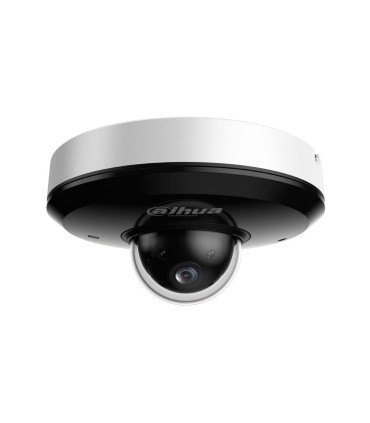

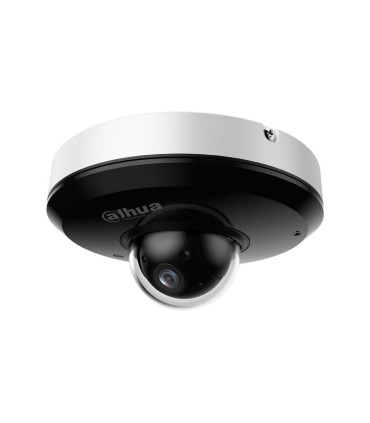

SD1A404DB-GNY - Telecamera dome IP PTZ da esterno WizSense da 4 MP
Dahua WizSense IP PTZ Dome
4 MP a 25/30 ips, Smart H.265+
ICR, 0,005/0,0005 lux, Smart IR 20 m
Zoom ottico 4X (2,8~12 mm)
WDR 120 dB, 2D/3D-DNR, ROI
Panoramica e inclinazione: 355° a 70°/s (O); 90° a 30°/s (V); 300 preset
Protezione perimetrale, rilevamento volti, conteggio persone, SMD 3.0
1 ingresso audio / 1 uscita audio
Slot MicroSD, RJ45, Onvif, IP66, IK08
12 V CC / PoE
1/2.8" 4 megapixel CMOS
Video compression Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG
Resolution: 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576, 704x480), VGA (640x480), CIF (352x288, 352x240)
Stream 1: 4MP, 3MP, 1080P, 1.3MP, 720P (1~25/30 ips)
Stream 2: D1, VGA, CIF (1~25/30 fps)
Stream 3: 720P (1~25/30 ips)
Day/night mode with removable mechanical filter
0.005 lux F1.8 (color), 0.0005 lux F1.8 (B/W), 0 lux IR On
Smart IR: 3 IR leds, up to 20 meters
4X optical zoom: 2.8 ~ 12 mm
Angle of view: 90.6°~47.3°(H), 49.1°~26.7°(V), 107.4°~5.8°(D)
Auto, semi-automatic and manual focus control
Fixed iris control
16X digital zoom
Image modes: BLC, HLC, WDR 120dB, 2D/3D-NR, EIS (image stabilizer), Digital Defog.
White balance with 8 modes
Gain control: automatic, manual, gain priority
Supports videosensor and regions of interest (ROI)
Perimeter protection: Line crossing and intrusion detection with classification of people and vehicles, fence crossing detection, loitering detection, missing object detection, and security detection.Loitering detection, missing/abandoned objects, fast motion detection, parking detection, people gathering detection, etc.
Supports face detection, snapshot and face enhancement; Supports face cropping: Face, one-inch photo; Capture strategies include real-time capture and quality priority
Supports people counting, calculation of the number of people in the area, and queue management
SMD 3.0
Horizontal positioner: 0° ~ 355° ~ 355°; Horizontal positioner: 0° ~ 355° ~ 355
Vertical positioner: 5° ~ 90°.
Manual speed: 0.1° ~ 70°/sec (H), 0.1° ~ 30°/sec (V)
Preset speed: 80°/sec (H), 40°/sec (V)
300 presets, DH-SD protocol
8 rounds (up to 32 presets per round)
1 audio input / 1 audio output
MicroSD card slot for up to 512GB (card not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP
ONVIF S/G/T, RTMP, CGI, SDK, ONVIF S/G/T support
Compatible with IOS and Android devices
Compatible with IE, Chrome, Firefox, Safari browsers
Up to 20 users
DSS Pro, DMSS management software
Power: 12V DC, 2A / PoE (802.3af)
Power consumption: 4W (basic), 13W (maximum)
Operating temperature from -30°C ~ +60°C
Operating relative humidity ≤95%.
IP66 degree of protection
Vandal-proof IK08
Lightning-proof 6KV
Dimensions: Ø128 x 65,4 (H) mm
Net weight: 500 g
Gross weight: 700 g
