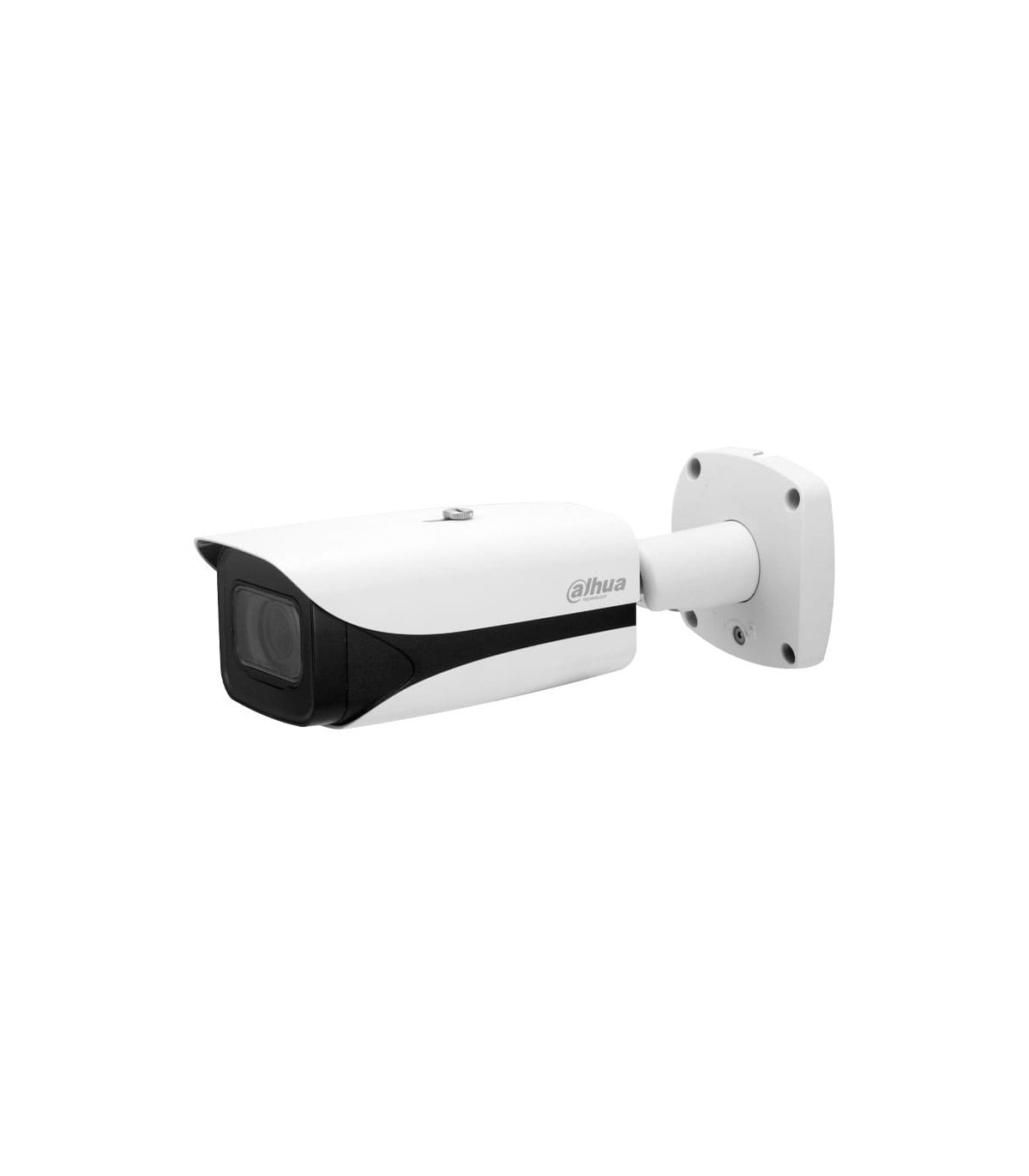

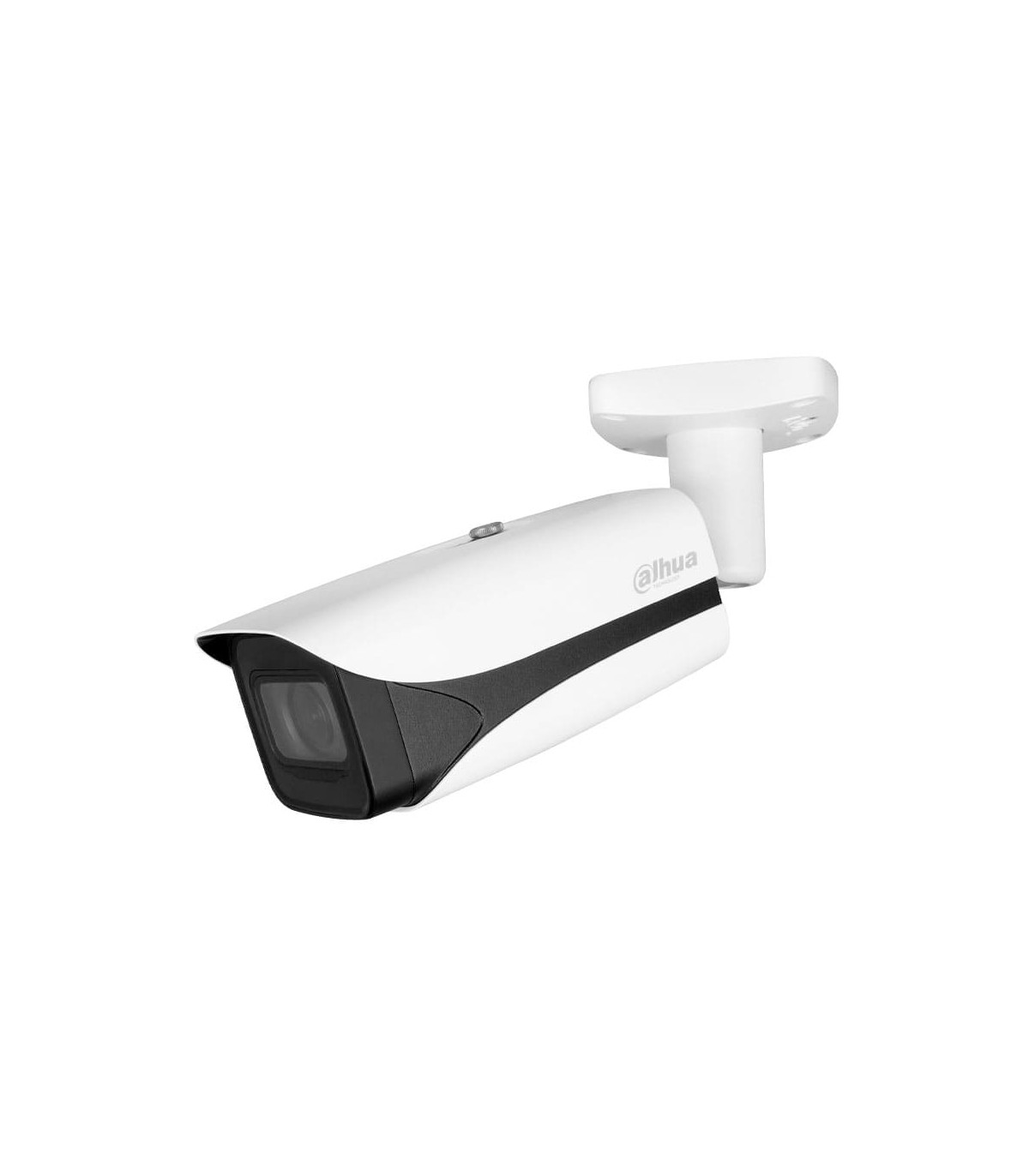

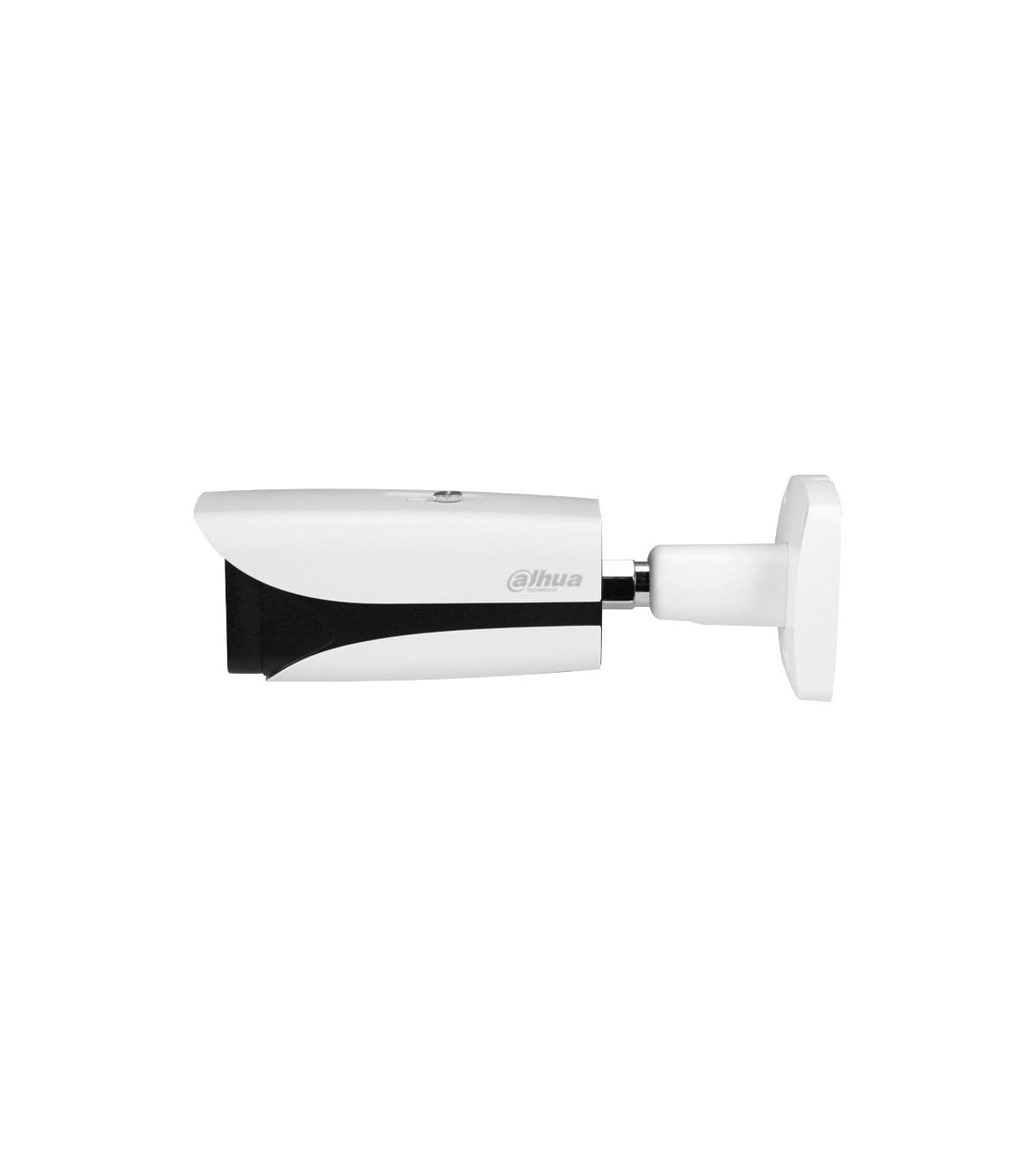

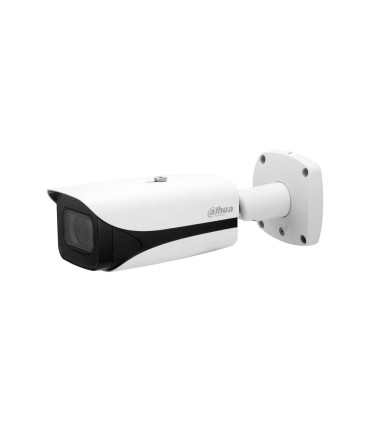

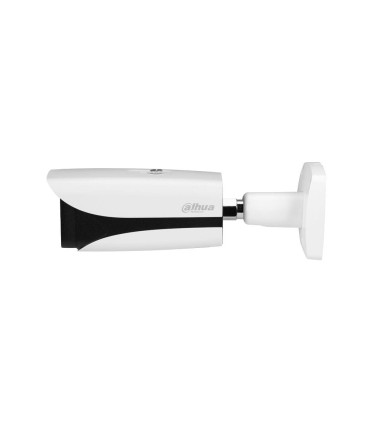

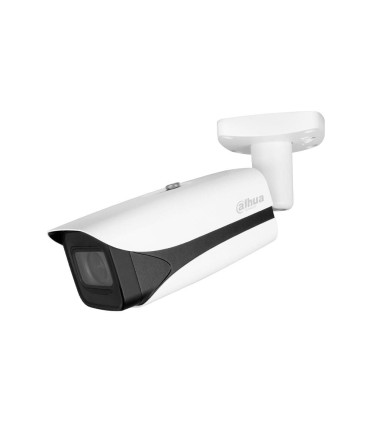

IPC-HFW5541E-ZE-S3 - WizMind 5MP outdoor IP camera
Dahua WizMind IP Camera
5MP@25/30ips, AI-H.265+/Smart265+
ICR, 0.0009/0.0005 lux, Smart IR 60m
2.7~13.5mm motorized optics
WDR 120dB, 4 ROI
Perimeter protection, face detection, people counting, heat map
Incorporates microphone and 1 input / 1 audio output
2 inputs / 1 alarm output
MicroSD slot, RJ45, Onvif, IP67, IK10
12V DC / PoE / ePoE
5-megapixel 1/2.7" CMOS sensor
Compression Formats: AI H.265, Smart H.265+, Smart H.264+, H.265, AI H.264, H.264, H.264, MJPEG
Digital Resolution: 5MP (2960x1668; 2880x1620), 4MP (2688x1520), 3.6MP (2560x1440), 3MP (2048x1535, 2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 5MP (1~25/30 ips)
Stream 2: D1 (1~25/30 fps)
Stream 3: 1080P (1~25/30 fps)
Stream 4: 720P (1~25/30 fps)
Day/night mode with removable mechanical filter (ICR)
Smart IR: 4 leds, 60 meters
0.0009 lux F1.5 (color), 0.0005 lux F1.5 (B/W), 0 lux IR On
2.7~13.5 mm motorized optics
Angle of view: 114°~32°(H), 58°~17°(V), 138°~36°(D)
Imaging modes: BLC, HLC, WDR 120dB, SSA, 3D-NR, EIS (image stabilizer), Mirror, Defog.
White balance with 6 modes
Automatic gain control
Supports 4-zone videosensor, 4 regions of interest (ROI) and 8-zone privacy masking
Perimeter protection: Cross-line detection, intrusion detection, fast motion detection (all three functions have person and vehicle classification), loitering detection, people gathering and parking detection
Intelligent detection of abandoned objects, missing objects, etc.
SMD 3.0: Less false alarms, longer detection distance
Support heat map
Face detection with extraction of up to 6 attributes and 8 facial expressions
People counting: Cross-line people counting, generation, area people counting and queue management
Video metadata
Intelligent sound detection
Built-in microphone
1 input / 1 output RCA audio
2 alarm inputs / 1 alarm output
MicroSD card slot up to 512GB (not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
ONVIF (Profile S/G/T), CGI, SDK and API support
Up to 20 users
Remote viewing through browsers
Smart PSS Lite, DSS, DMSS, Smart PSS Lite management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC / PoE (802.3af) / ePoE
Maximum power consumption: 10.4W (12V), 13W (PoE)
Storage temperature from -40°C ~ +60°C
Storage relative humidity: 10% ~ 95%
Operating temperature from -30°C ~ +60°C
Operating relative humidity: <95%.
IP67 degree of protection
Vandal protection IK10
Metal housing
Dimensions: 95 (W) x 95 (H) x 273,2 mm
Gross weight: 1.66 kg
Net weight: 1.12 kg
3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(ROTATION)
