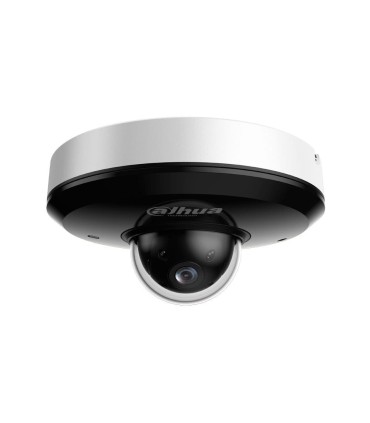

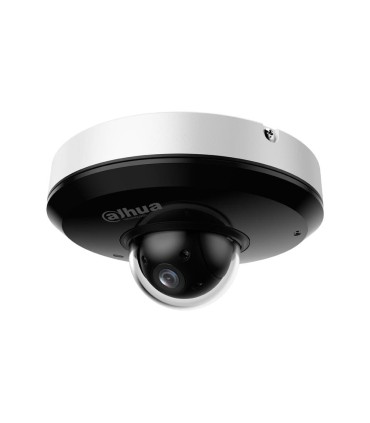

SD1A404DB-GNY - WizSense 4MP outdoor PTZ IP dome

1/2.8" 4 megapixel CMOS

Video compression Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG

Resolution: 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576, 704x480), VGA (640x480), CIF (352x288, 352x240)

Stream 1: 4MP, 3MP, 1080P, 1.3MP, 720P (1~25/30 ips)

Stream 2: D1, VGA, CIF (1~25/30 fps)

Stream 3: 720P (1~25/30 ips)

Day/night mode with removable mechanical filter

0.005 lux F1.8 (color), 0.0005 lux F1.8 (B/W), 0 lux IR On

Smart IR: 3 IR leds, up to 20 meters

4X optical zoom: 2.8 ~ 12 mm

Angle of view: 90.6°~47.3°(H), 49.1°~26.7°(V), 107.4°~5.8°(D)

Auto, semi-automatic and manual focus control

Fixed iris control

16X digital zoom

Image modes: BLC, HLC, WDR 120dB, 2D/3D-NR, EIS (image stabilizer), Digital Defog.

White balance with 8 modes

Gain control: automatic, manual, gain priority

Supports videosensor and regions of interest (ROI)

Perimeter protection: Line crossing and intrusion detection with classification of people and vehicles, fence crossing detection, loitering detection, missing object detection, and security detection.Loitering detection, missing/abandoned objects, fast motion detection, parking detection, people gathering detection, etc.

Supports face detection, snapshot and face enhancement; Supports face cropping: Face, one-inch photo; Capture strategies include real-time capture and quality priority

Supports people counting, calculation of the number of people in the area, and queue management

SMD 3.0

Horizontal positioner: 0° ~ 355° ~ 355°; Horizontal positioner: 0° ~ 355° ~ 355

Vertical positioner: 5° ~ 90°.

Manual speed: 0.1° ~ 70°/sec (H), 0.1° ~ 30°/sec (V)

Preset speed: 80°/sec (H), 40°/sec (V)

300 presets, DH-SD protocol

8 rounds (up to 32 presets per round)

1 audio input / 1 audio output

MicroSD card slot for up to 512GB (card not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP

ONVIF S/G/T, RTMP, CGI, SDK, ONVIF S/G/T support

Compatible with IOS and Android devices

Compatible with IE, Chrome, Firefox, Safari browsers

Up to 20 users

DSS Pro, DMSS management software

Power: 12V DC, 2A / PoE (802.3af)

Power consumption: 4W (basic), 13W (maximum)

Operating temperature from -30°C ~ +60°C

Operating relative humidity ≤95%.

IP66 degree of protection

Vandal-proof IK08

Lightning-proof 6KV

Dimensions: Ø128 x 65,4 (H) mm

Net weight: 500 g

Gross weight: 700 g
