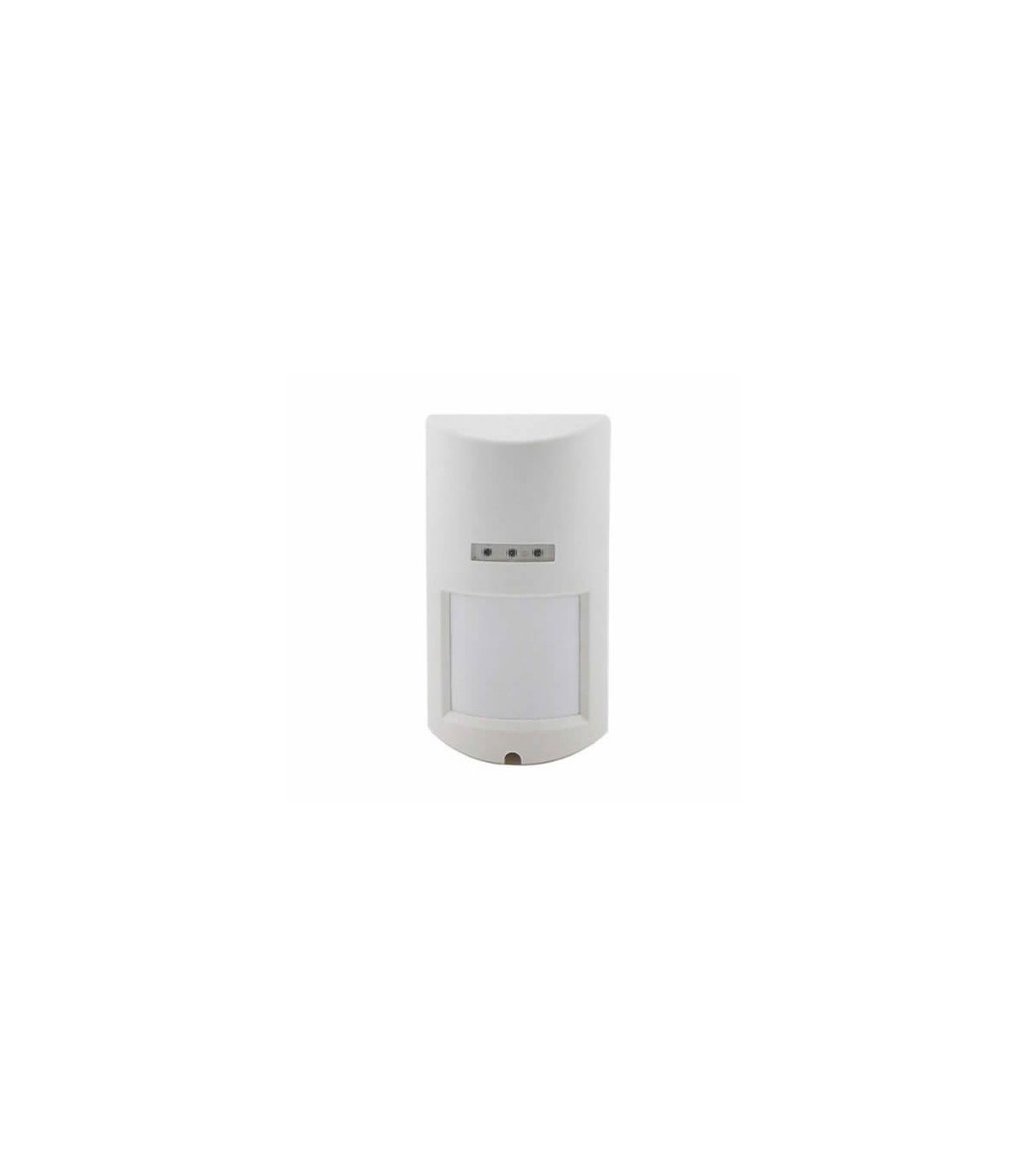

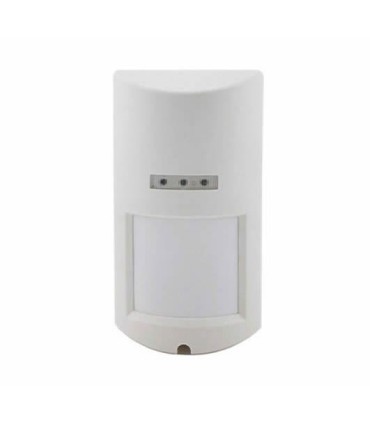

PIR détecteur de mouvement extérieur sans fil

PIR détecteur de mouvement extérieur sans fil

MAIN FUNCTION

-Super mini power-consumption solution
-2 grade sensitivities for option
-Digital pet immunity up to 20kg
-Bi-directional temperature compensation
-High capacity battery(24 months guaranty)
-EDS/electric shock proof/mobile interference proof
-Anti white light
-Low voltage alarm
-Fully sealed optical parts
-Multi-direction bracket fit for corner/wall/ceiling mount

Technical Parameters

Power : 3.6V 1/2 AA Lithium battery
Current : 12uA (stand by) 15mA(alarm)
Mount height : 1.8m-2.4m
Detection range :12m*12m 100°
Temperature compensation: digital
Sensitivity : 2/3 pulses for option
Anti EMI :0.1-500MHz/30V/m
Anti white light :>10000 LUX
Alarm output : EV1527 or PT2262
Alarm time : 2s
Alarm interval : 4 min (USE mode)
Wireless distance : ≥200m (open space)
Frequencies : 315/433MHz
Operation temperature :-10℃/+55℃
Operation humidity :95% RH
Detection speed :0.2-3.5 m/s
Fire proof : ABS plastic
Pet immunity : 20kg
Size :148*75*54mm

Download Fiche technique
