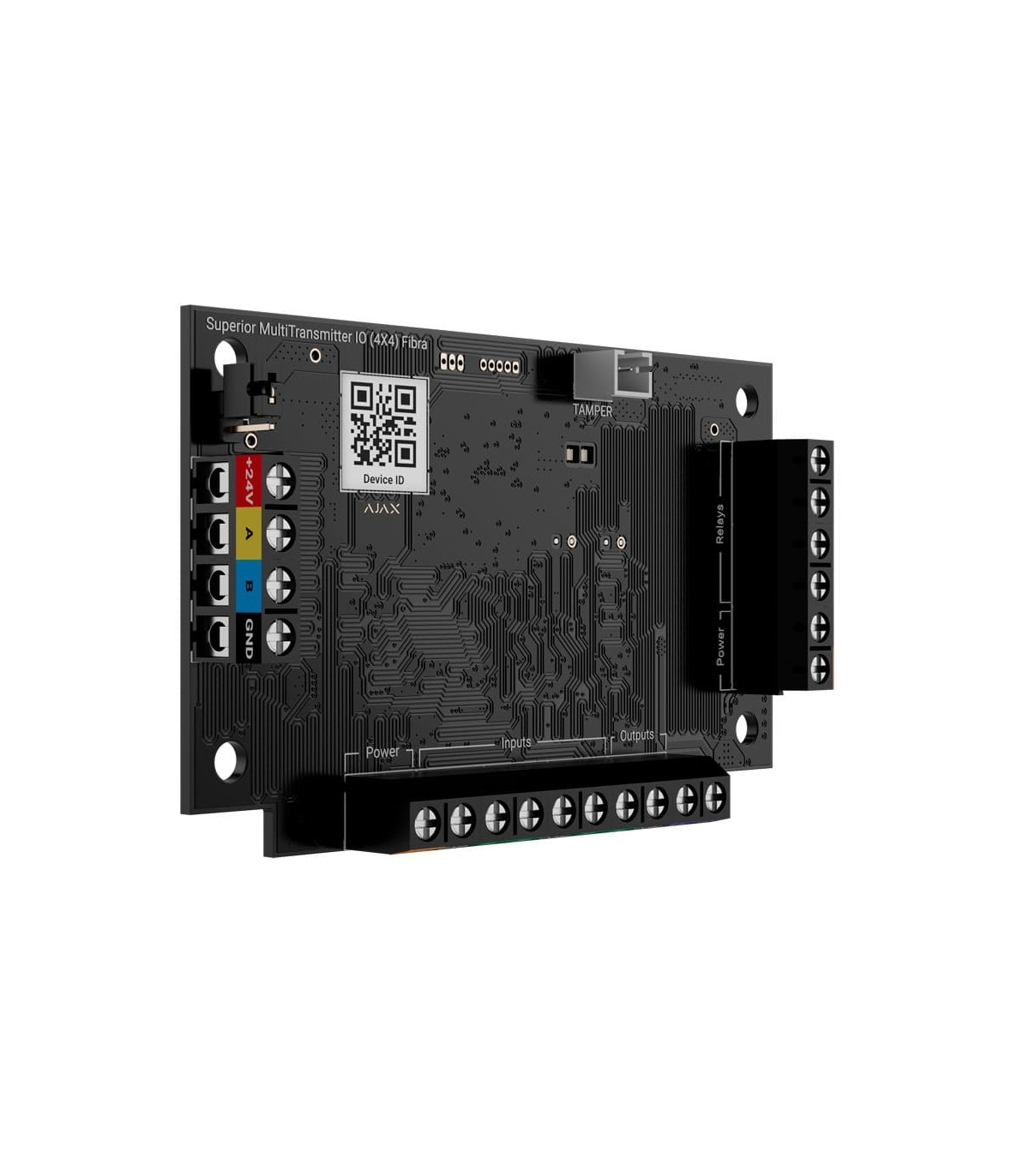

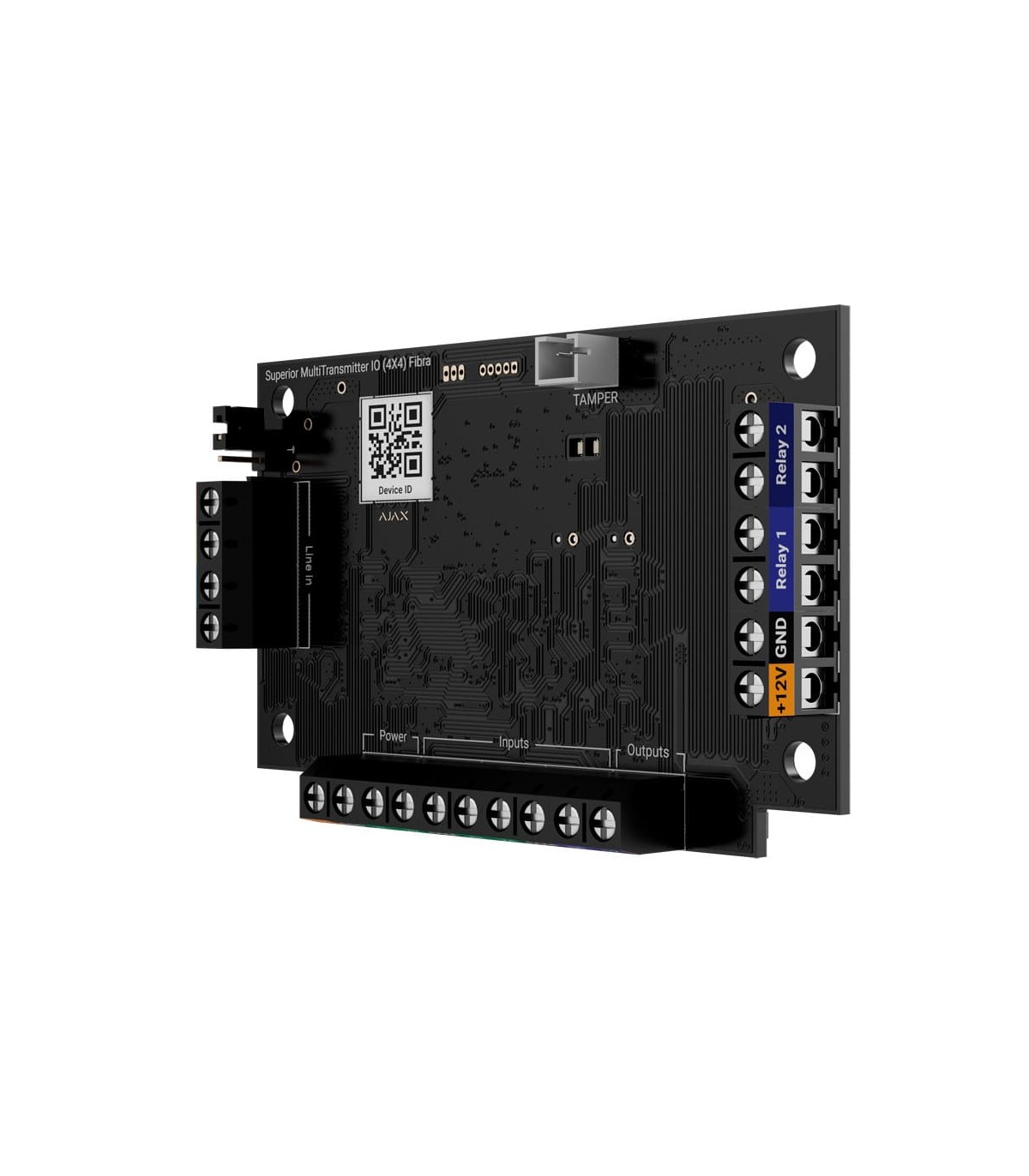

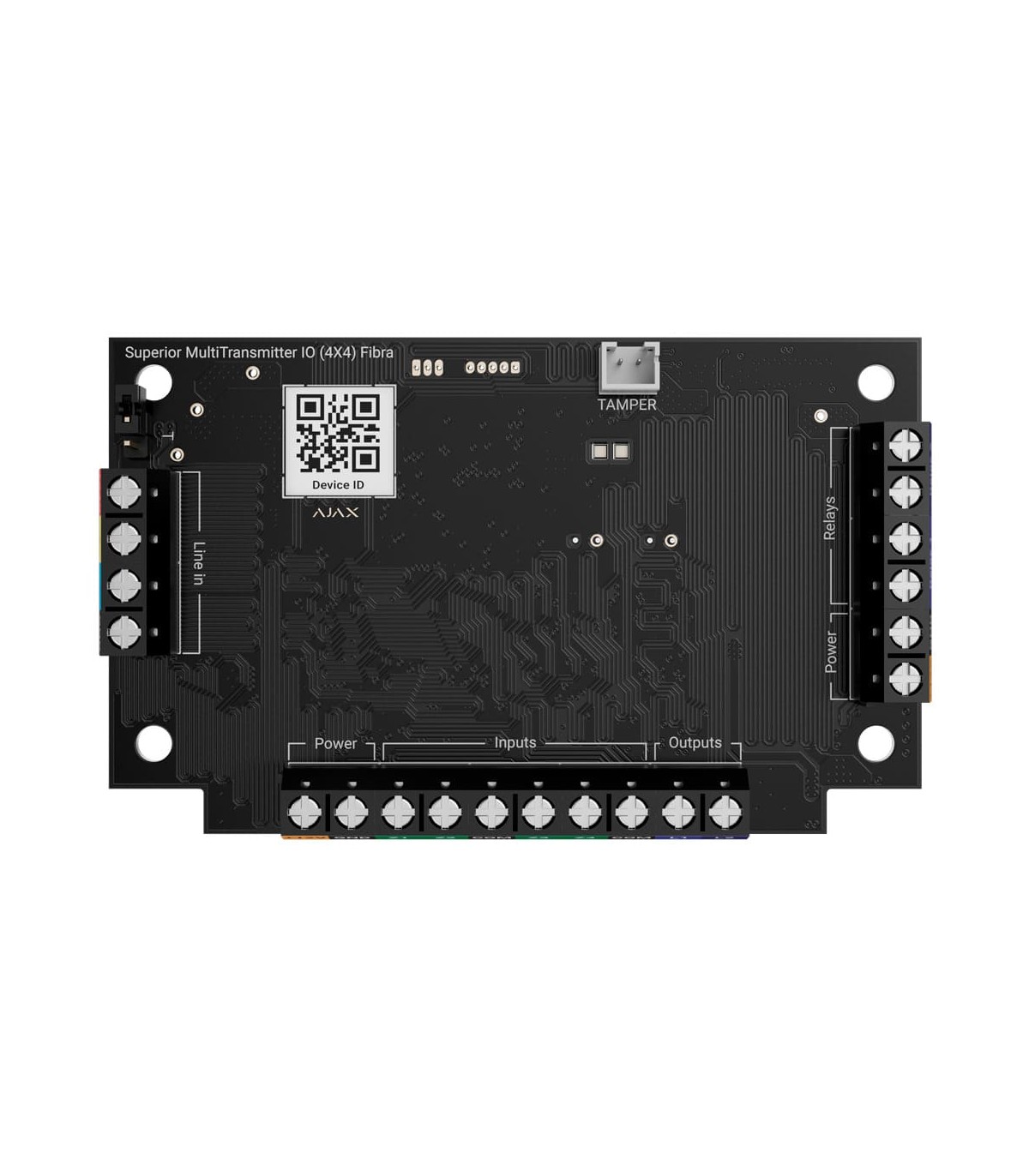

Module de 4 entradas/4 sorties

Produit réservé aux installateurs professionnels certifiés Ajax

  • Module de 4 entradas/4 sorties
  • Protocole Fibra
  • Certifié Grade 3
  • 4 entrées, 2 sorties relais et 2 sorties logiques
  • Alarme configurable NF, NO, EOL, 2EOL, 3EOL
  • 2 sorties d'alimentation 12V / 50 mA
Lire la suiteShow less

PRIX DISPONIBLE À LA REVENTE
Pour plus d\'informations, veuillez nous contacter par courriel.

Référence:
FIBRA-MULTITRANSMITTER-IO4X4
Marque:
Ajouter à la comparaison0
Ajouter à la liste de souhaits
Description
Brand Ajax Fibra
Device Module of 4 inputs / 4 outputs
Safety grade Grade 3
Transmission distance Up to 2000 m (Recommended): twisted pair U/UTP cat. 5)

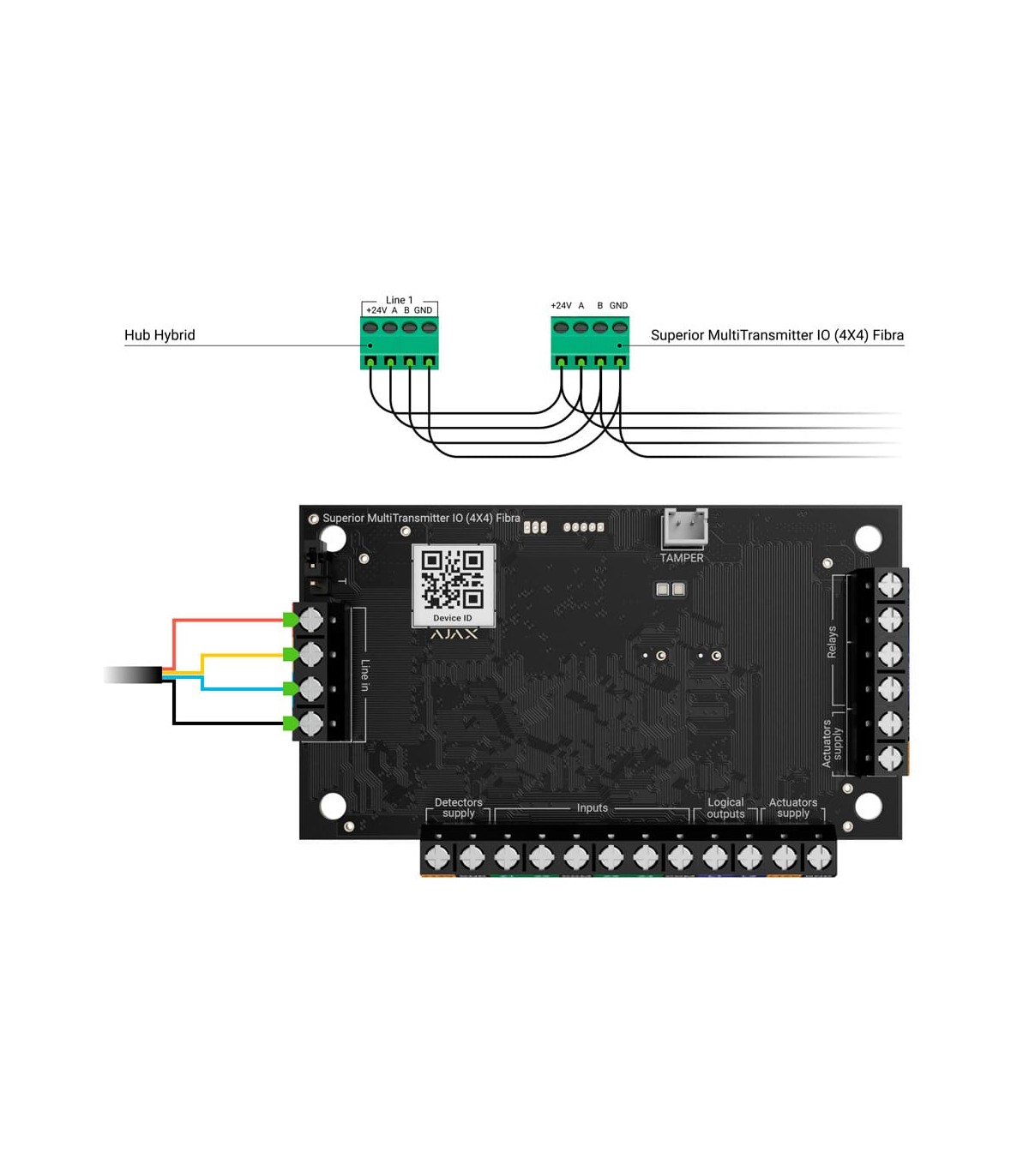

Bus connection 4 wire cable
Operating mode Detect alarms
Changing arming modes (KeyArm)
Door lock control
Control of bolt locking
Types of events Intrusion, Fire, Medical aid, Panic button, Gas alarm, Tamper alarm, Malfunction, Flood, Glass breakage, High temperature, Low temperature, Masking, Duress code (opening), Vibration (seismic sensor), Customized
Wired inputs 4 inputs
Alarm inputs Up to triple line resistance (NO, NC, EOL, 2EOL, 3EOL) / Impulse or bistable
End-of-line resistor EOL From 1 kΩ to 15 kΩ with increments of 100 Ω
Wired outputs 2 relay outputs
2 logic outputs (25mA max)
Use of logic outputs Locking element control (automatic locking/unlocking of door when changing security mode)
Electric lock control (remote locking/unlocking)
Use of relay outputs Relay (on/off) - NC/NO
Locking element control (automatic locking/unlocking of door when changing security mode)
Electric lock control (remote locking/unlocking)
Operating time relay output Configurable from 1 second to 3 minutes for the pulse mode of each relay output
Change status by timer Available

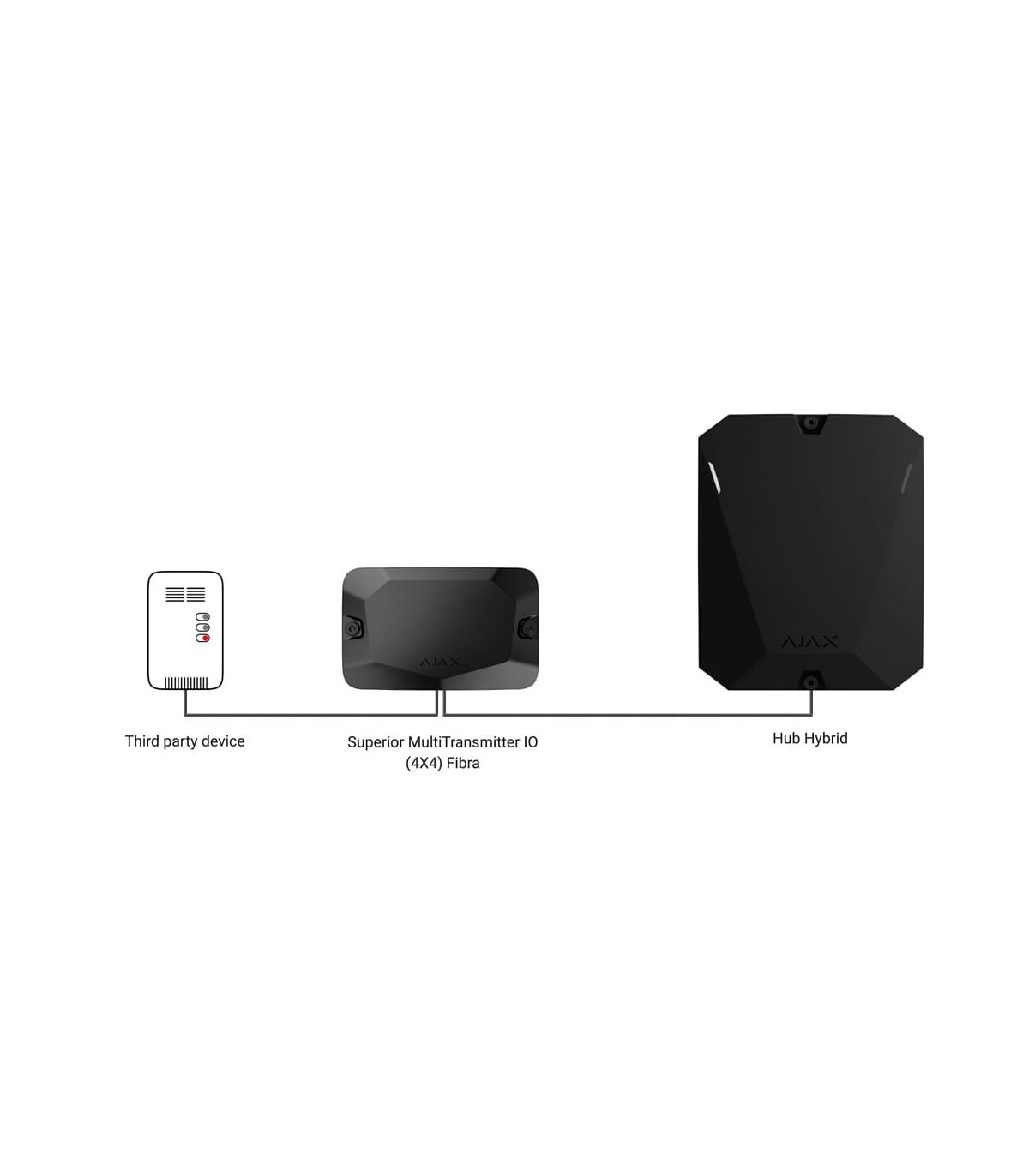

Cable length with third-party device Up to 400 meters
Tamper-resistant opening Available (connected to the housing)
Power supply output 2 12 V / up to 500 mA outputs (max.) for wired devices
Automation scenarios Available
Firmware Upgrade Available. Remote OTA (Over-the-air) updates
Compatibility Compatible with Hub Hybrid (2G and 4G)
Compatible housings FIBRA-CASE-A106, FIBRA-CASE-B175 and FIBRA-CASE-D430 / FIBRA-MODULEHOLDER-A module support
Power 24 V DC (Consumption up to 200 mA)
Temp. operation -10 ºC ~ 55 ºC
Dimensions 93 (H) x 55 (W) x 27 (D) mm
Weight 46 g
