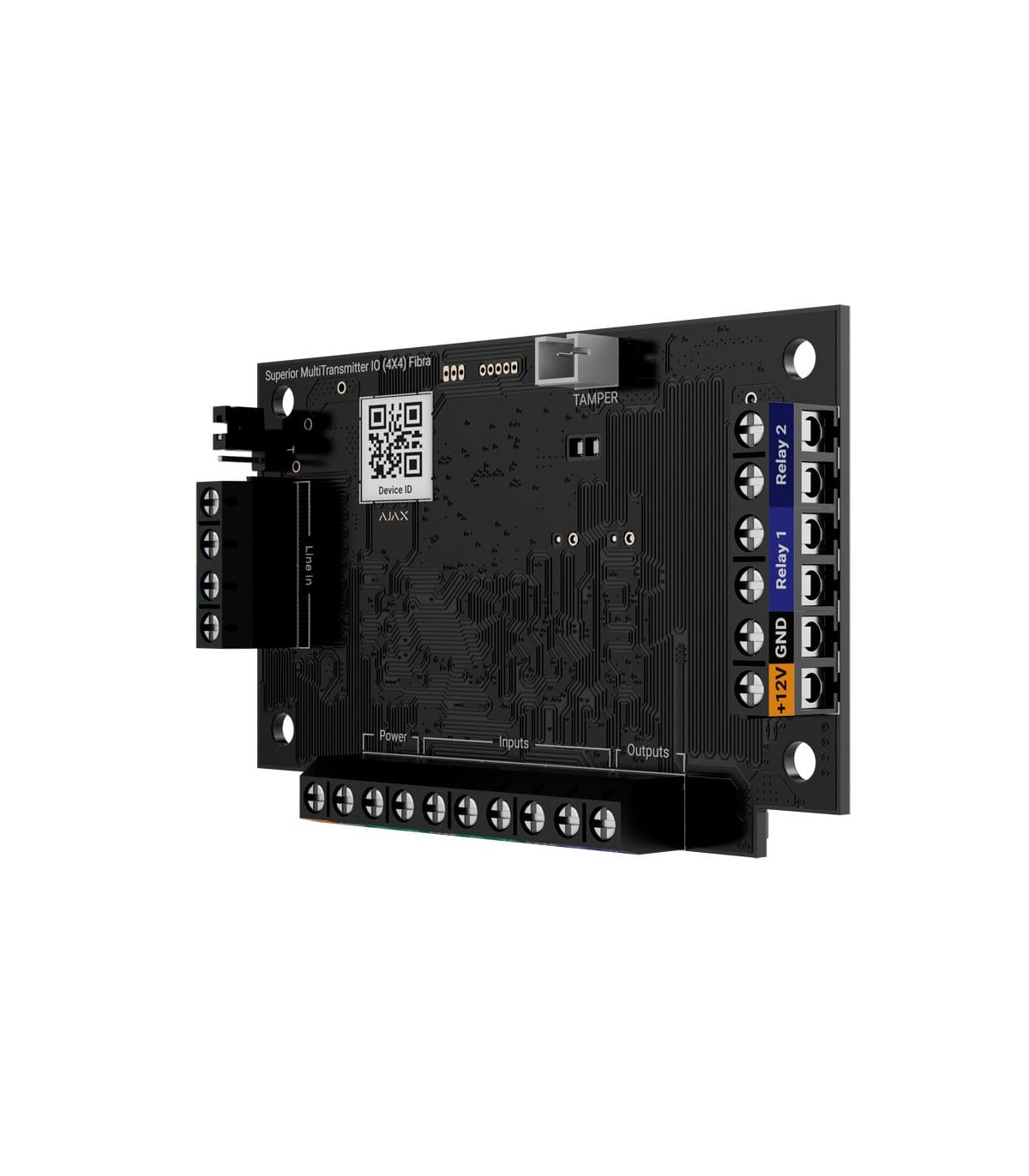

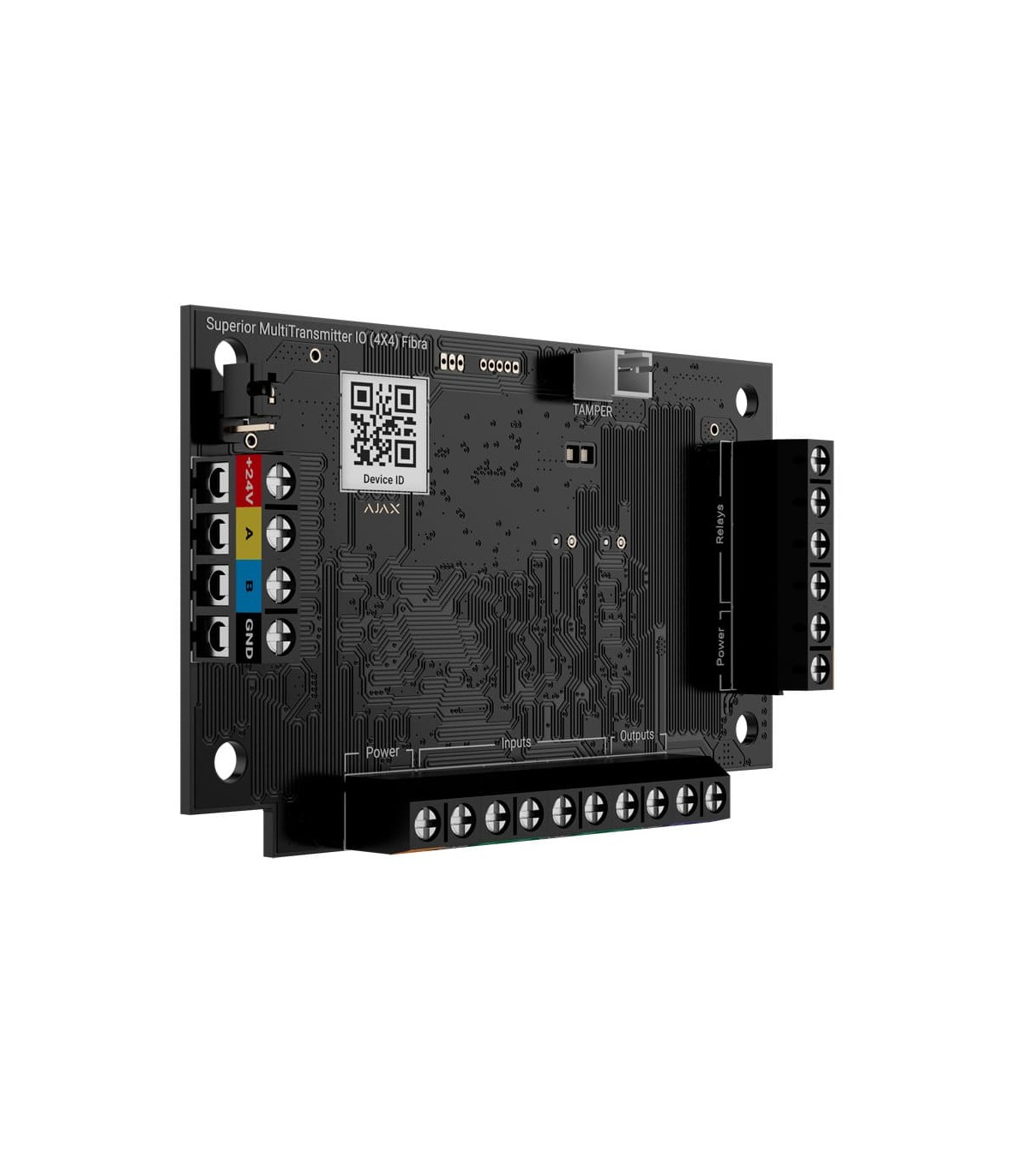

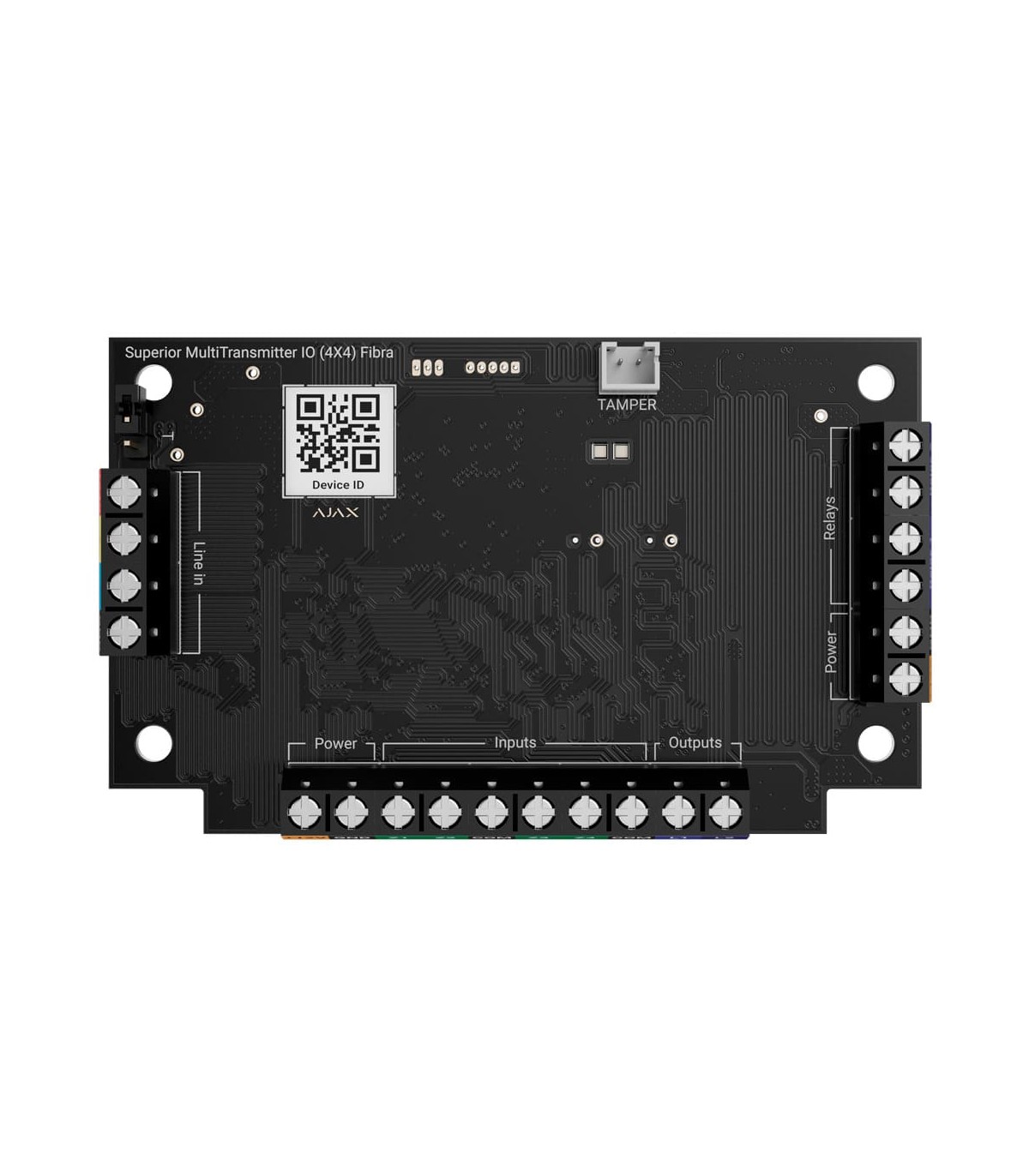

Module of 4 entradas/4 outputs
Product reserved for professional Ajax certified installers
- Module of 4 entradas/4 outputs
- Fibra Protocol
- Grade 3 approved
- 4 inputs, 2 relay outputs and 2 logic outputs
- Alarm configurable NC, NO, EOL, 2EOL, 3EOL
- 2 power supply outputs 12V / 50 mA
Reference:
FIBRA-MULTITRANSMITTER-IO4X4
Brand:
Add to compare0
Add to wishlist
| Brand | Ajax Fibra |
| Device | Module of 4 inputs / 4 outputs |
| Safety grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |

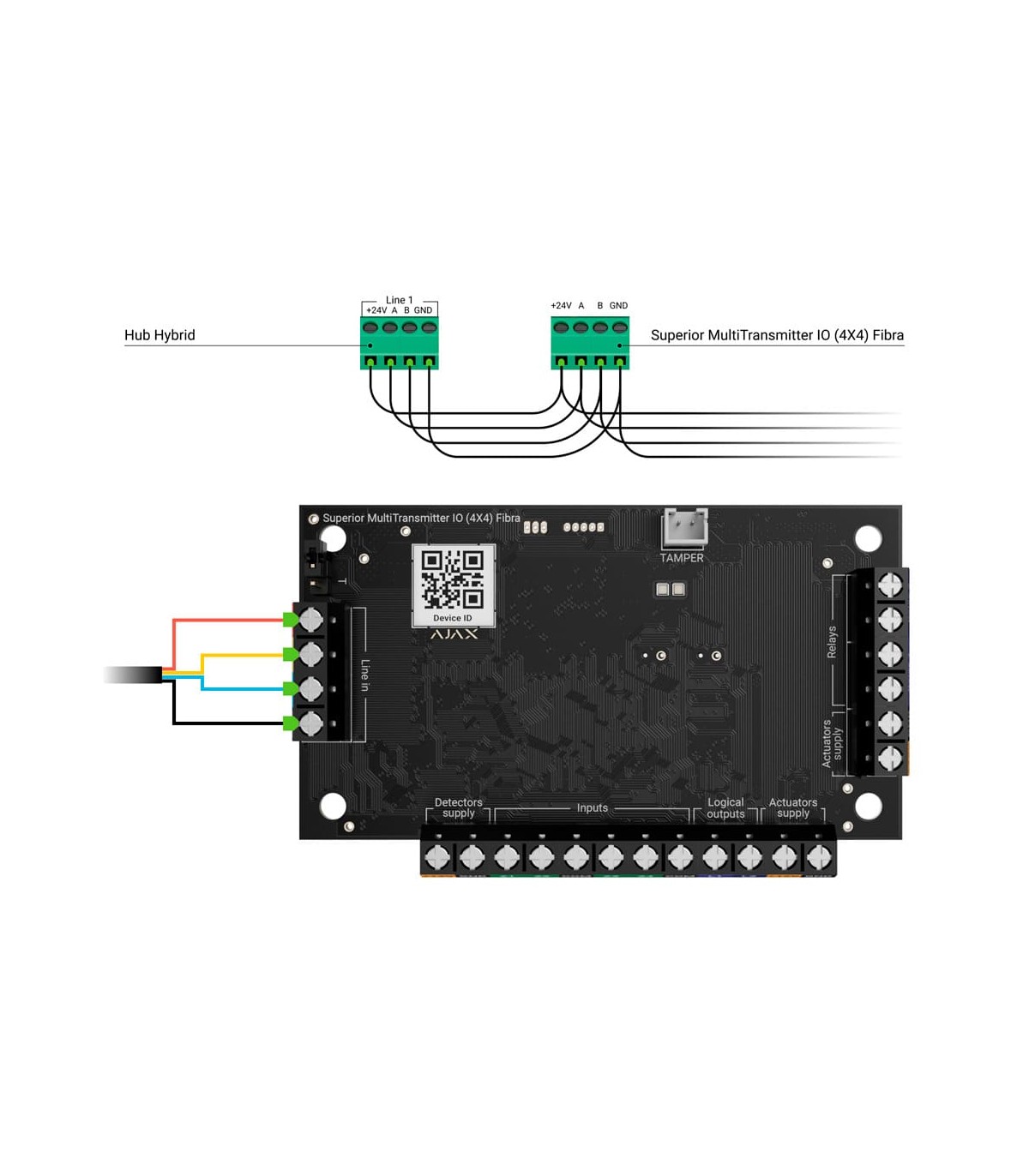

| Bus connection | 4 wire cable |
| Operating mode | Detect alarms Changing arming modes (KeyArm) Door lock control Control of bolt locking |
| Types of events | Intrusion, Fire, Medical aid, Panic button, Gas alarm, Tamper alarm, Malfunction, Flood, Glass breakage, High temperature, Low temperature, Masking, Duress code (opening), Vibration (seismic sensor), Customized |
| Wired inputs | 4 inputs |
| Alarm inputs | Up to triple line resistance (NO, NC, EOL, 2EOL, 3EOL) / Impulse or bistable |
| End-of-line resistor EOL | From 1 kΩ to 15 kΩ with increments of 100 Ω |
| Wired outputs | 2 relay outputs 2 logic outputs (25mA max) |
| Use of logic outputs | Locking element control (automatic locking/unlocking of door when changing security mode) Electric lock control (remote locking/unlocking) |
| Use of relay outputs | Relay (on/off) - NC/NO Locking element control (automatic locking/unlocking of door when changing security mode) Electric lock control (remote locking/unlocking) |
| Operating time relay output | Configurable from 1 second to 3 minutes for the pulse mode of each relay output |
| Change status by timer | Available |

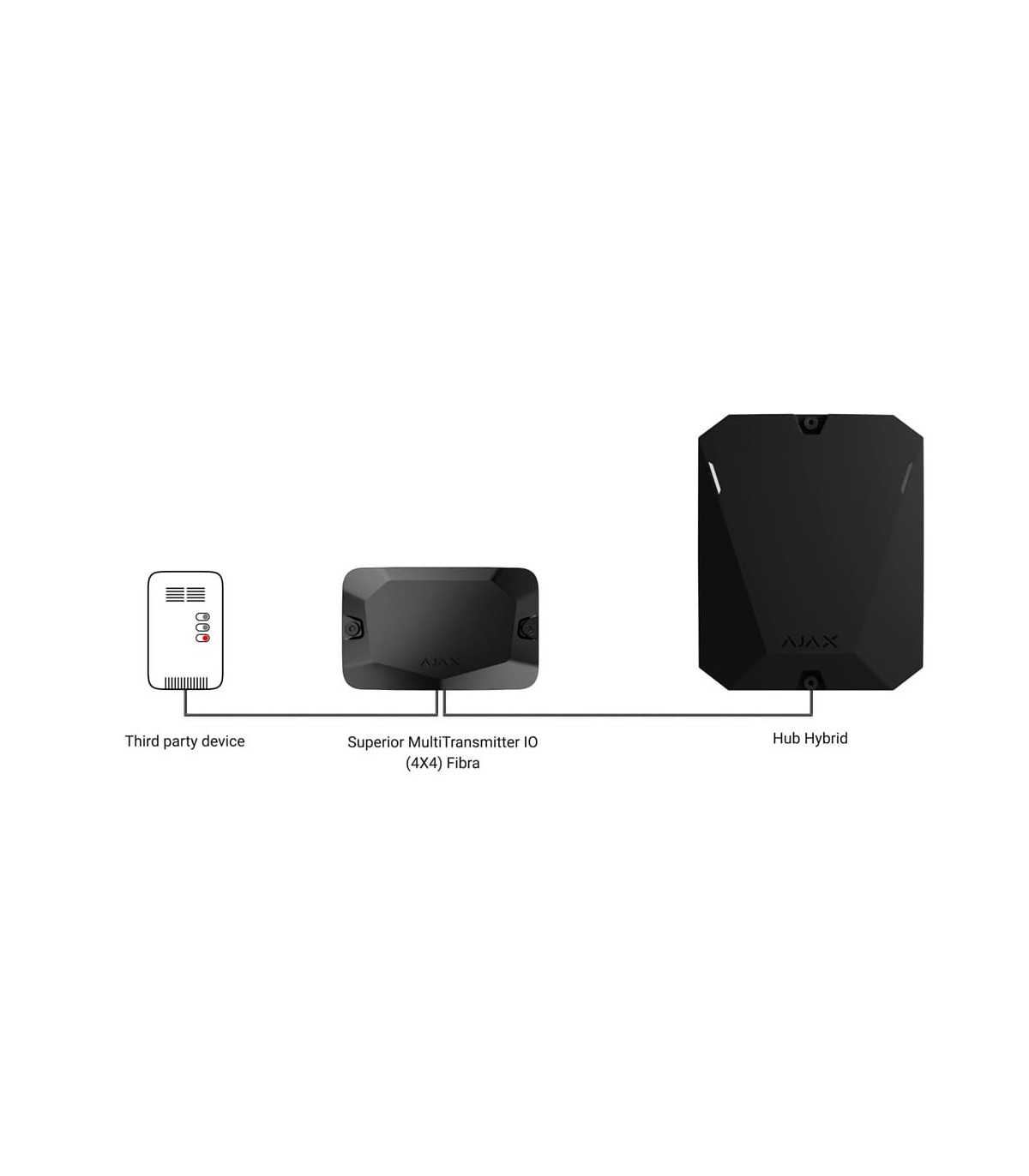

| Cable length with third-party device | Up to 400 meters |
| Tamper-resistant opening | Available (connected to the housing) |
| Power supply output | 2 12 V / up to 500 mA outputs (max.) for wired devices |
| Automation scenarios | Available |
| Firmware Upgrade | Available. Remote OTA (Over-the-air) updates |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |
| Compatible housings | FIBRA-CASE-A106, FIBRA-CASE-B175 and FIBRA-CASE-D430 / FIBRA-MODULEHOLDER-A module support |
| Power | 24 V DC (Consumption up to 200 mA) |
| Temp. operation | -10 ºC ~ 55 ºC |
| Dimensions | 93 (H) x 55 (W) x 27 (D) mm |
| Weight | 46 g |
