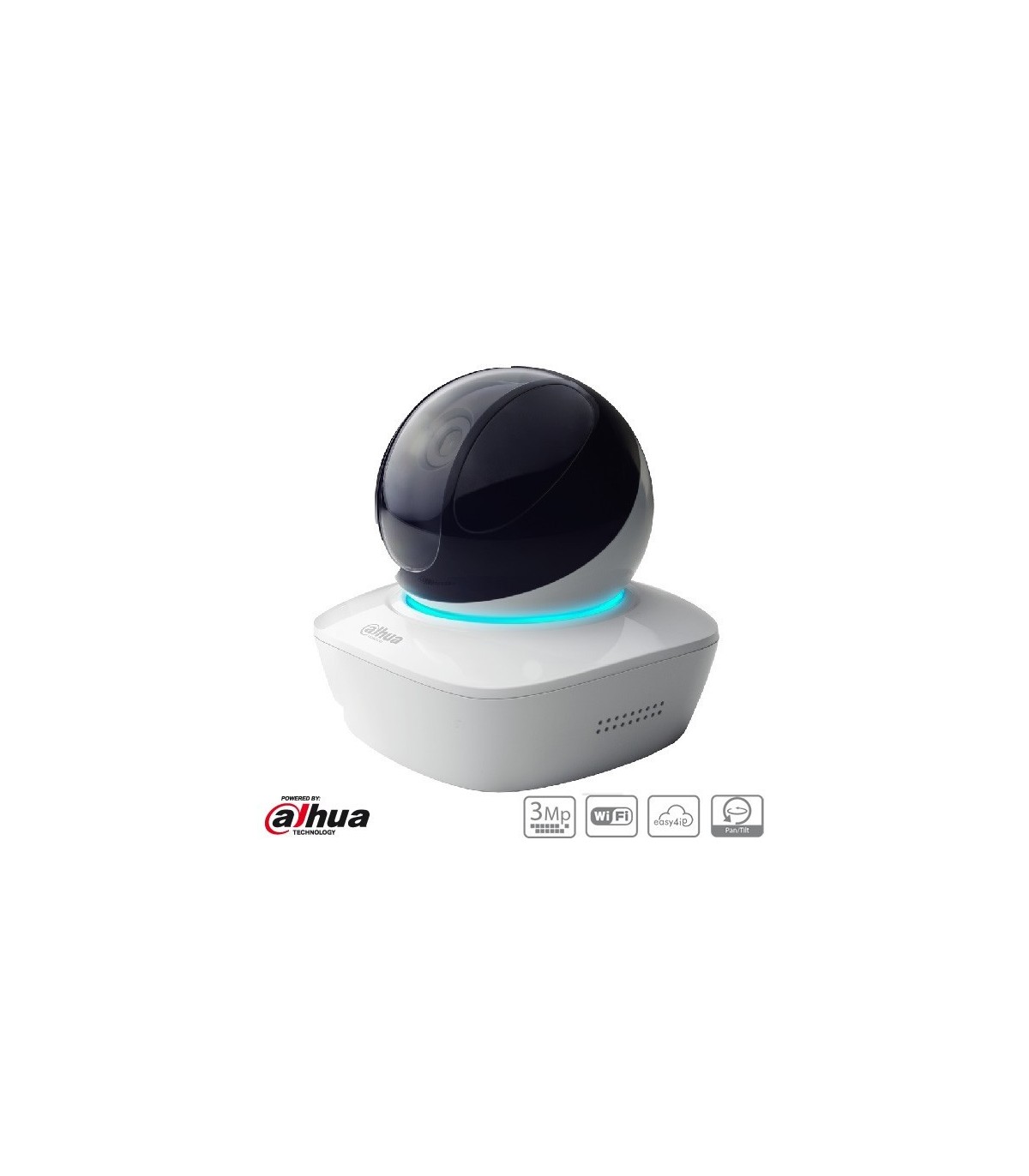

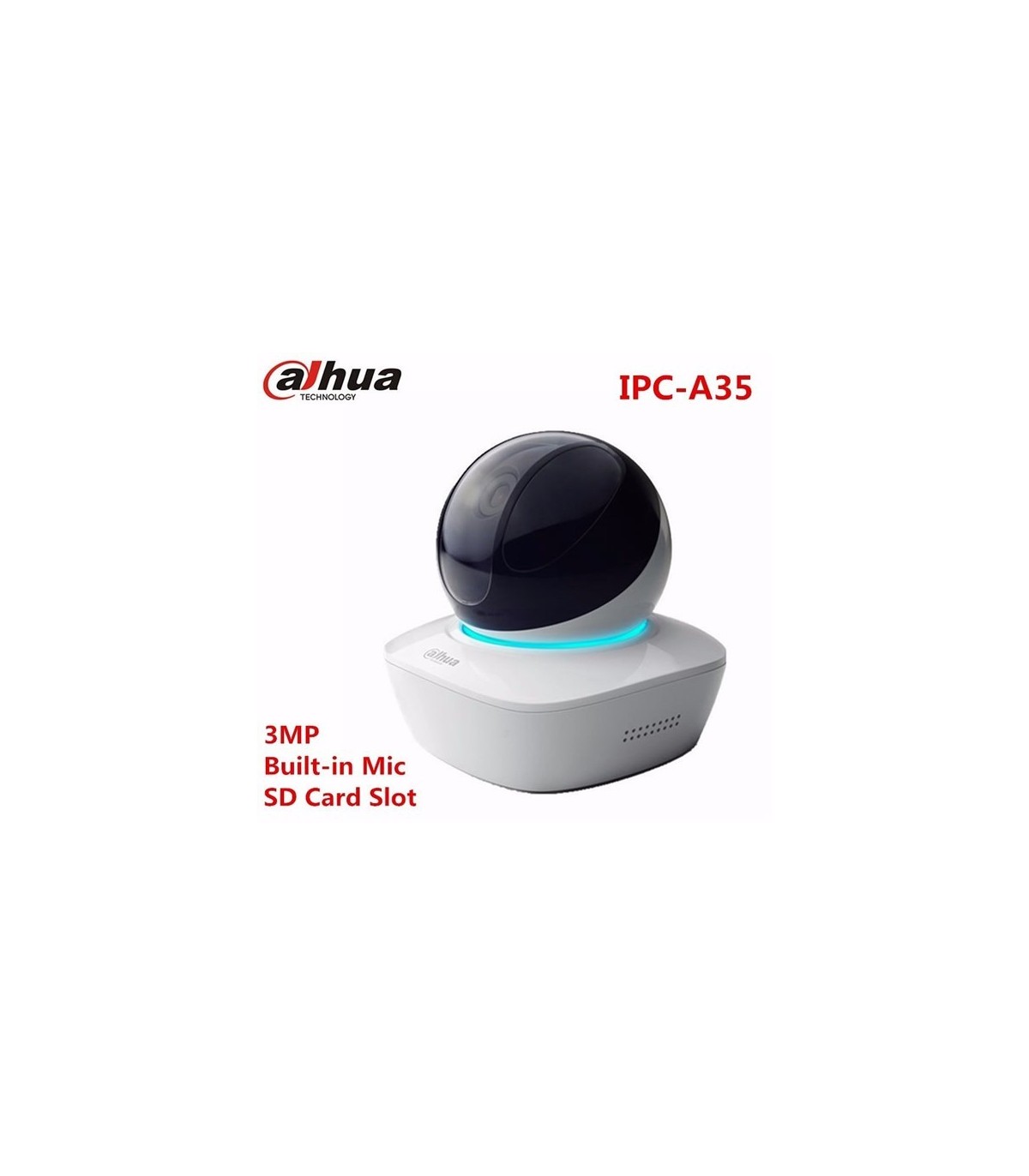

Caméra IP Wi-Fi 3MP Série A
CMOS Progressif 3Megapixel 1/3 "
20fps @ 3M (2304 × 1296) et 25/30fps@1.3M (1280 × 960)
Rotation 0 ° ~ 355 °, verticale 90 °, 25 préréglages
Gamme IR Night Vision 10m
Compatible avec Easy4ip
Wi-Fi
Emplacement pour carte Micro SD, jusqu'à 128 Go
|
Camera |
|
|
Image Sensor |
1/3” 3Megapixel progressive CMOS |
|
Effective Pixels |
2304(H) x1536(V) |
|
RAM/ROM |
256MB/16MB |
|
Scanning System |
Progressive |
|
Minimum Illumination |
0.78Lux/F2.0(Color), 0Lux/F2.0(IR on) |
|
S/N Ratio |
More than 50dB |
|
IR Distance |
Distance up to 10m(33ft) |
|
IR On/Off Control |
Auto/ Manual |
|
IR LEDs |
2 |
|
Lens |
|
|
Lens Type |
Fixed |
|
Mount Type |
Board-in |
|
Focal Length |
3.6mm |
|
Max. Aperture |
F2.0 |
|
Angle of View |
H:77°;V:42° |
|
Focus Control |
Fixed |
|
Close Focus Distance |
N/A |
|
PTZ |
|
|
Pan/Tilt Range |
Pan:0° ~355 ° ;Tilt:0° ~90° ;Rotation:0° ~355° |
|
Video |
|
|
Compression |
H.264/H.264B/H.264H/MJPEG |
|
Streaming Capability |
2 Streams |
|
Resolution |
3M(2048×1536)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/VGA(640 ×480)/ QVGA(320×240) |
|
Frame Rate |
3MP(1~20fps)/2M(1~25/30fps) |
|
VGA/QVGA(1~25/30fps) |
|
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H264:32K ~ 10240Kbps |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
BLC Mode |
BLC / HLC / DWDR |
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detetion |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Electronic Image |
Support |
|
Smart IR |
Support |
|
Digital Zoom |
16x |
|
Flip |
0°/90°/180°/270° |
|
Mirror |
Off / On |
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
|
Audio |
|
|
Compression |
G.711A;G.711Mu;AAC |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
Wi-Fi(IEEE802.11b/g/n),50m(open field) |
|
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP; |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
10 Users/20 Users |
|
Edge Storage |
NAS(Network Attached Storage),Local PC for instant recording, 128GB |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS,Easy4ip |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Certifications |
|
|
Certifications |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
Built-in Mic & Speaker |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
Electrical |
|
|
Power Supply |
DC5V 2A |
|
Power Consumption |
<8.5W |
| Environmental | |
|
Operating Conditions |
-10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH |
|
Strorage Conditions |
-10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH |
|
Ingress Protection |
N/A |
|
Vandal Resistance |
N/A |
|
Construction |
|
|
Casing |
Plastic |
|
Dimensions |
94.4mm x 94.4mm x 94.4mm(3.72’ x3.72’’x3.72’’) |
|
Net Weight |
0.215Kg(0.47lb) |
|
Gross Weight |
0.575Kg(1.27lb) |
