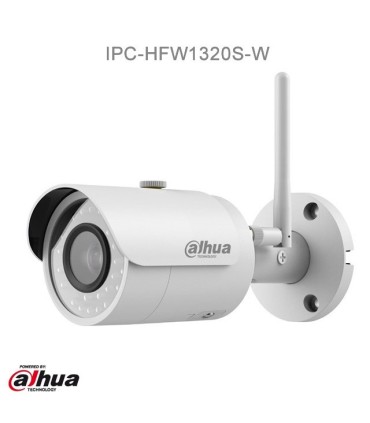

Camara IP Bullet Dahua, 3 Mpx, WIFI, IR 30 Metros, IP67

Camera

Image Sensor

1/3” 3Megapixel progresive CMOS

Effective Pixels

2304(H) x1536(V)

RAM/ROM

256MB/16MB

Scanning System

Progressive

Minimum Illumination

0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

24

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8 mm (3.6 mm optional)

Max. Aperture

F2.0/F2.0

Angle of View

H:100°/77°, V:55°/42°

Focus Control

Fixed

Close Focus Distance

N/A

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Video

Compression

H.264/H.264B/H.264H/MJPEG

Streaming Capability

2 Streams

Resolution

3M(2304×1296)/1080P(1920×1080)/ 1.3M(1280×960)/720P(1280×720)/720P(1280×720)/ VGA(640×480)/QVGA(320×240)

Frame Rate

3M(1 ~ 20fps)/2M (1 ~ 25/30fps)

VGA(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H264:32K ~ 10Mbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image

Support

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

Wi-Fi(IEEE802.11b/g/n),50m(open field)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS(Network Attached Storage)

Local PC for instant recording,

Micro SD Card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS,Easy4ip

Smart Phone

iPhone, iPad, Android Phone

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V

Power Consumption

<4.4W

Environmental

Operating Conditions

-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH

Strorage Conditions

-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

Φ70mm×164.7mm(2.76x6.49)

Net Weight

0.43Kg (0.95lb)

Gross Weight

0.52Kg (1.158lb)
