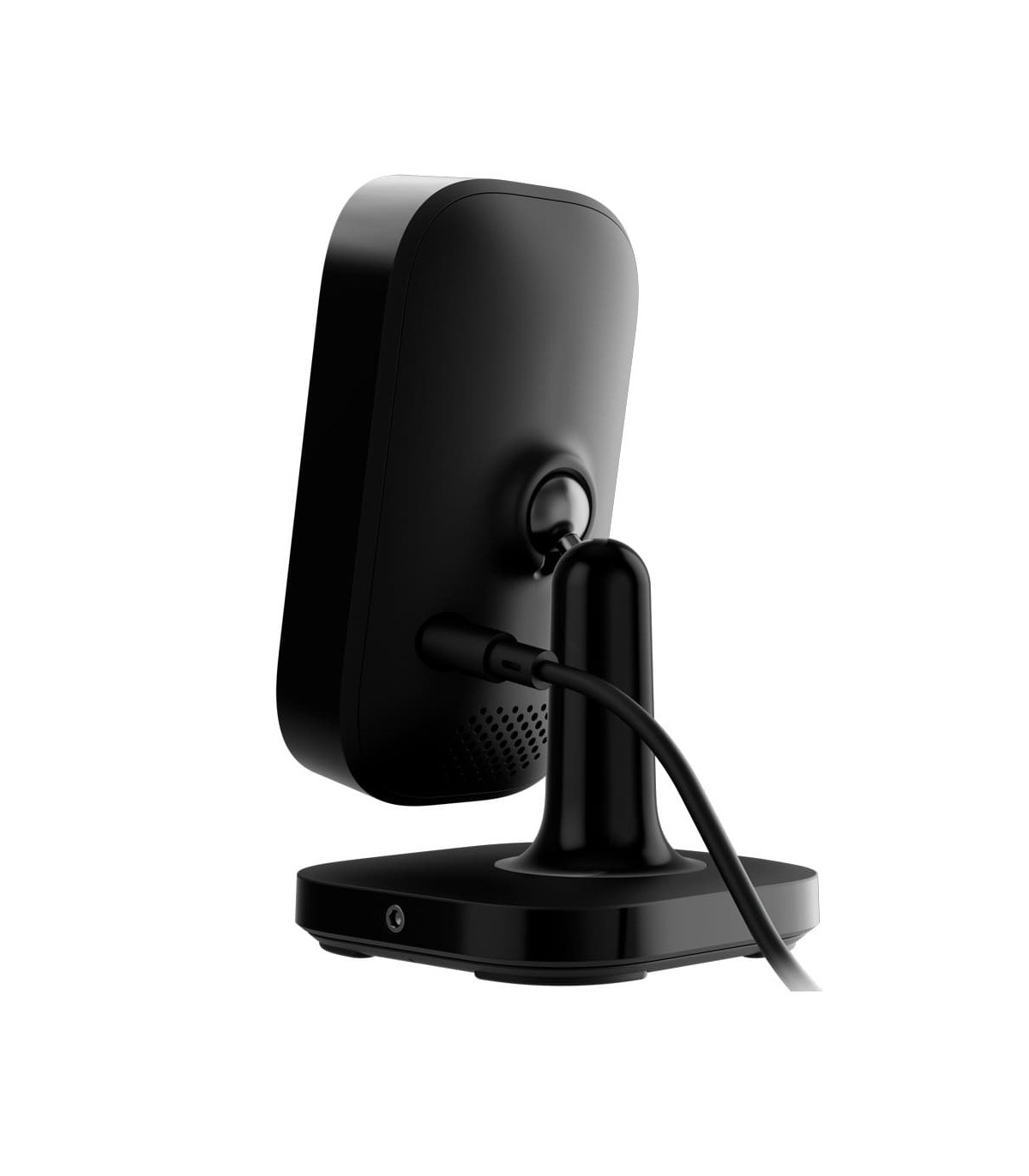

AI object detection
IR 8 m / PIR detection up to 4 m
Two-way audio with noise cancellation
Wi-Fi 2.4 GHz with Jeweller/Wings back-up
Black colour
| Brand | AJAX |
| Image sensor | Progressive scan CMOS |
| Maximum resolution | 4 Megapixel (2688×1520) |
| Main Stream rate | 4 Mpx (1 ~ 25 FPS) |
| Viewing Angle | H: 110° / V: 60° |
| Compression | H.264 |
| IR range | 8 m |
| Image improvements | True WDR/HDR |
| Artificial intelligence | Yes. Distinguishing between people, pets and vehicles |
| Audio | Built-in microphone Codec G722 |
| Video protocol | JetSparrow |
| Video storage | Ajax Cloud or NVR |
| WiFi | 2.4GHz IEEE802.11 b/g/n Up to 500 m in open field |
| Backup connection | Jeweller/Wings (events, alarms and photos) |
| Encryption | mTLS |
| Firmware Upgrade | Available. Remote OTA (Over-the-air) updates |
| Integrated PIR detection field | 4 m / H: 110º / V: 60º |
| Sensitivity | Configurable in app, 3 levels |
| Power | 12 V ± 20%, 1 А |
| Operating temperature | 0 °C ~ +40 °C |
| Operating Humidity | Up to 90% |
| Degree of protection | IP20 |
| Dimensions | 128 × 74 × 76 mm |
| Weight | 235 g |
| Colour | Black |
| RAL code | Ral 9005 |
Ajax Alarm Panel
Grade 2 Certificate
Ethernet and GSM / GPRS communication
Wireless 868 MHz
Supports 100 wireless accessories
Integration of up to 25 IP cameras or DVRs
Compatible with PIR CAM detector available soon
Smartphone and web app
White color
