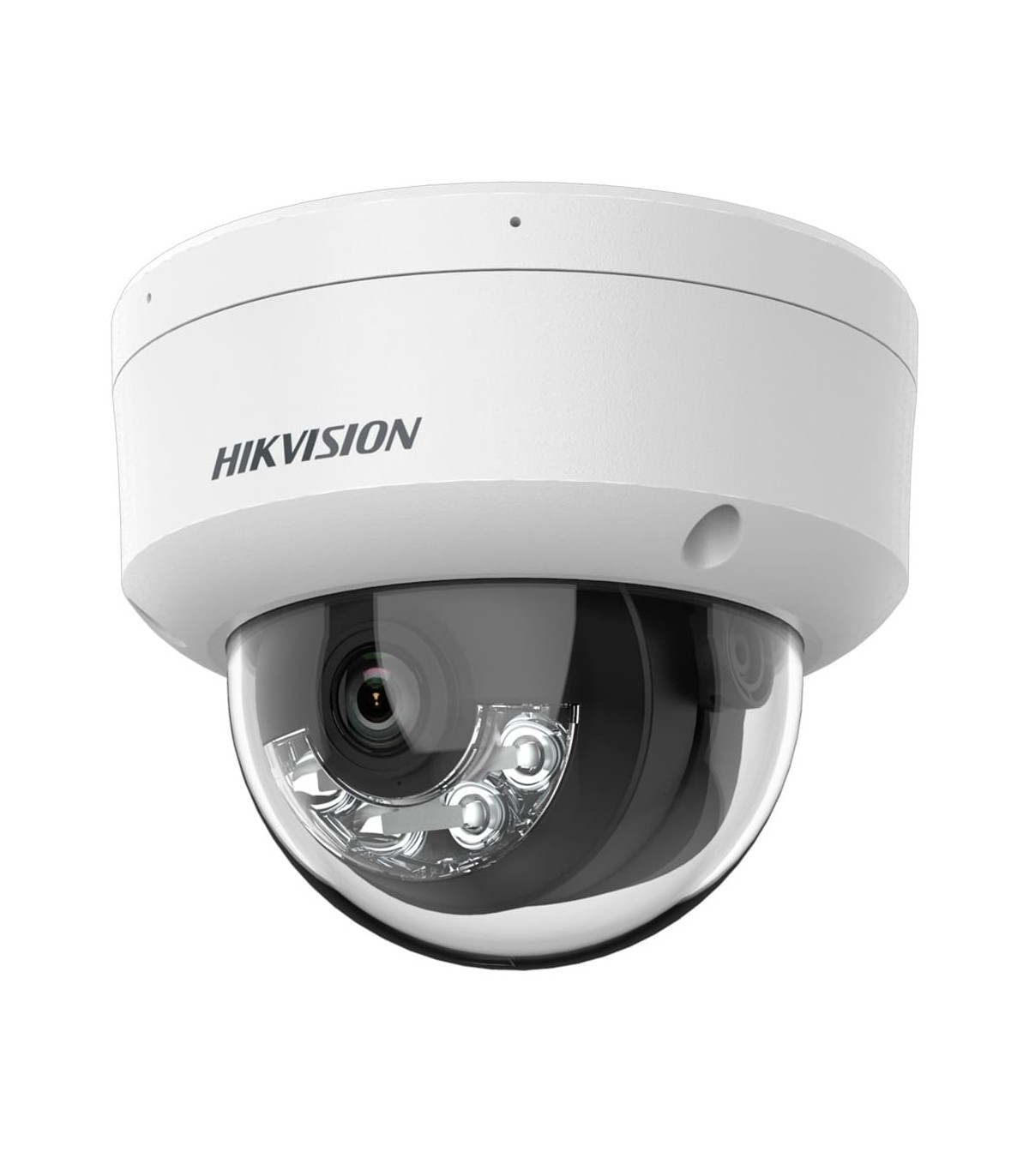

DS-2CD1143G2-LIU(2.8mm)- Hikvision IP Dome camera Value range
Hikvision IP Dome camera Value range
Resolution 4 Megapixel (2560x1440)
2.8 mm Lens
Hybrid light range 30 m
PoE (IEEE802.3af) | Integrated Microphone
Motion detection 2.0 | IP67, IK10
€82.90
(tax incl.)
DELIVERED IN: 2 to 5 days depending on destination country
Reference:
DS-2CD1143G2-LIU(2.8mm)
Brand:
Add to compare0
Add to wishlist
| Brand | HIKVISION |
| Range | Value |
| Image sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main Stream rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 98°, V: 54°, D: 114° |
| Range performance | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum illumination | Colour: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary lighting | Hybrid light: IR and white light IR range of 30 m White light range 30 m |
| Day/Night | Removable mechanical ICR filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated microphone |
| Audio type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bit rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps 160 Kbps (MP2L2)/16 to 64 Kbps [%VAR%] to [%VAR%] Kbps (AAC-LC) |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power | DC 12 V / 500 mA / 5.5 W max. PoE IEEE802.3af |
| Degree of protection | Weatherproof IP67 Vandal proof IK08 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 121.4 x 97.7 mm (Al) |
| Base dimensions | Ø base 121.4 mm / Ø entre tornillos 104.8 mm / 3 tornillos |
| Weight | 550 g |
