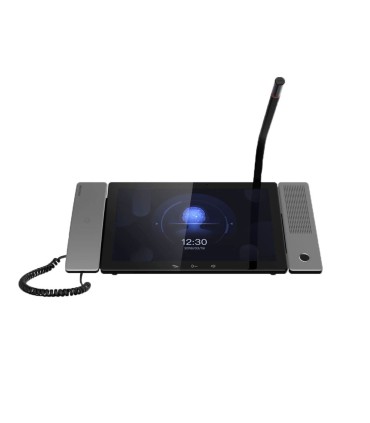

Master monitor for video intercom systems IPS touch screen of 10.1" - DS-KM9503
Omnidirectional audio
TCP/IP, SIP
MicroSD slot up to 128 GB
Telephone for communication
€825.00
(tax incl.)
DELIVERED IN: 2 to 5 days depending on destination country
Reference:
DS-KM9503
Brand:
Add to compare0
Add to wishlist
| Brand | Hikvision |
| Model | DS-KM9503 |
| Operating system | Android 7.1 RAM: 2 GB / ROM: 8 GB |
| Screen type | 10.1" touch-sensitive color IPS |
| Screen resolution | 1280 x 800 |
| Operation mode | Touch buttons for answering calls, opening the door and using the speakerphone |
| Inputs | 2 x configurable alarm inputs, 1 x RS485 , 3 x USB |
| Outputs | 2 x relay outputs |
| Audio | Omnidirectional audio with microphone and speakerphone with telephone (adjustable via software) Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 2 x Ethernet 10/100 BaseT / RTSP / SIP protocol 2.0 |
| Remote access | Software iVMS-4200 |
| Camera | 2 MP camera |
| Capacity | Up to 128 IP cameras Up to 1000 SIP accesses |
| Power | DC 12 V / 1 A max. / Standard PoE IEEE802.3af |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 292 (H) x 166 (W) x 31(Fo) mm |
| Weight | 1285 g |
| Installation | Tabletop or surface mounted on a wall |
