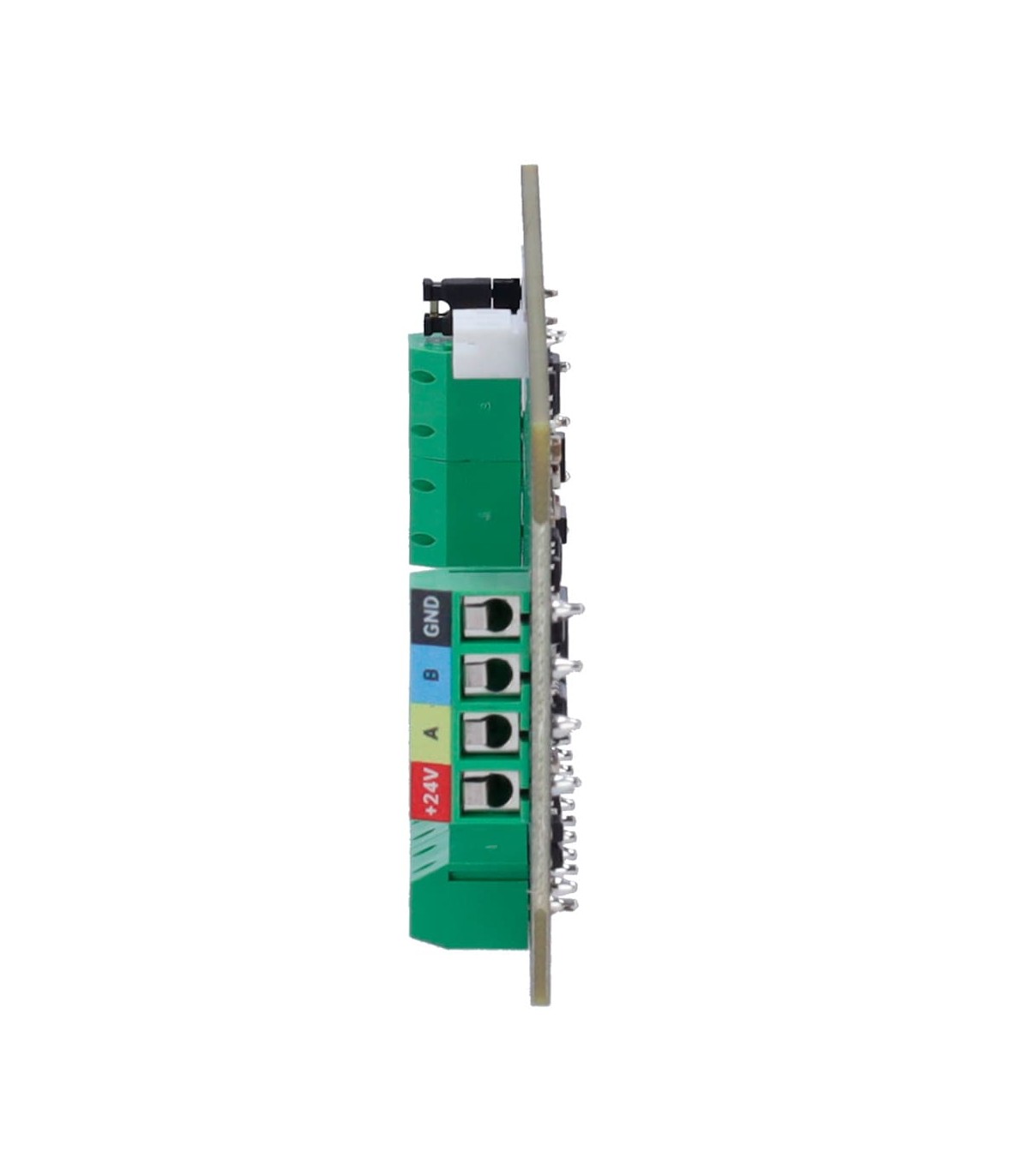

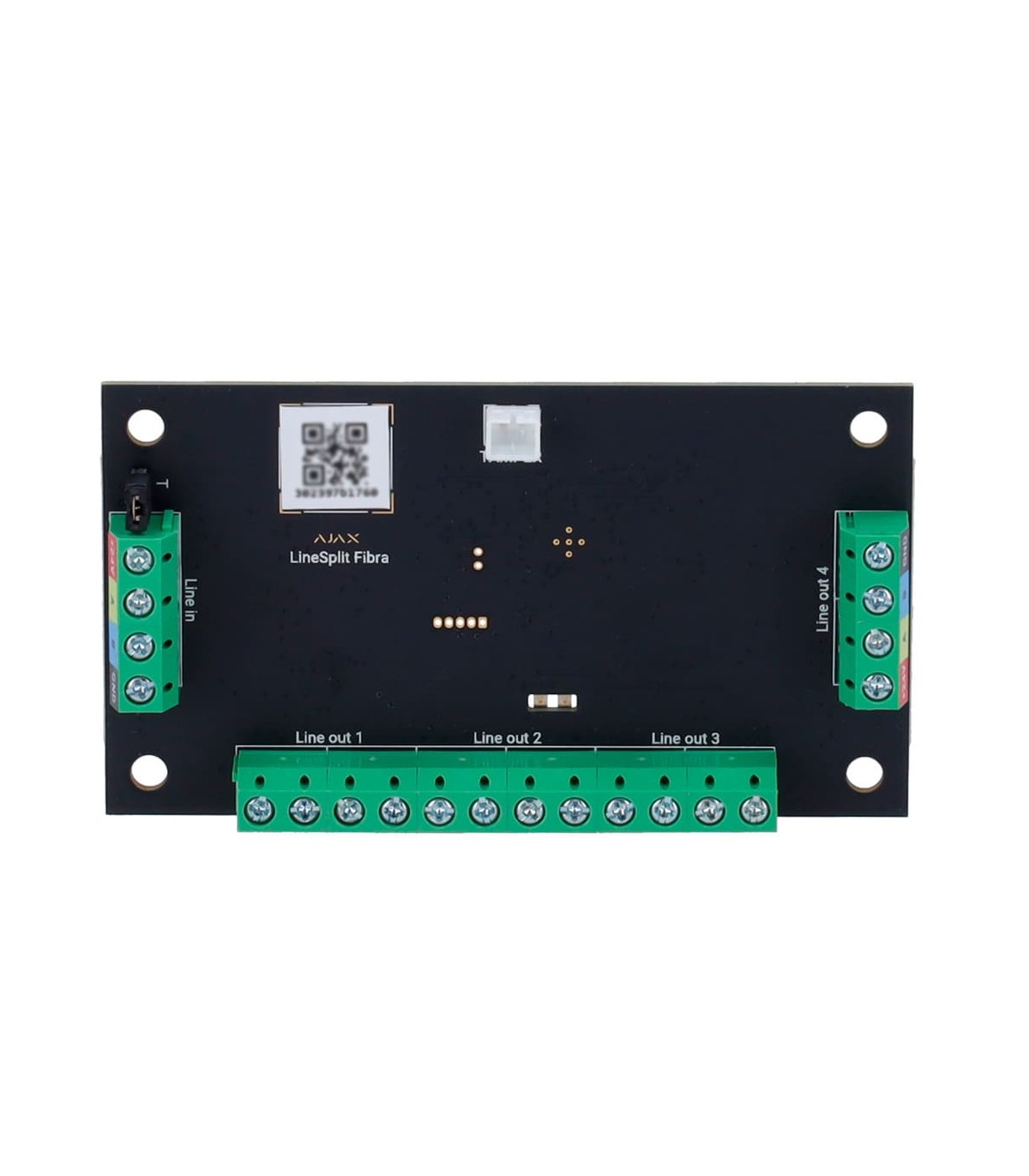

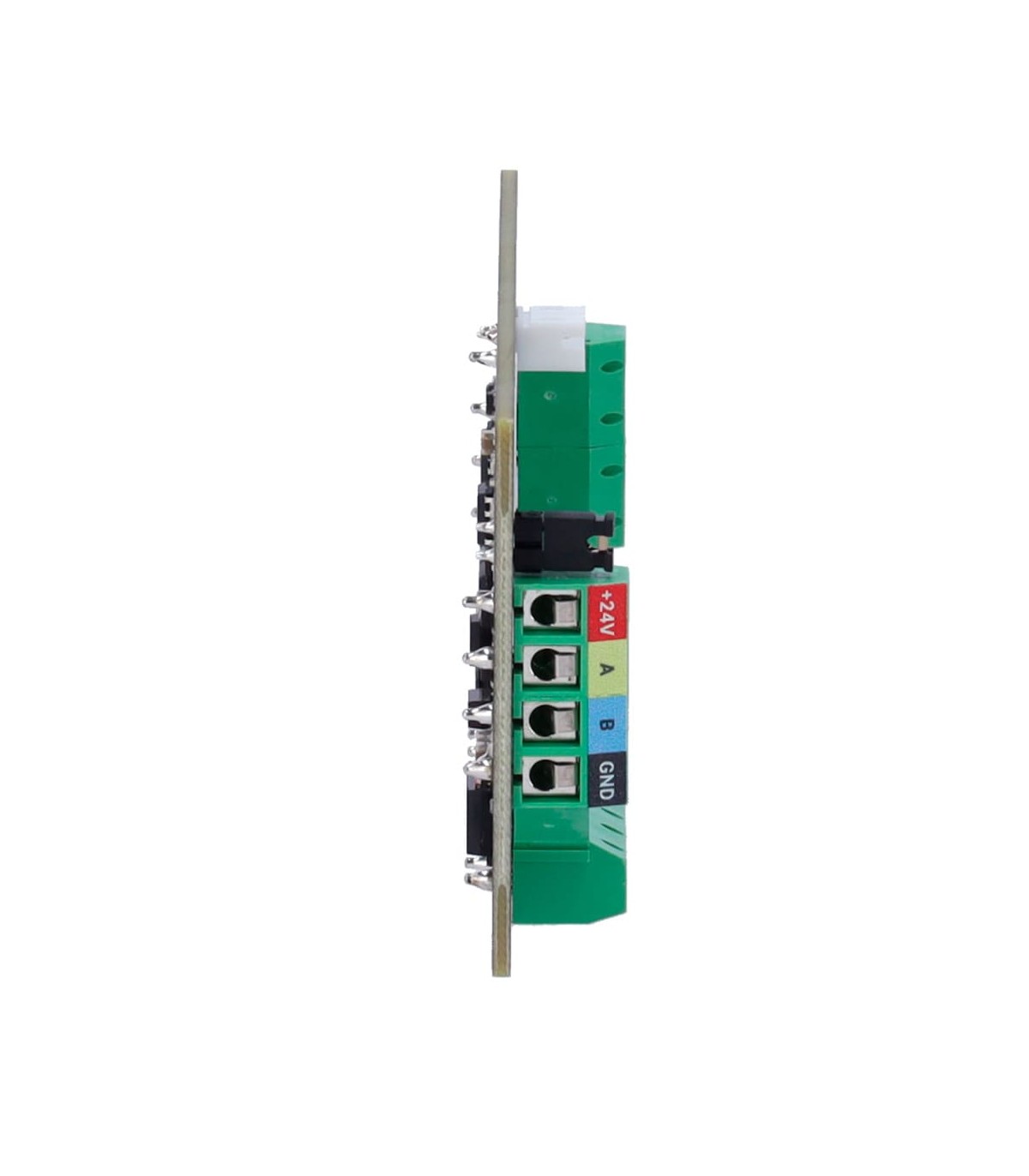

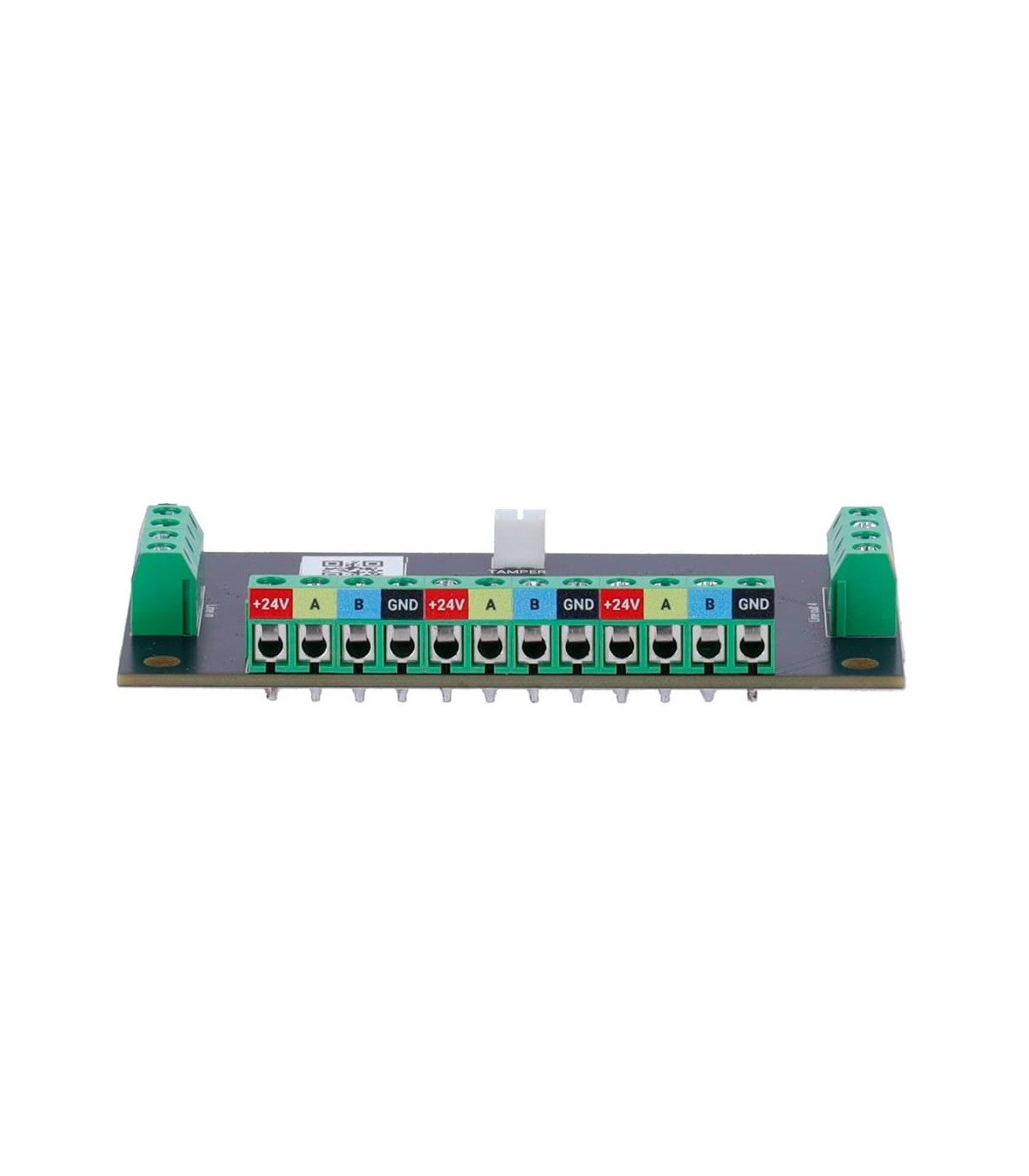

Module to split a Fibra line in four
Product reserved for professional Ajax certified installers
- Fibra Protocol
- Grade 3 approved
- Cable range up to 2.000 meters
- Installation at any point of the bus,
- Even behind another LineSplit
Reference:
FIBRA-LINESPLIT
Brand:
Add to compare0
Add to wishlist
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Bus connection | 4 wire cable |
| Tamper-resistant opening | Available (connected to the housing) |
| Termination resistor jumper | Available |
| Number of output lines | 4 |
| Number of input lines | 1 |
| Power | 24 VDC of fiber bus |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |
| Temp. operation | -10 ºC ~ 40 ºC |
| Dimensions | 50 (H) x 90 (W) x 15 (D) mm |
| Weight | 34 g |
