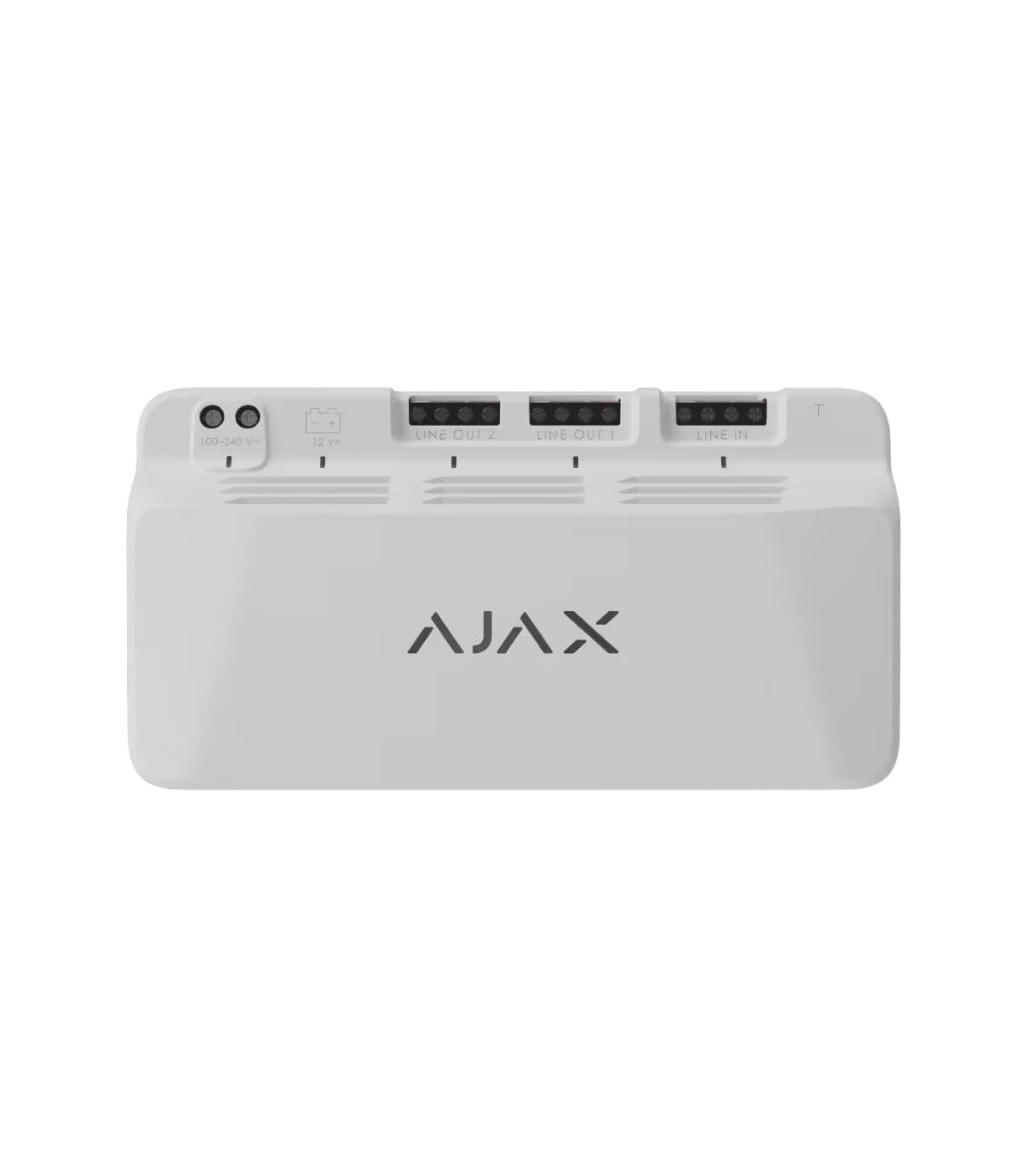

Module for additional fiber bus power supply White colour
Product reserved for professional Ajax certified installers
- Module for additional fiber bus power supply
- Output power of 75 W
- Grade 3 approved
- Extends the range up to 2.000 meters more
- Up to 10 modules per bus
- Main supply to 230 VAC
Reference:
FIBRA-LINESUPPLY-75W-W
Brand:
Add to compare0
Add to wishlist
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Bus connection | 4 wire cable |
| Tamper-resistant opening | Available (connected to the housing) |
| Number of output lines | 2 |
| Number of input lines | 1 |
| Main power supply | 230 VAC |

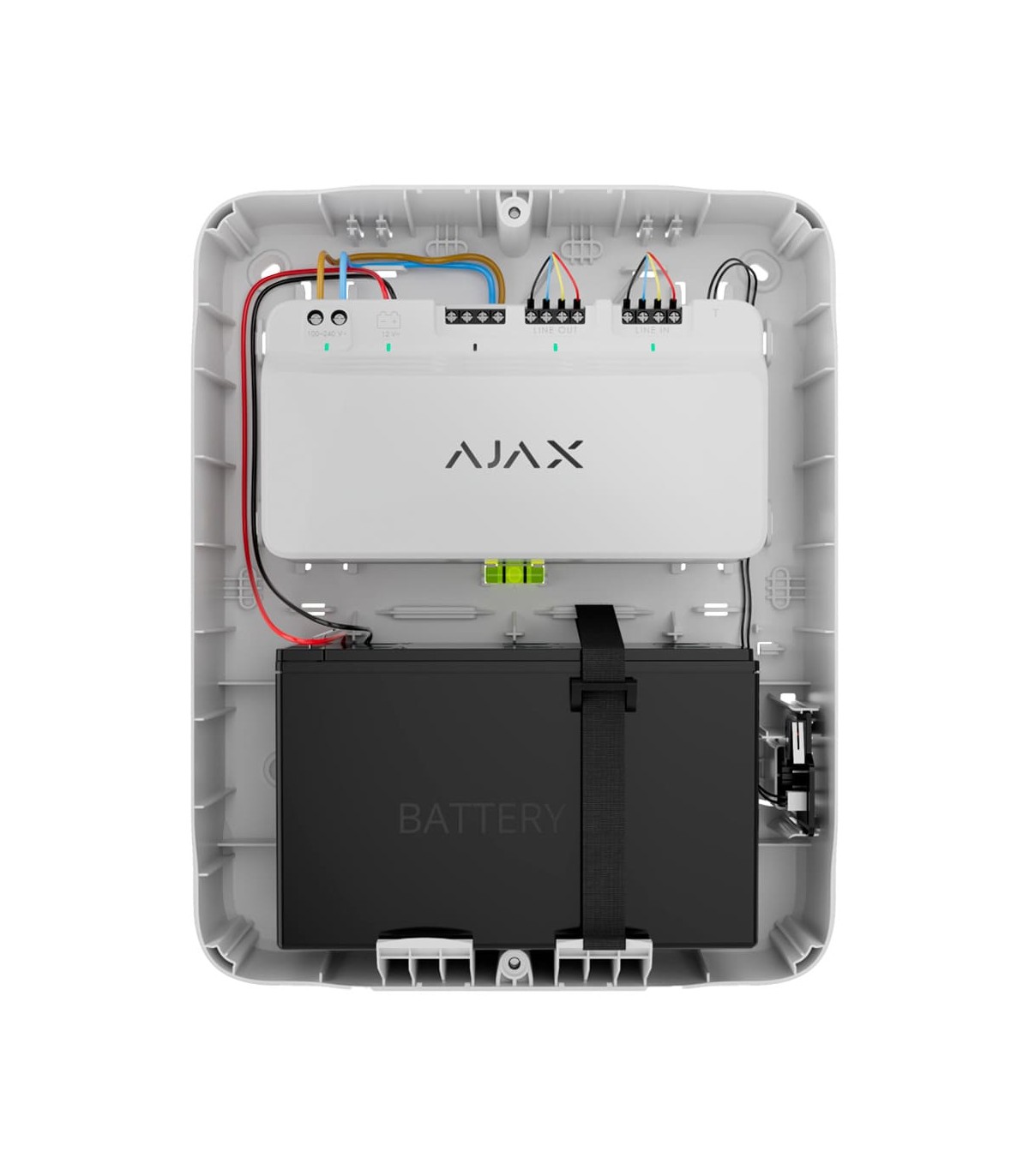

| Backup battery | Connector for 12 VDC battery with a capacity of 7 to 18 Ah |
| Output power | 30 W per Fibra bus output and 15 W for battery back-up. Total 75 W of output power. |
| Modules per bus | Up to 10 modules per bus |
| Ventilation | Passive ventilation system |
| Protection | Surge and short-circuit protection |
| Power | AC 110~240 V, 50/60 Hz |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |

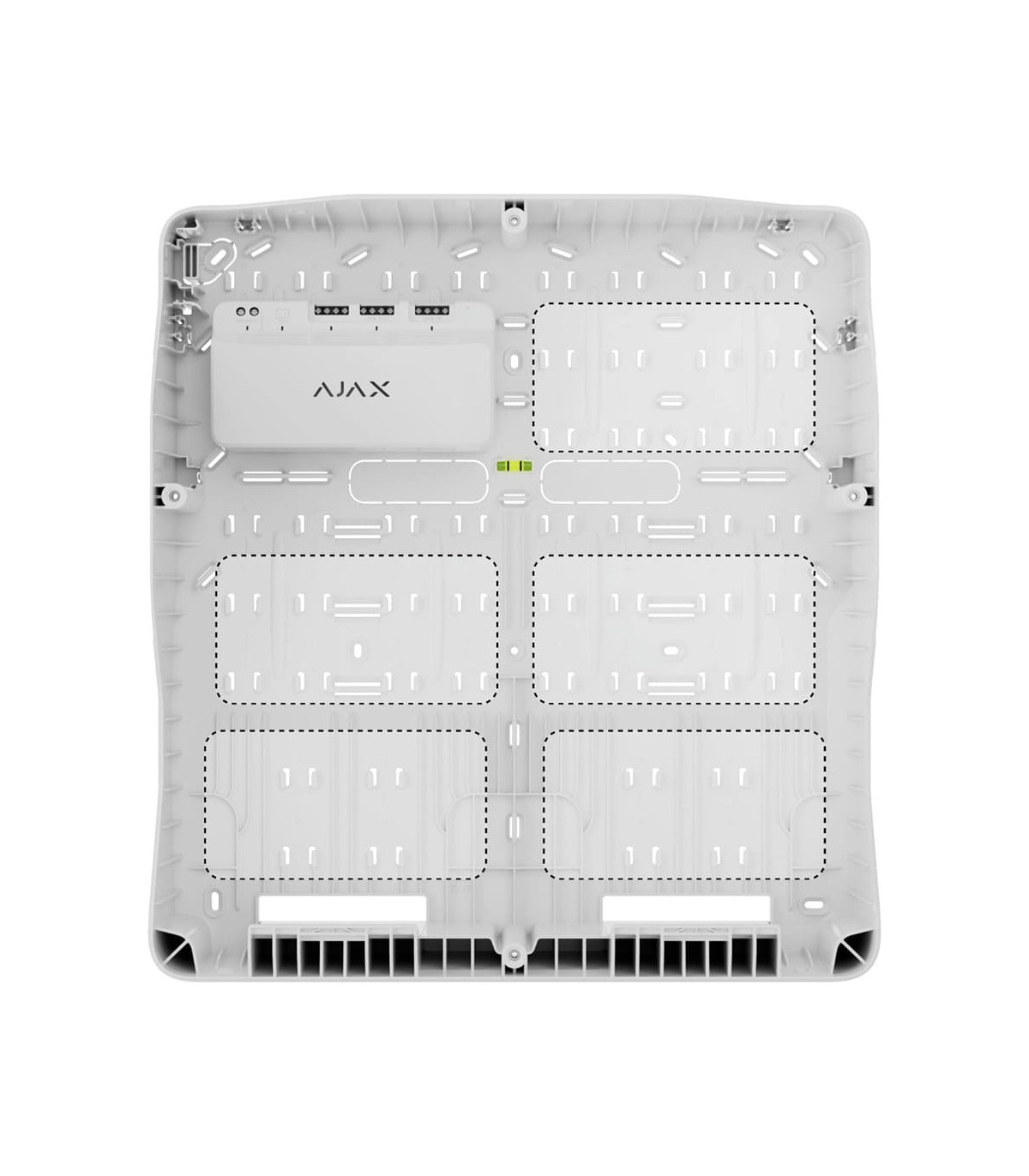

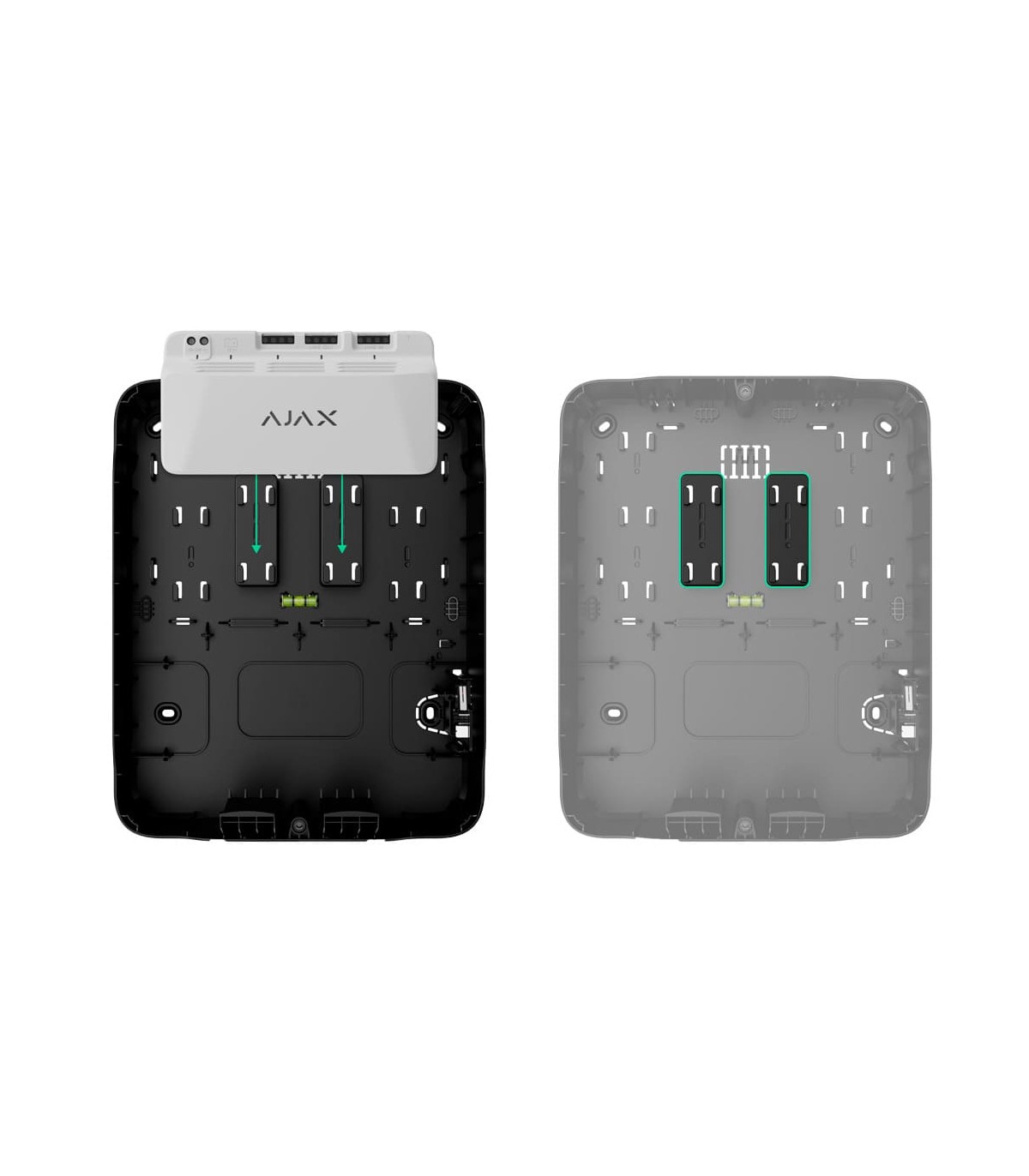

| Compatible housings | FIBRA-CASE-C260-W y FIBRA-CASE-D430-W |
| Temp. operation | -10 ºC ~ 40 ºC |
| Dimensions | 85 (H) x 160 (W) x 53 (D) mm |
| Weight | 456 g |
| Colour | White |
