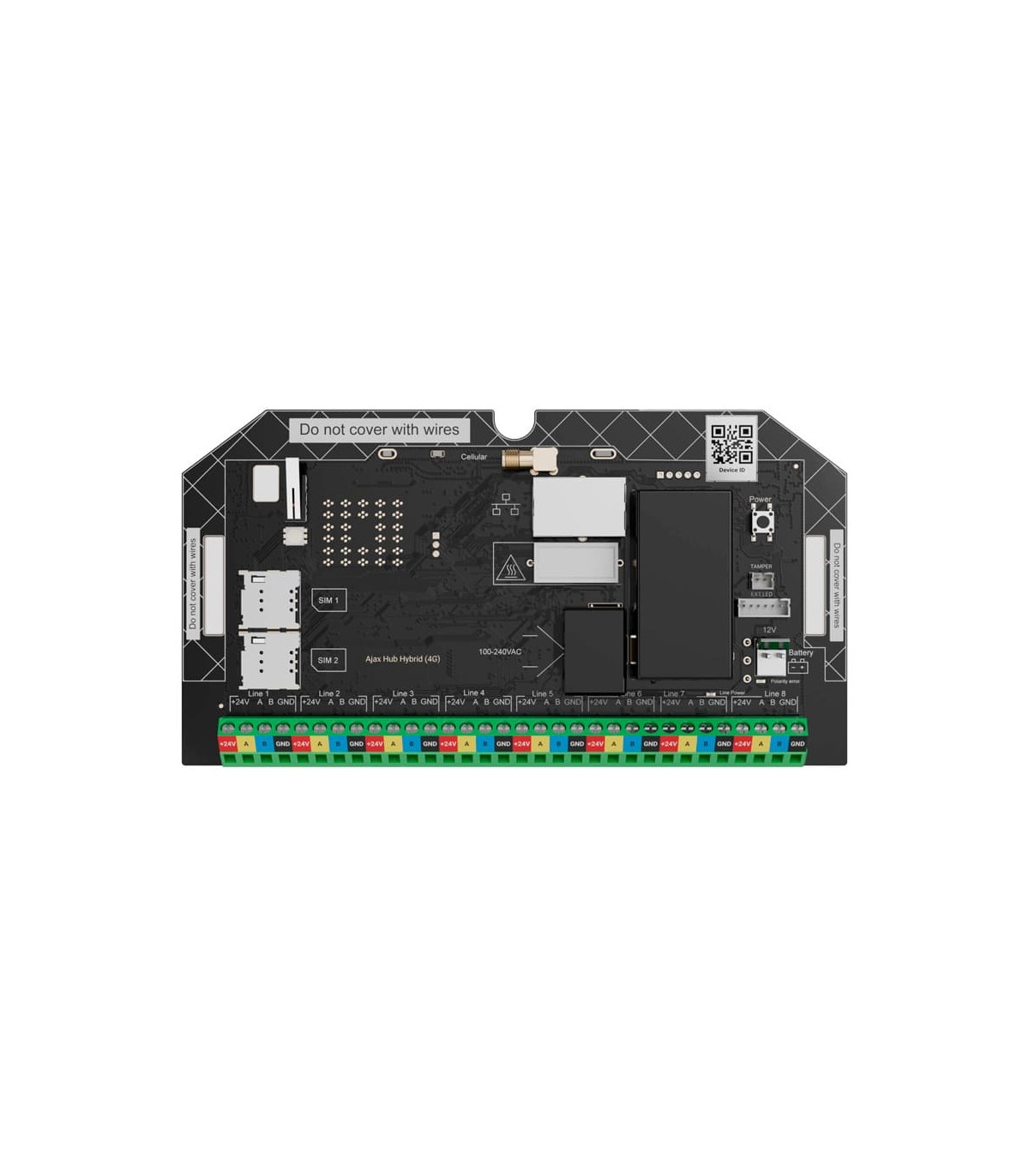

Professional Grade 3 Alarm Panel Ajax

Hybrid wireless and wired alarm center for professional residential and commercial installations. Communication is via Ethernet and/or Dual SIM 4G. The supervised bidirectional link of detectors and accessories is done by radio frequency or cable communication following its own protocols, Jeweller, Wings (868 MHz) and Fiber, obtaining the 3 Grade certification.

The wireless link achieves great reliability thanks to its advanced Jeweller protocol with high security AES encryption. The unique instant and intelligent monitoring system detects inhibition of the signal identifying a specific downtime and in turn reduces maintenance costs as it significantly extends the life of the batteries of the detectors without compromising security. The wireless signal is able to cover distances up to 2 km in open space. It also includes features to facilitate installation, such as the SmartBracket or the simple linking of the detectors to the alarm system.

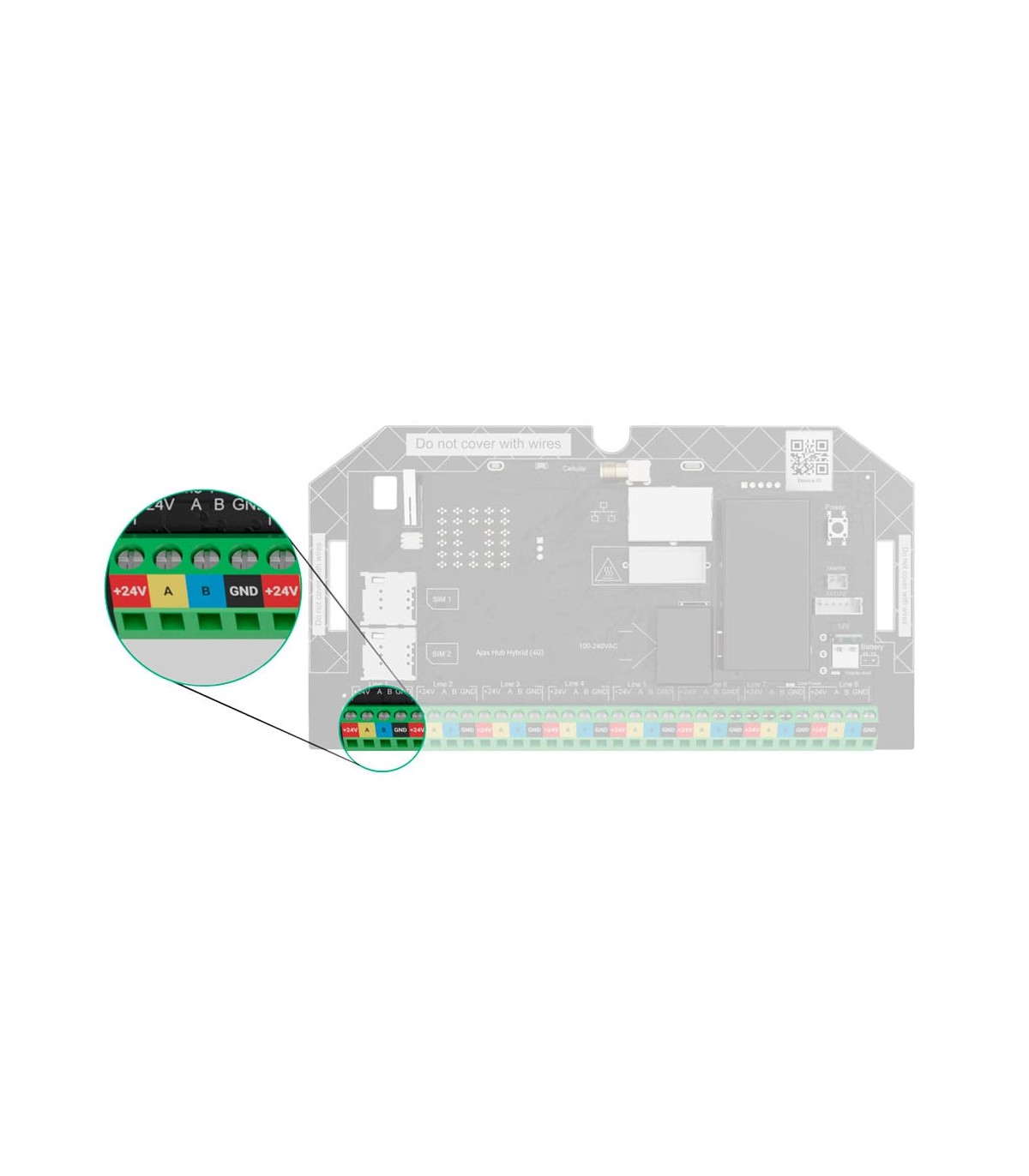

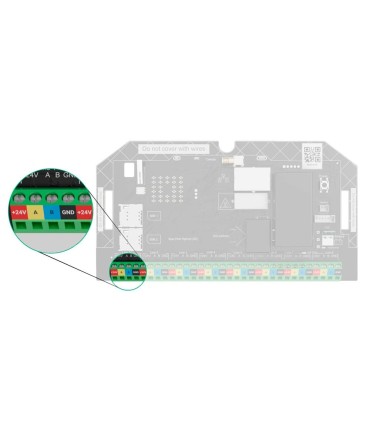

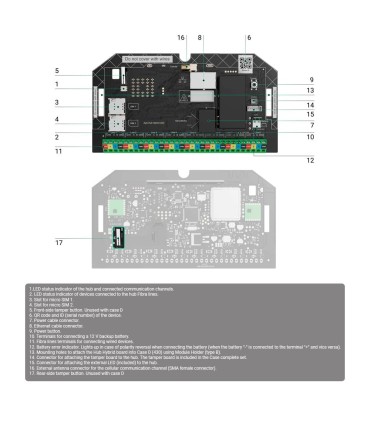

On the other hand, Fibra cable communication expands the possibilities of installation in metal and concrete structures. It has 8 bus inputs with 4 wire cable, providing a range per line of up to 2 km. Accepts bus, star and ring connection topologies to fit any type of installation.

It allows up to 100 wireless and wired zones, allowing the possibility of grouping these devices in up to 9 different groups, on which the different actions of arming, partial arming, disarming, etc. can be performed. These Ajax devices have different possible configurations such as 24 hours zone, zone with entry or exit delay...

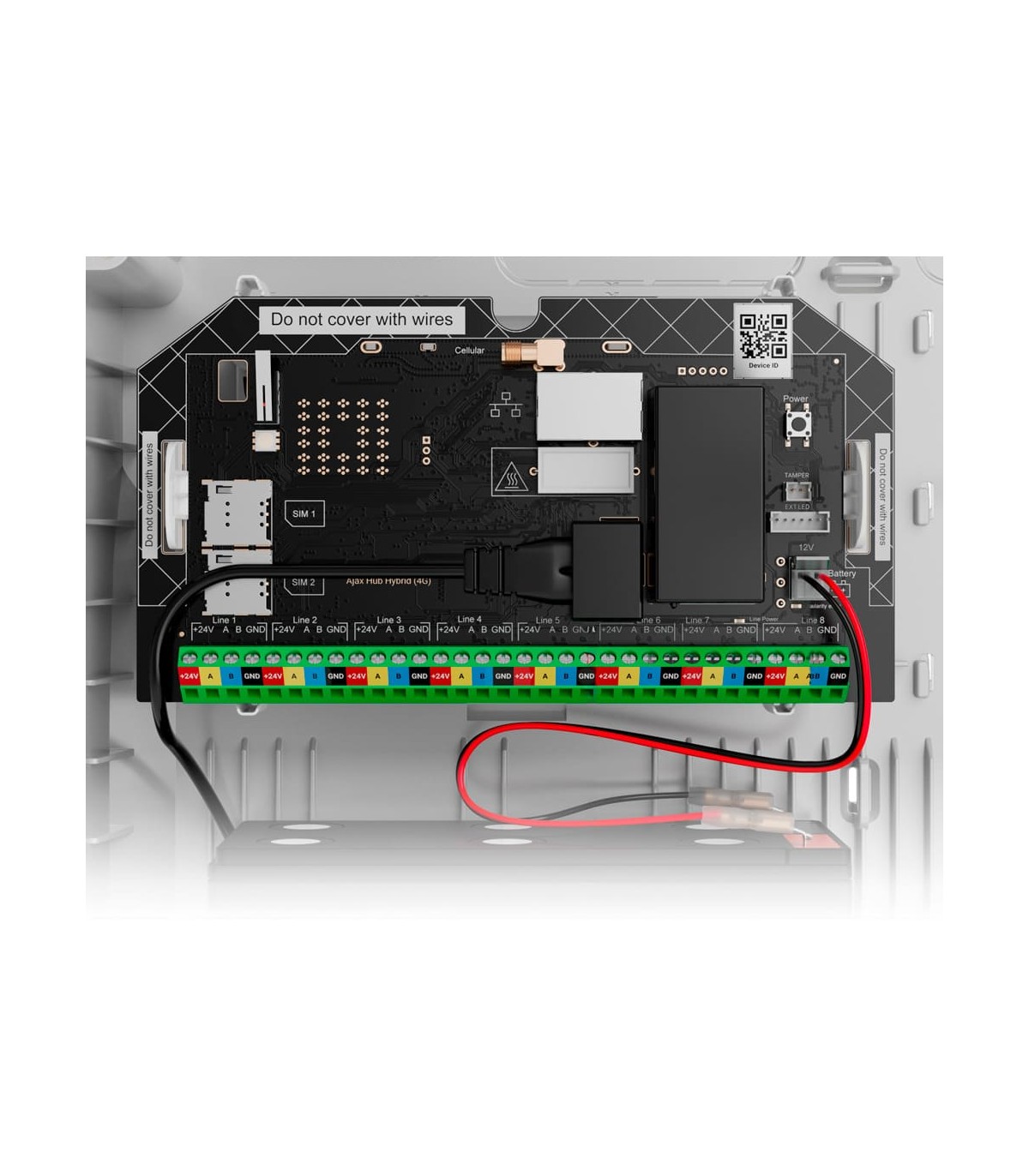

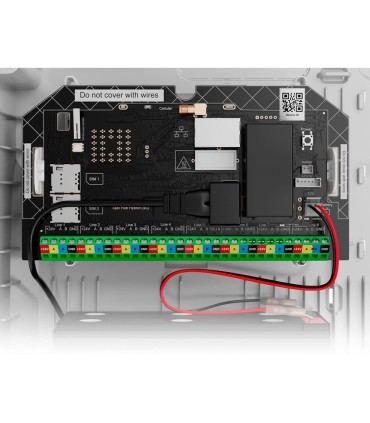

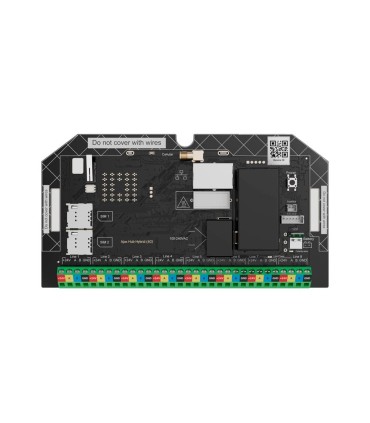

The FIBRA-HUBHYBRID-4G-W panel has an AC 110-250 V power input and an input for a 12 V rechargeable backup battery that lasts up to 60 hours.

The triple Ethernet connection and dual SIM GPRS its the main advantage for remote access, both for the user and for the installer, as it allows connection through the PC software AJAX PRO Desktop and mobile applications for iOS and Android Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the entire system, manage users and their permissions, add devices, group them into rooms and modify their configurations. The use of the cloud is compatible with dynamic IP without opening ports.

The Ajax users will enjoy multiple advantages, as they can receive reliable and instant notifications in both desktop software and mobile applications.

As an additional complement to the Ajax alarm system, up to 25 IP cameras or video recorder channels from different manufacturers can be added from the mobile application to verify the live video stream.
