Ajax
Reference: FIBRA-DOORPROTECT-G3-W
Wired magnetic contact
Vibration sensor, tilt
Magnetic masking
Grade 3 approved
Fibra Protocol
1 wired NC sensor input

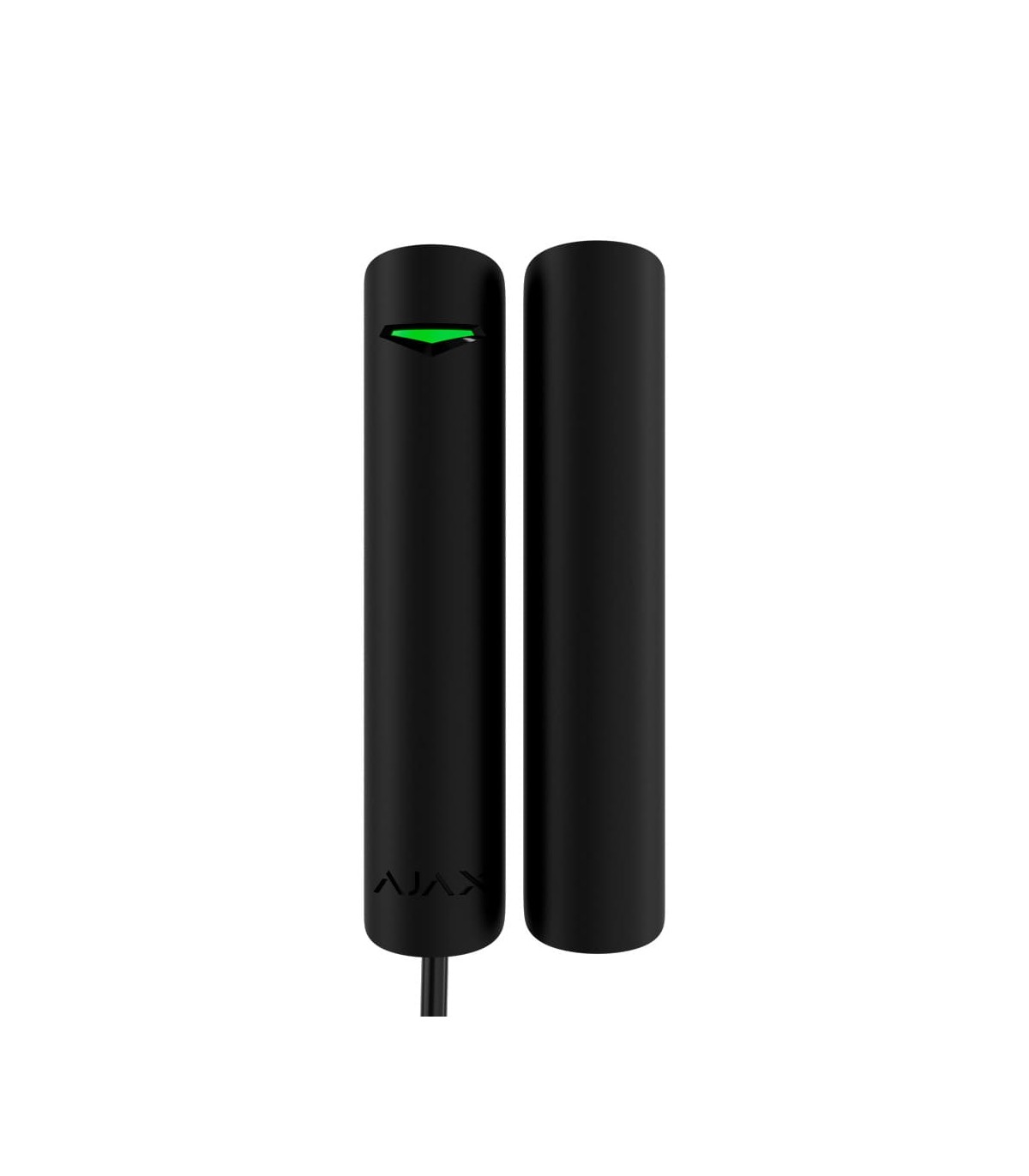

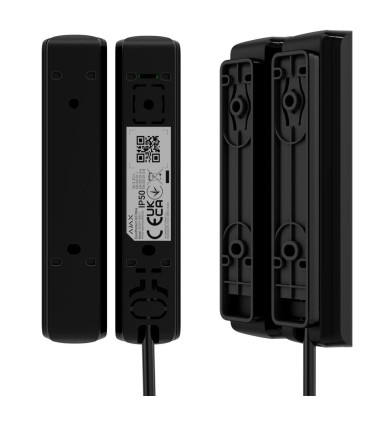

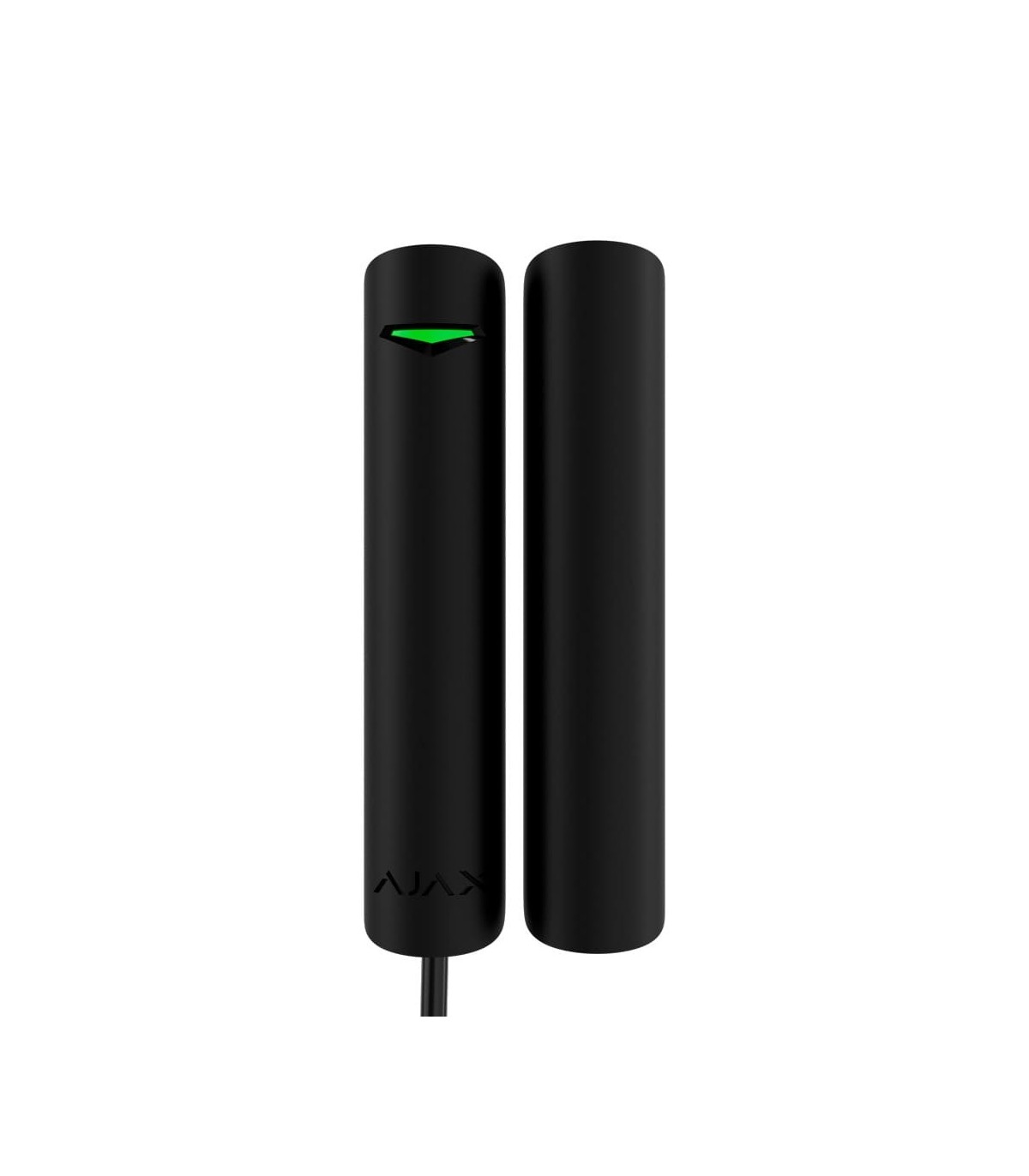

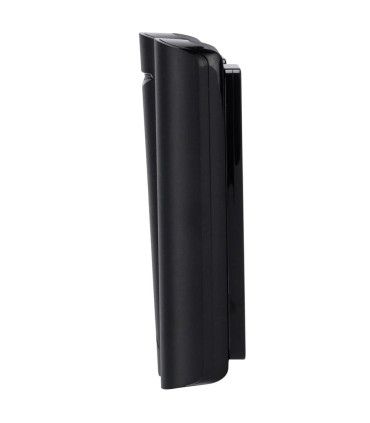

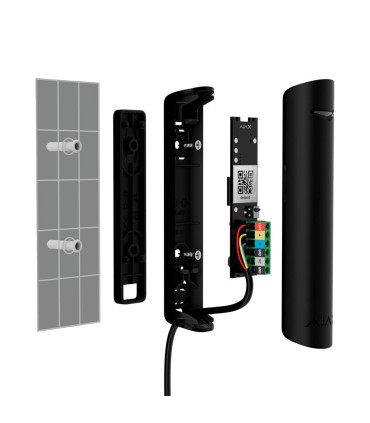

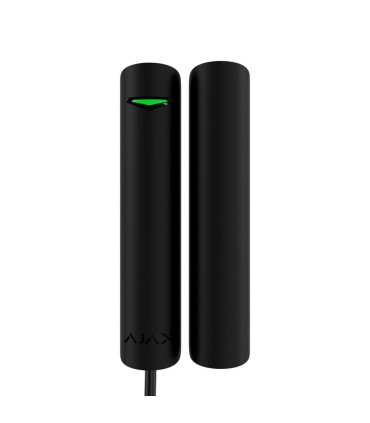

Magnetic wired magnetic contact Vibration sensor, tilt FIBRA
- Wired magnetic contact
- Vibration sensor, tilt
- Magnetic masking
- Grade 3 approved
- Fibra Protocol
- 1 wired NC sensor input
Reference:
FIBRA-DOORPROTECT-G3-B
Brand:
Add to wishlist
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |

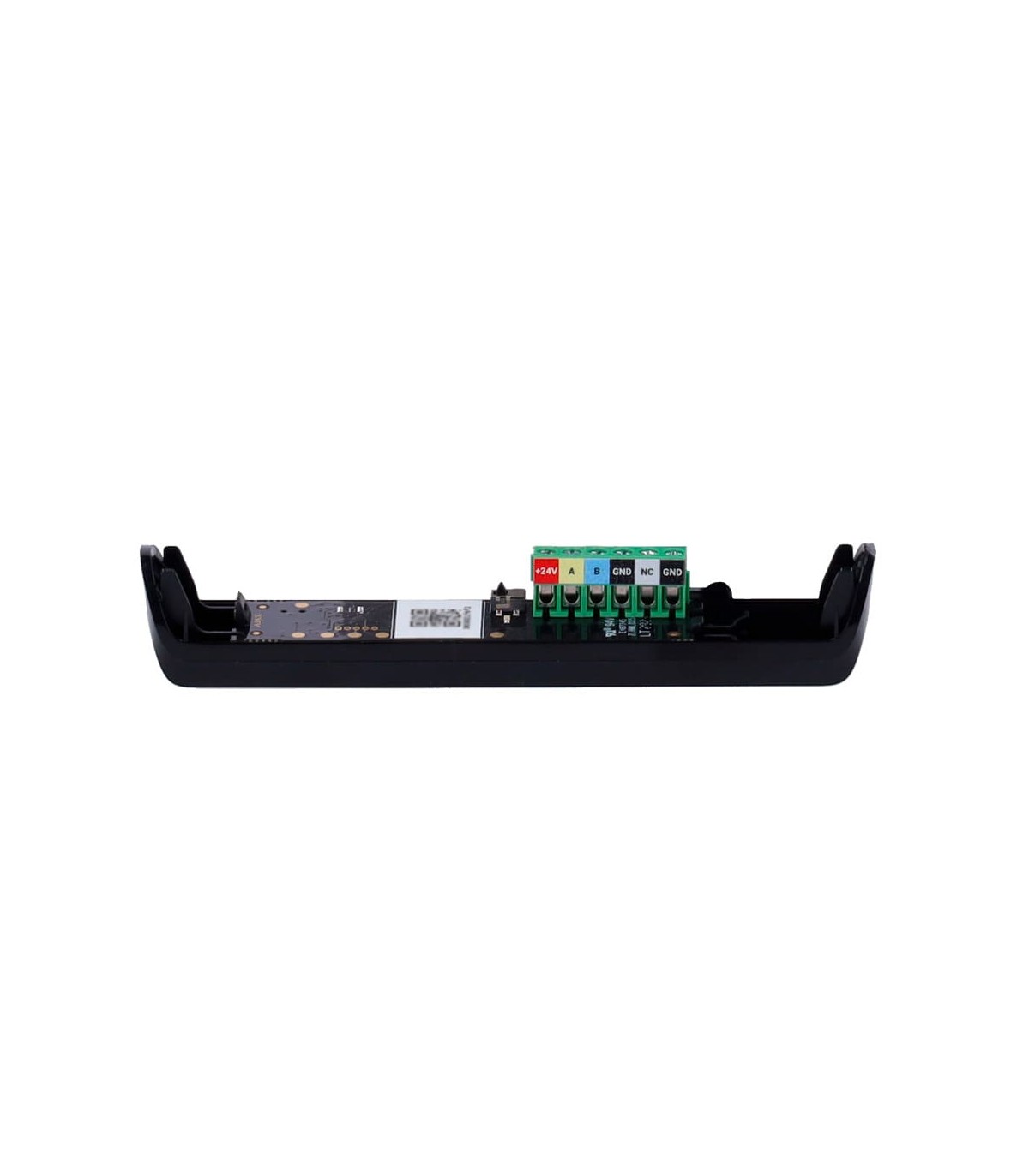

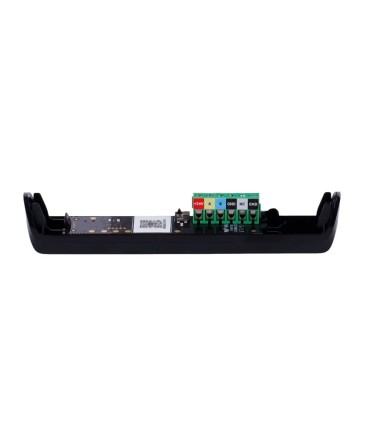

| Bus connection | 4 wire cable |
| Sensors | 1 accelerometer, 1 magnetic masking and 2 reed relays |
| Impact sensor sensitivity | 3 levels |
| Tilt sensor activation threshold | From 5° to 25° |

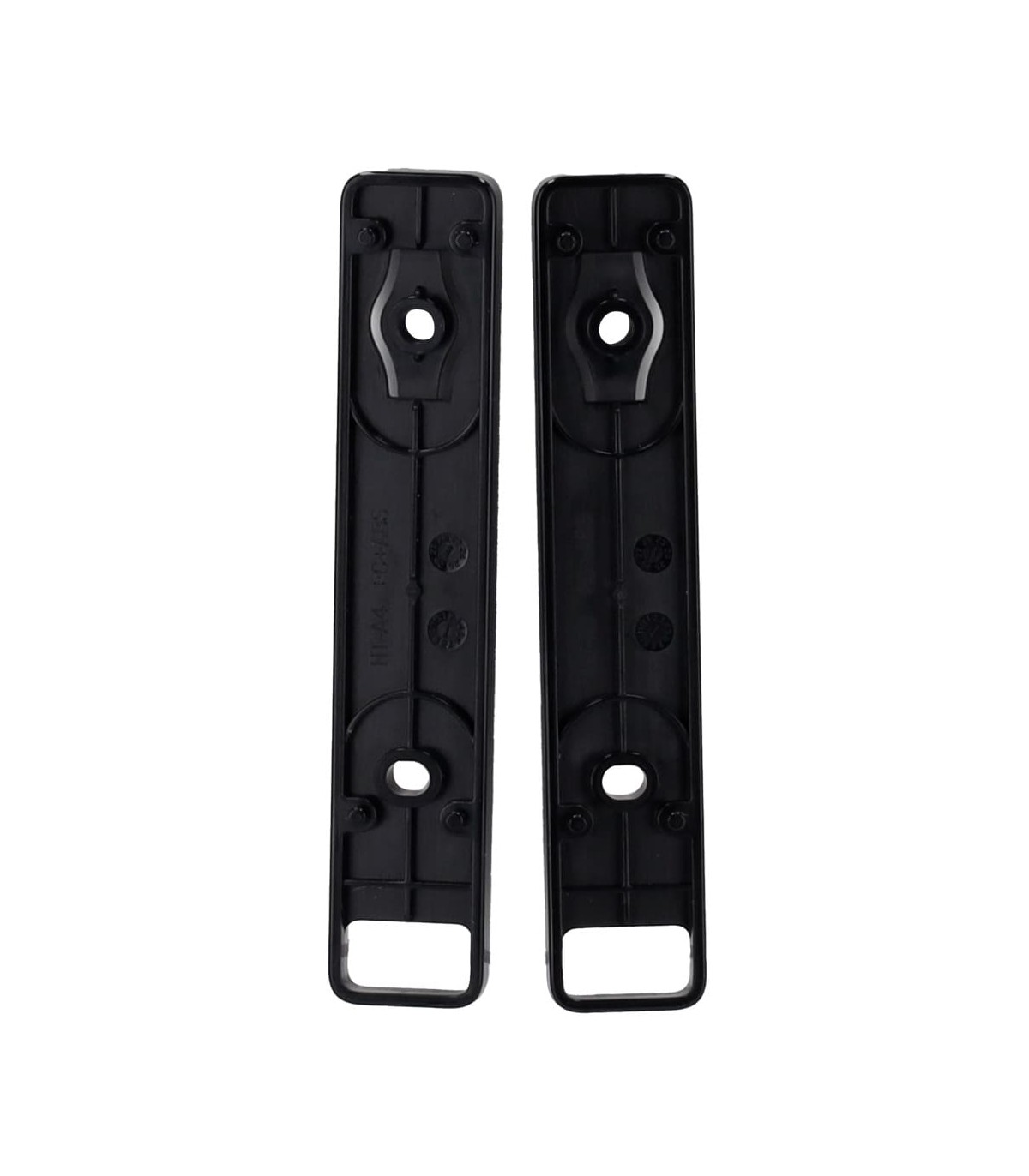

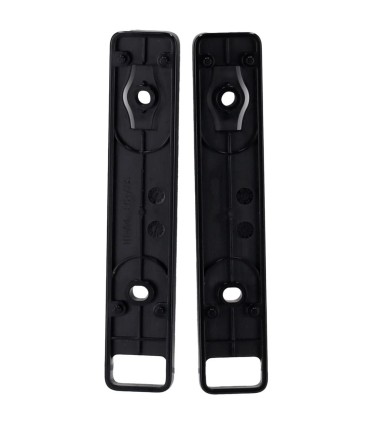

| Spacers for metal surfaces | 2 |
| Tamper | 2 |
| Additional detector connection | Wired detectors with normally closed contact type (NC) |
| Power | 24 V DC (up to 35 mW) |
| Temp. operation | -10º C ~ +40º C |
| Housing material | ABS plastic |
| Magnet dimensions | 102 (Al) × 21 (W) × 19,2 (D) mm |
| Colour | Black |
