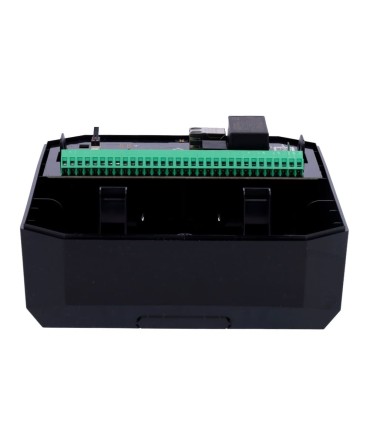

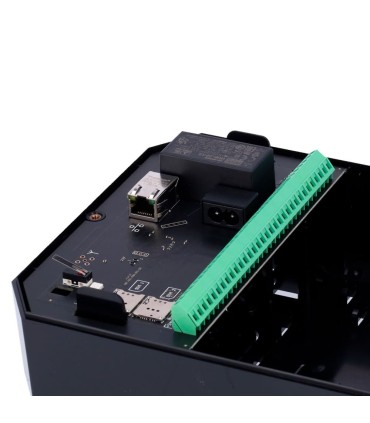

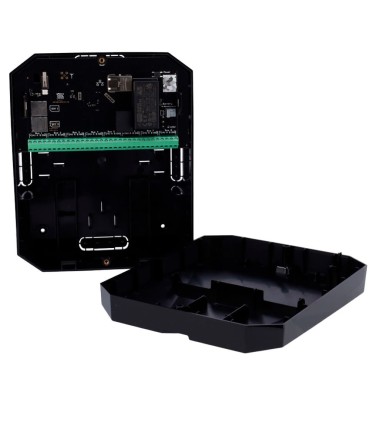

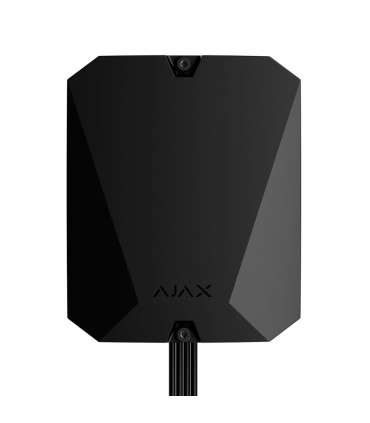

Professional AJAX Grade 3 black alarm panel

Hybrid wireless and wired alarm centre for professional residential and commercial installations. Communication is via Ethernet and/or GPRS with Dual SIM. The supervised bidirectional connection of detectors and accessories is made by radio frequency or wired communication following its own protocols, Jeweller, Wings (868 MHz) & Fibra, obtaining Grade 3 certification.

The wireless connection achieves high reliability thanks to its advanced Jeweller protocol with highly secure AES encryption. The unique intelligent instantaneous monitoring system detects signal inhibition by identifying a certain downtime and reduces maintenance costs by significantly extending the detectors' battery life without compromising security. The wireless signal is capable of covering distances of up to 2 km in open space. It also includes functions to facilitate installation, such as the Smart-Bracket or the simple connection of the detectors to the alarm system.

On the other hand, cable communication extends the possibilities of installation in metallic and concrete structures. It has 8 bus inputs with 4-wire cable, reaching a range per line of up to 2 km. It accepts bus, star and ring connection topologies to adapt to any type of installation.

It allows up to 100 zones, both wireless and wired, enabling the possibility of grouping these devices in up to 9 different groups, in which the different arming, partial arming and disarming actions can be performed. These Ajax devices have different possible configurations, such as 24-hour zone, zone with entry or exit delay.

The FIBRA-HUBHYBRID-W panel has an AC 110-250 V power input and an input for a 12 V rechargeable backup battery with a lifetime of up to 60 hours.

The triple Ethernet and double SIM GPRS communication is its main advantage for remote access, both for the user and the installer, as it allows connection via the AJAX PRO Desktop PC software and the mobile applications for iOS and Android Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the entire system, manage users and their permissions, add devices, group them and modify their settings. The use of the cloud is compatible with dynamic IP without the need to open ports.

The Ajax user will benefit from multiple advantages, as he will be able to receive reliable and instant notifications both in the desktop software and in the mobile applications.

As an additional complement to the Ajax alarm system, up to 25 IP cameras or video recorder channels can be added from the mobile app for live monitoring of the alarm system.
