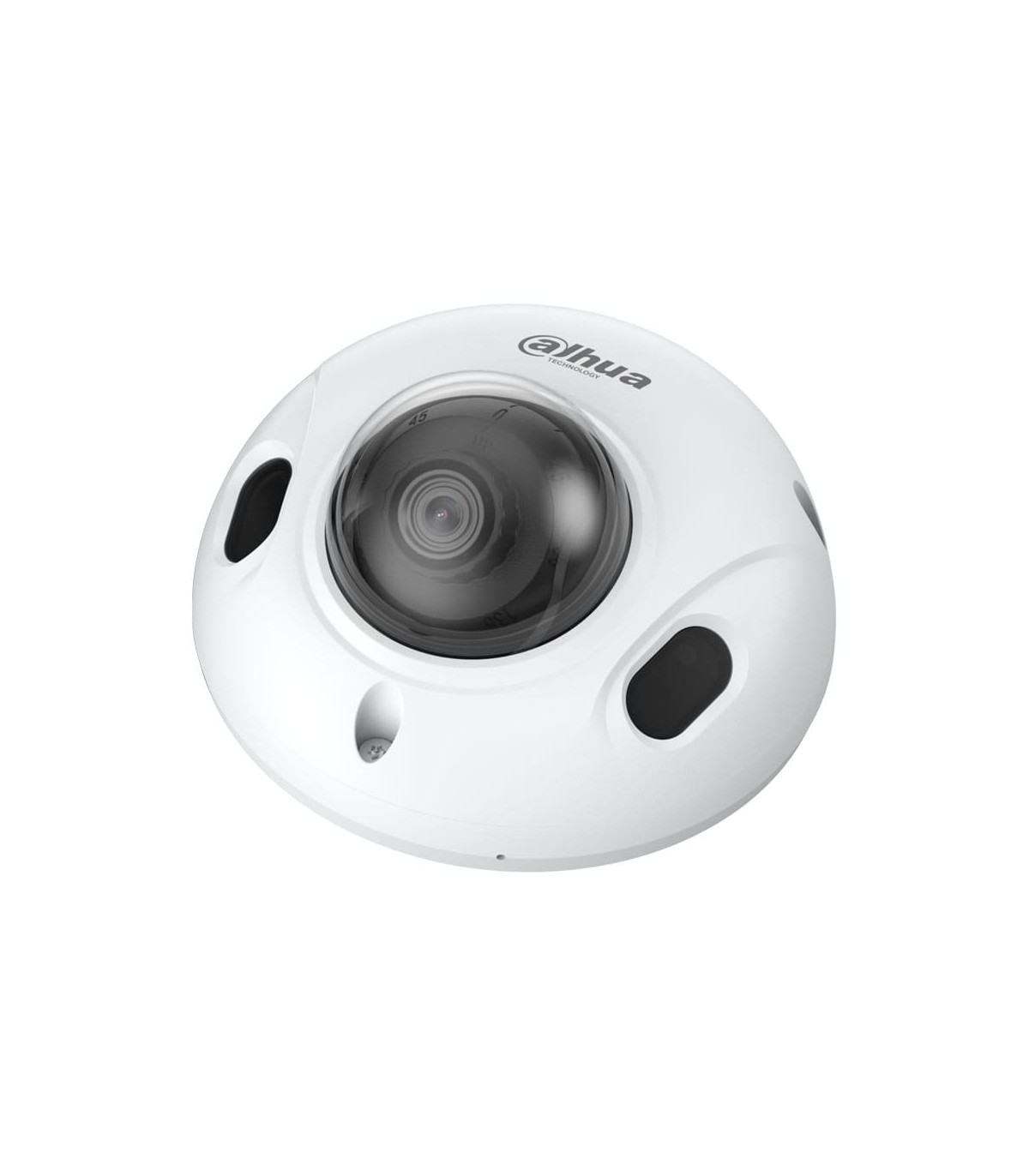

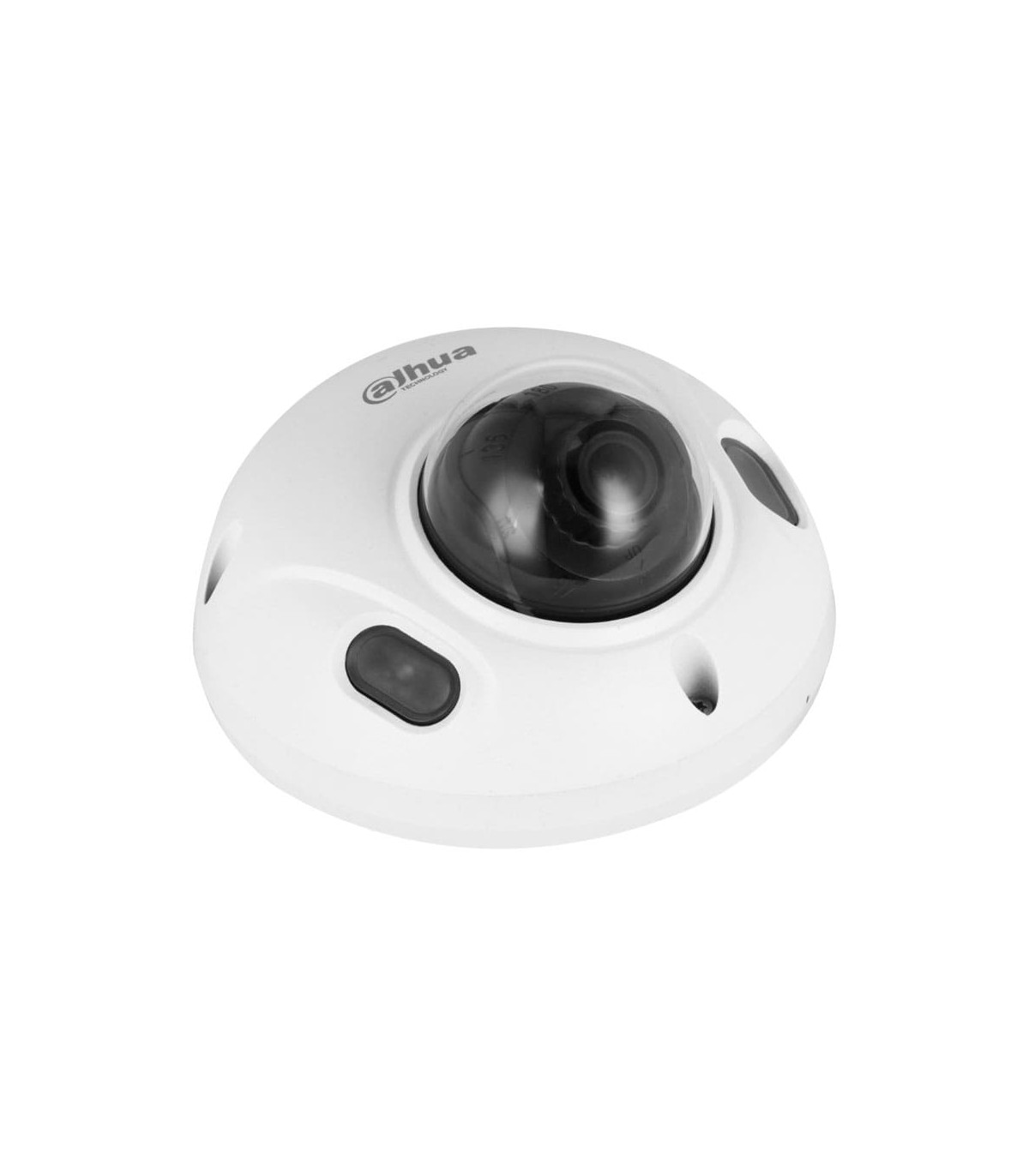

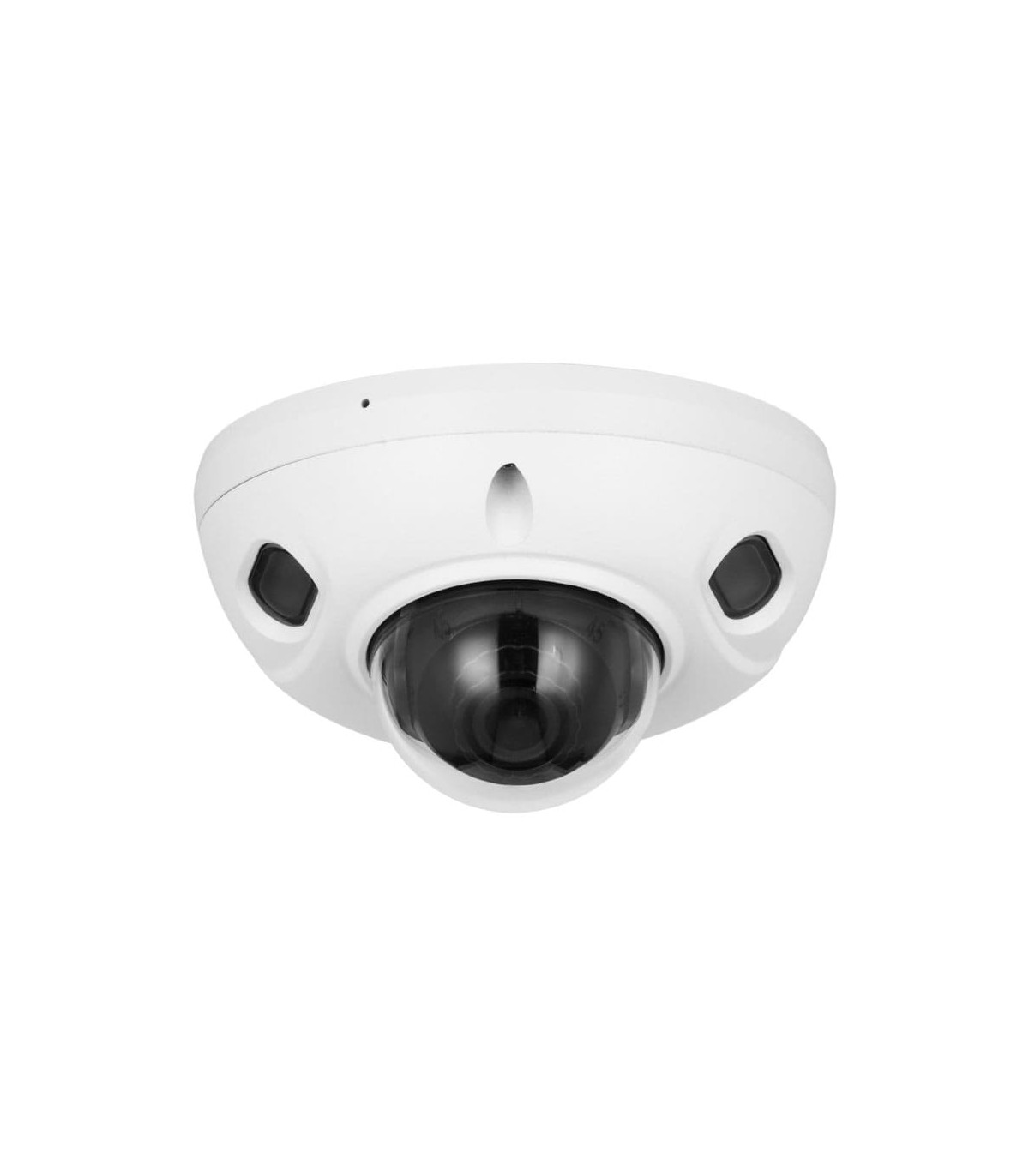

IPC-HDBW3541F-AS-S2 - 5MP Outdoor IP Dome

5-megapixel 1/2.7" CMOS sensor

Compression formats: AI H.265, AI H-264, Smart H.265+, Smart H.264+, H.265, H.264, H.264, MJPEG

Digital resolution: 5MP (2880x1620, 2960x1668), 4MP (2688x1520), 3.6MP (2560x1440), 3MP (2048x1536, 2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)

Stream 1: 4MP (1~20 ips), 4MP (1~25/30 ips)

Stream 2: D1 (1~25/30 fps)

Stream 3: 1080P (1~25/30 ips)

Day/Night mode with removable mechanical filter

Smart IR: 2 IR LEDs, 30 meters range

0.005 lux F1.4 (color), 0.0005 lux F1.4 (B/W), 0 lux IR On

2.8 mm fixed optics

Angle of view: 111°(H), 58°(V), 132°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, AFSA, Mirror, Defog

White balance with 6 modes

Automatic gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask

Perimeter protection with cross-line detection and intrusion detection (both modes support person/vehicle classification)

Built-in microphone

1 RCA audio input / 1 output

1 alarm input / 1 alarm output

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP;TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

ONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec, SDK and API support

Up to 20 users

Remote viewing via IE11, Chrome and Firefox browsers

Smart PSS, DSS, DMSS management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af)

Maximum power consumption: 5.9W (12V) / 7.2W (PoE)

Storage temperature from -40°C ~ +60°C

Operating temperature -40°C ~ +60°C (-40°C ~ +60°C)

Relative humidity: <95%.

IP67 degree of protection

Vandal protection IK10

Metal housing

Dimensions: Ø111 x 64.8 (H) mm

Gross weight: 540 g

Net weight: 423 g

3AXIS: 0°~355°(PAN), -20°~70°(TILT), 0°~355°(Rotation)
