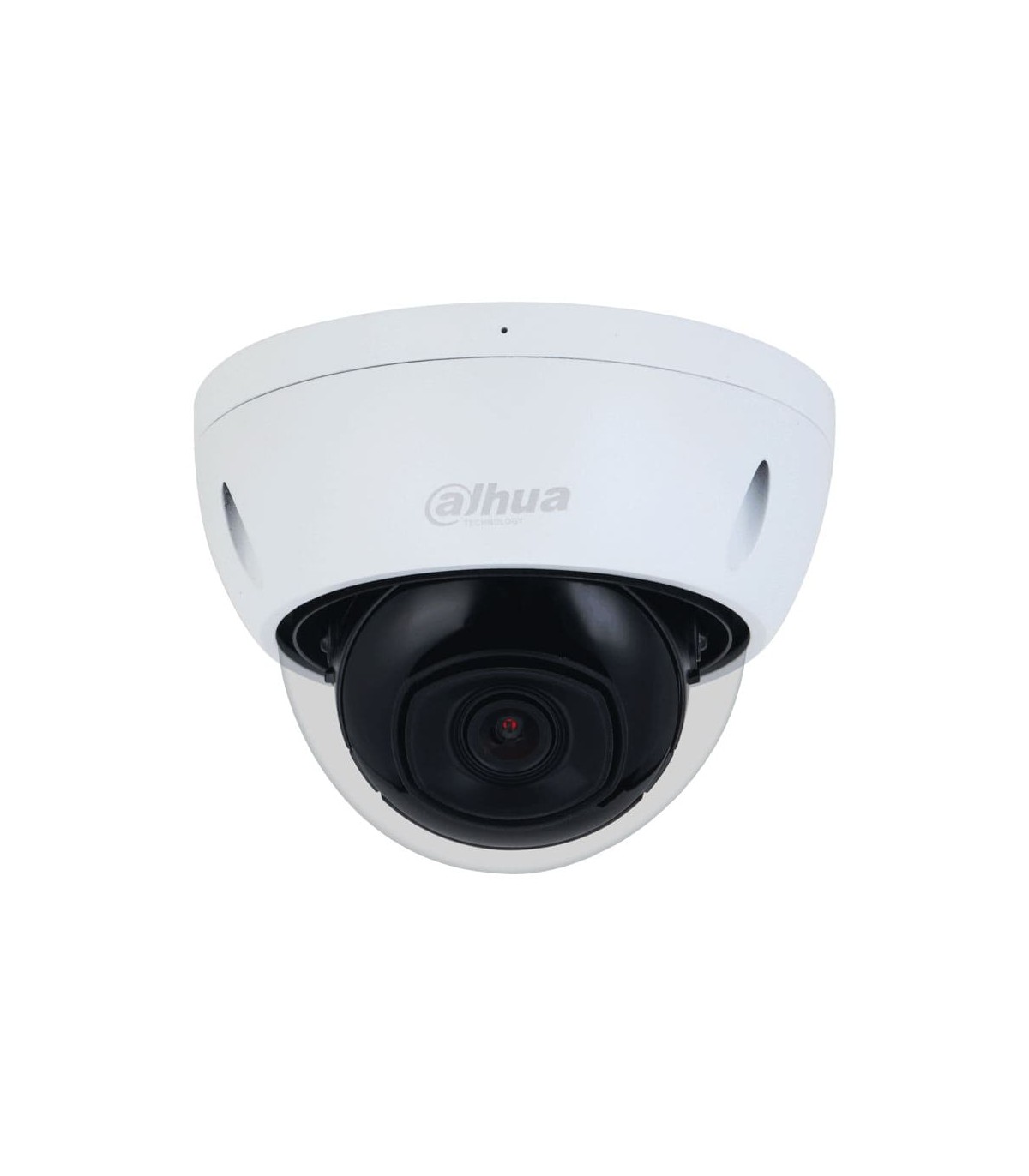

IPC-HDBW2441E-S - WizSense 4MP outdoor IP dome

4 megapixel 1/2.9" CMOS sensor

Compression formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG

Digital resolution: 4MP (2688x1520), 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480),

CIF (352x288)

Stream 1: 4MP (2688x1520, 1~20 ips), 4MP (2560x1440, 1~25/30 ips)

Stream 2: D1 (1~25/30 ips)

Day/night mode with removable mechanical filter

Smart IR: 3 IR leds, 30 meters

0.008 lux F1.6 (color), 0.0008 lux F1.6 (B/W), 0 lux IR on

2.8 mm fixed optics

Angle of view: 102°(H), 54°(V), 121°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.

White balance with 6 modes

Automatic and manual gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy masking

Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)

SMD Plus

Built-in microphone

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP,

SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP

ONVIF (Profile S/G), CGI, P2P, SDK and API support

Up to 6 users

Remote viewing via IE, Chrome, Firefox browsers

DSS, DMSS management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af)

Maximum power consumption: 5W (12V) / 6W (PoE)

Operating temperature from -40°C ~ +60°C

Relative humidity: <95%.

IP67 degree of protection

Vandal resistant IK10 protection

Metal housing

Dimensions: Ø109.9 x 81 (H) mm

Weight: 340 g

3AXIS: 0°~355°(PAN), 0°~65°(TILT), 0°~355°(Rotation)
