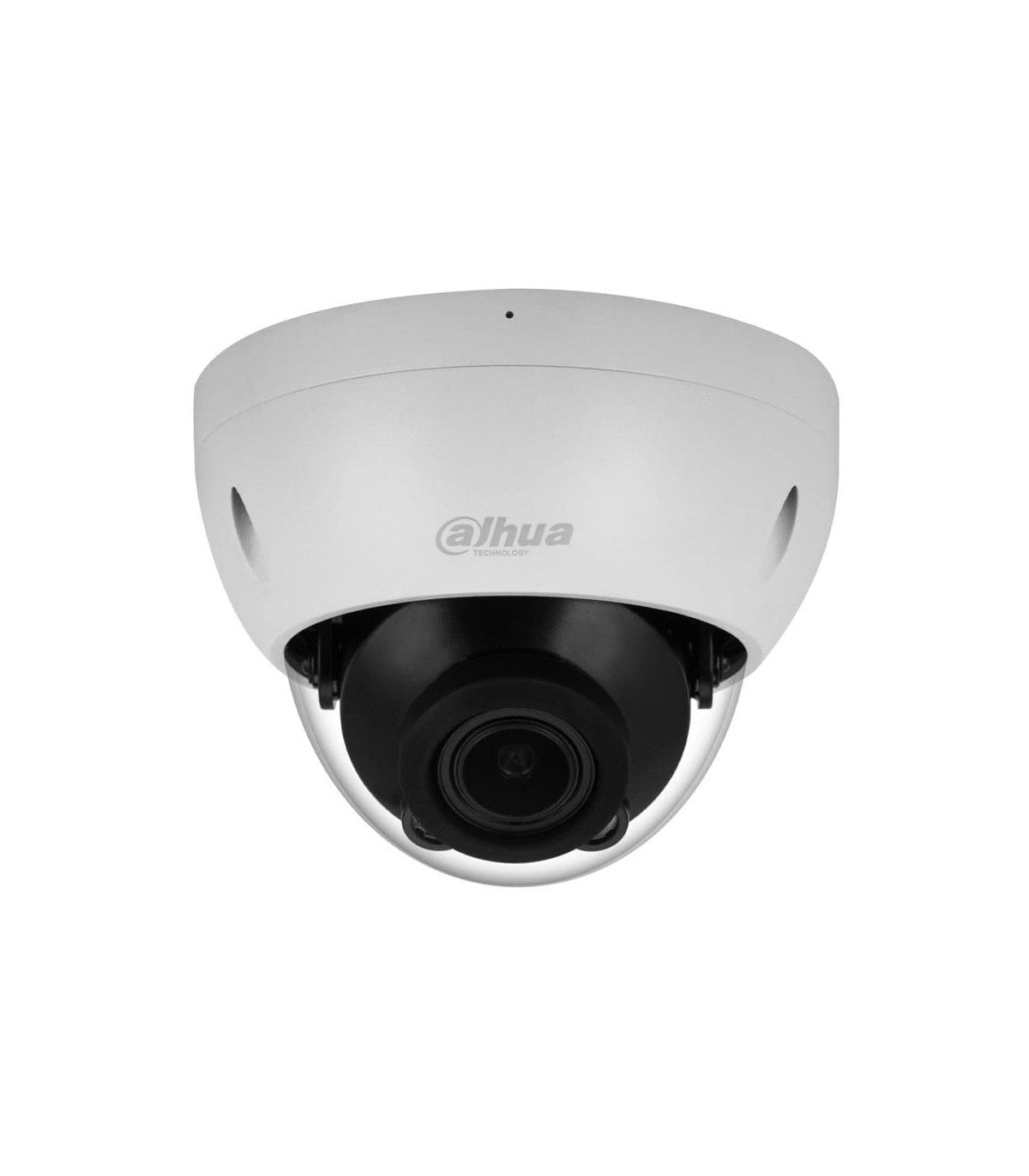

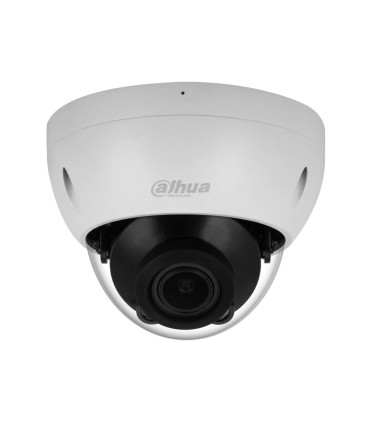

IPC-HDBW2441R-ZS - WizSense 4MP vandal-resistant outdoor IP dome

4 megapixel 1/2.9" CMOS sensor

Compression formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG

Digital resolution: 4MP (2688x1520), 3.6MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)

Stream 1: 4MP (1~20 fps), 3.6MP (1~25/30 fps)

Stream 2: D1 (1~25/30 ips)

Day/Night mode with removable mechanical filter

Smart IR: 2 IR leds, 40 meters

0.008 lux F1.5 (color), 0.0008 lux F1.5 (B/W), 0 lux IR on

2.7~13.5 mm motorized optics

Angle of view: 104°~29°(H), 54°~16°(V), 125°~34°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.

White balance with 6 modes

Automatic and manual gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask

Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)

SMD Plus

Built-in microphone

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP

ONVIF (Profile S/T), CGI, P2P, Milestone, SDK and API support

Up to 6 users

Remote viewing via IE, Chrome, Firefox browsers

Smart PSS, DSS, DMSS management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af)

Maximum power consumption: 6.4W (12V) / 7.6W (PoE)

Storage temperature from -40°C ~ +60°C

Operating temperature: -30°C ~ +60°C (-30°C ~ +60°C)

Relative humidity: <95%.

IP67 degree of protection

Vandal protection IK10

Metal housing

Dimensions: Ø122 x 93.4 (H) mm

Net weight: 490 g

Gross weight: 660 g

3AXIS: 0°~355°(PAN), 0°~67°(TILT), 0°~355°(Rotation)
