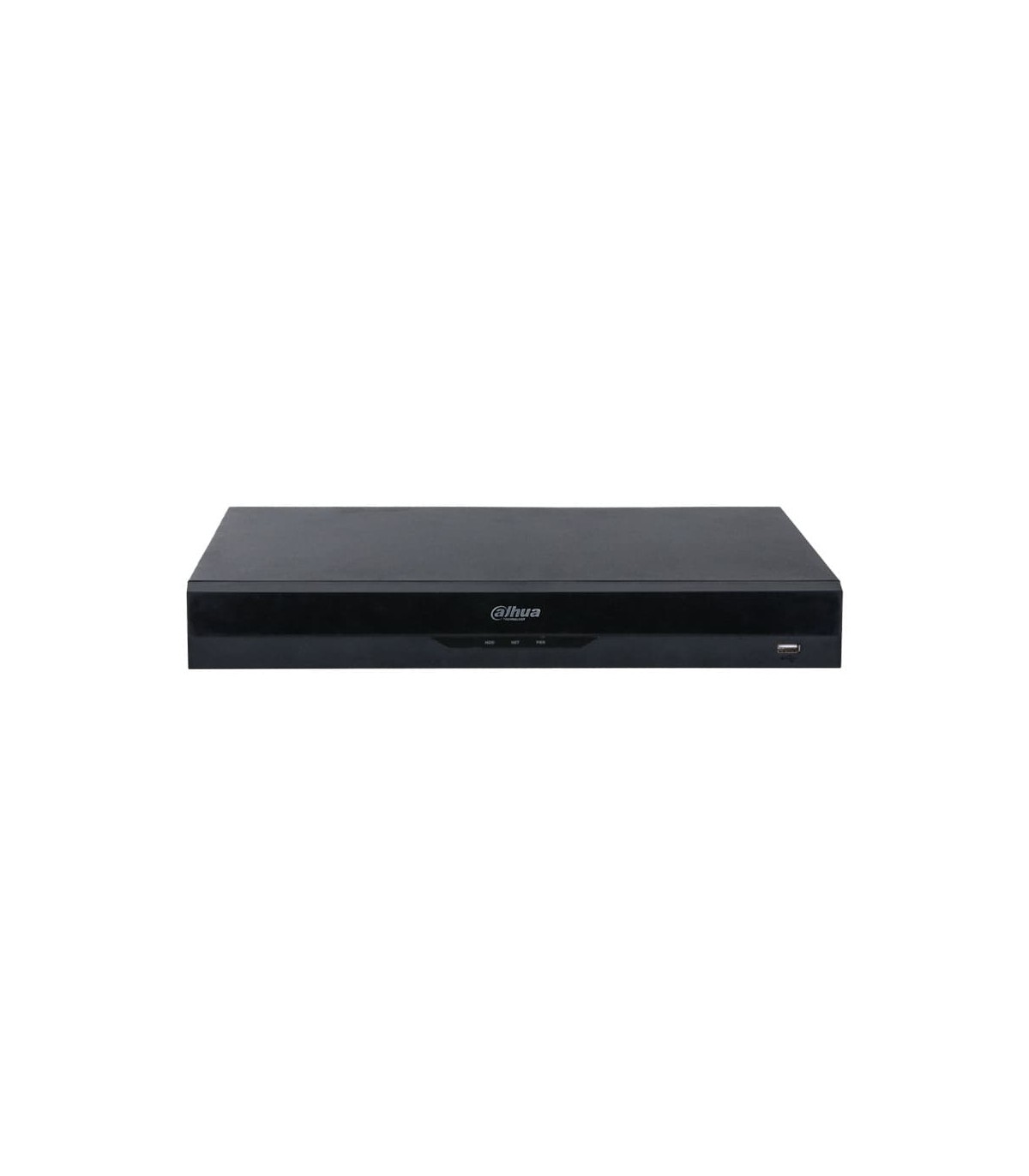

NVR5208-8P-EI - 8-channel IP recorder, 8 PoE

8 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Heterogeneous HDMI (4K) and VGA (1080P) video outputs

Main display output split: 1, 4, 8, 9

Secondary display output division: 1, 4, 8, 9

1 input / 1 output RCA audio

Audio compression: PCM, G.711a, G.711u, G726

Recording resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080P, 720P, D1, CIF, QCIF

Bandwidth with AI off: 384 Mbps input, 384 Mbps for storage and 384 Mbps for output

AI bandwidth on: 200 Mbps input, 200 Mbps storage, 200 Mbps output

Decoding capacity with AI off: 8 channels 8MP (30 ips), 5 channels 12MP (30 ips), 4 channels 16MP (30 ips), 2 channels 24MP (20 ips), 2 channels 32MP (20 ips)

Decoding capacity with AI enabled: 8 channels 5MP (30 ips), 4 channels 8MP (30 ips), 4 channels 12MP (30 ips), 2 channels 16MP (30 ips), 1 channel 24MP (20 ips), 1 channel 32MP (20 ips)

General, motion detection, intelligence, alarm and POS (POS) recording modes

Alarm by video sensor, privacy mask, local alarm

Artificial Intelligence from NVR:

Facial detection: 2 channels, 12 facial images per channel

Facial recognition: 8 channels

Perimeter protection: 4 channels, 10 IVS rules for each channel

SMD Plus: 8 channels

Artificial Intelligence from camera:

Face detection: 8 channels

Face recognition: 8 channels

Video metadata: 8 channels, classification of people, motorized vehicles and non-motorized vehicles

Perimeter protection: 8 channels

SMD Plus: 8 channels

Stereo analysis

Crowd distribution

People counting

ANPR: 8 channels, database of 20,000 license plates

Vehicle density

Heat map

Playback of up to 8 channels

4 alarm inputs / 2 alarm outputs

Internal capacity for 2 SATA HDD up to 16TB (sold separately)

New user interface with easier user experience

Supports perimeter protection and SMD Plus compliant IP cameras

RJ45 Fast Ethernet network port (10/100/1000Mbps)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filtering, PPPoE, FTP, DDNS, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVSs, etc.), Multicast, P2P, Auto Logging, iSCSI

ONVIF 22.06 (Profile T/S/G), CGI and SDK support

Compatible with Chrome, IE, Edge, Safari and Firefox browsers

Compatible with Android and iOS devices

Server Access local network and Internet

Possibility of limiting user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected by TCP/IP

Sending of eMails with photograph attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and to be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS232 port, 1 RS485 port

8 PoE ports (10/100Mbps, ports 1 to 8 support ePoE)

130W PoE delivery

Power supply: 100V ~ 240V AC, 47/63Hz

Consumption: ≤10W (excluding disks)

Storage temperature from -20°C ~ +60°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10%~93%.

Dimensions: 375 (W) x 53 (H) x 329 mm

Gross weight: 3.8 kg

Net weight: 2.57 kg

Size 1U, desktop
