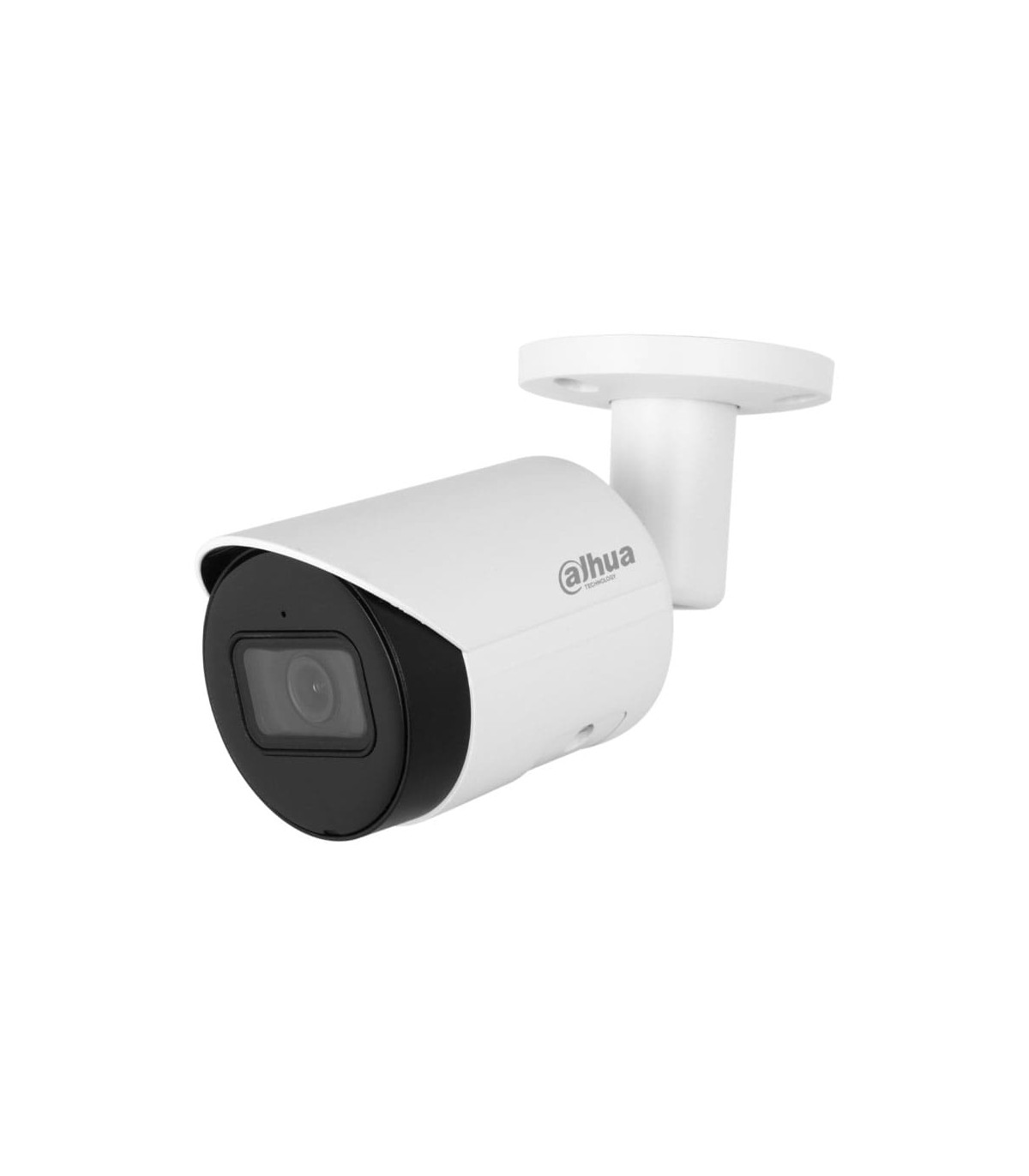

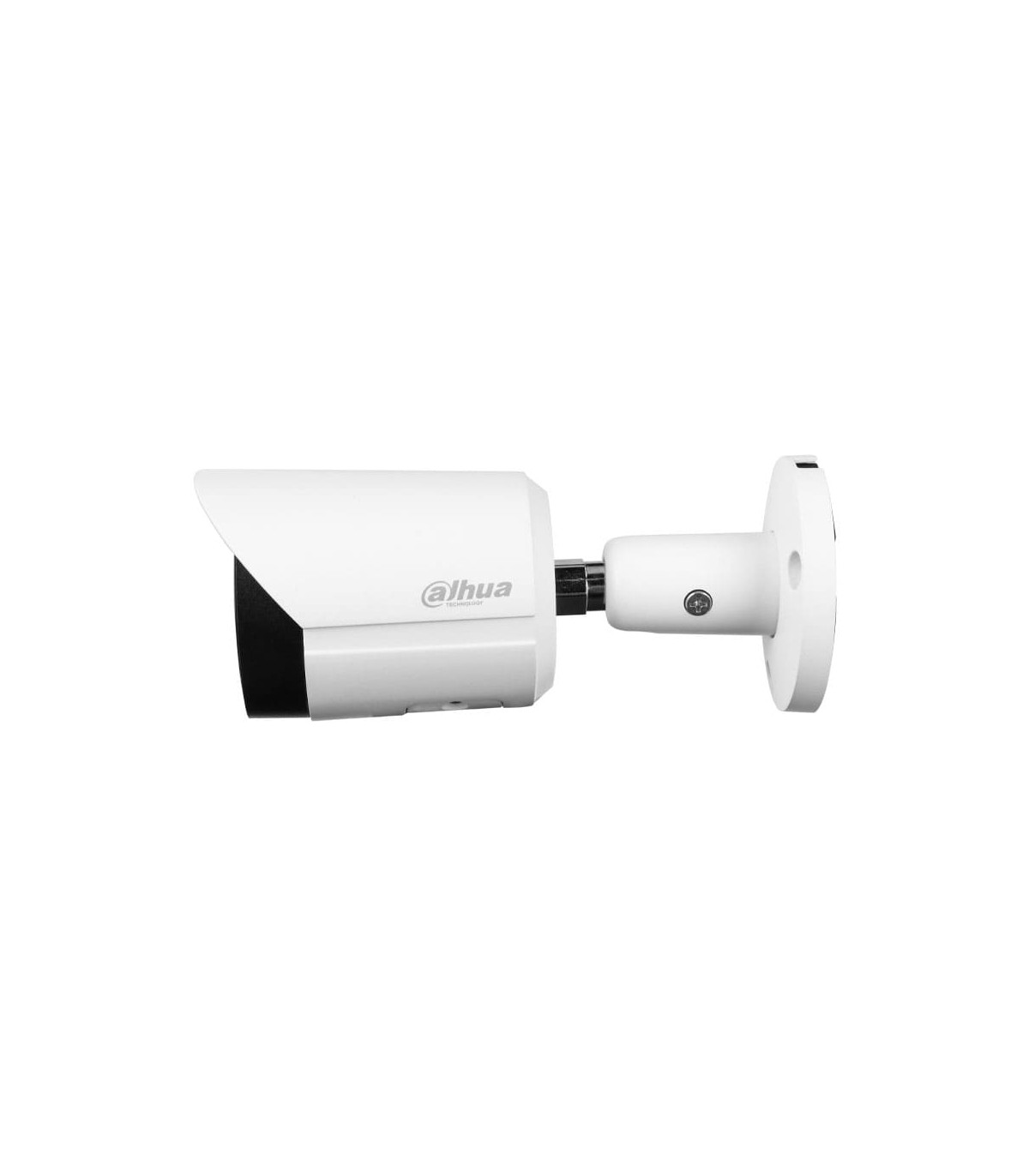

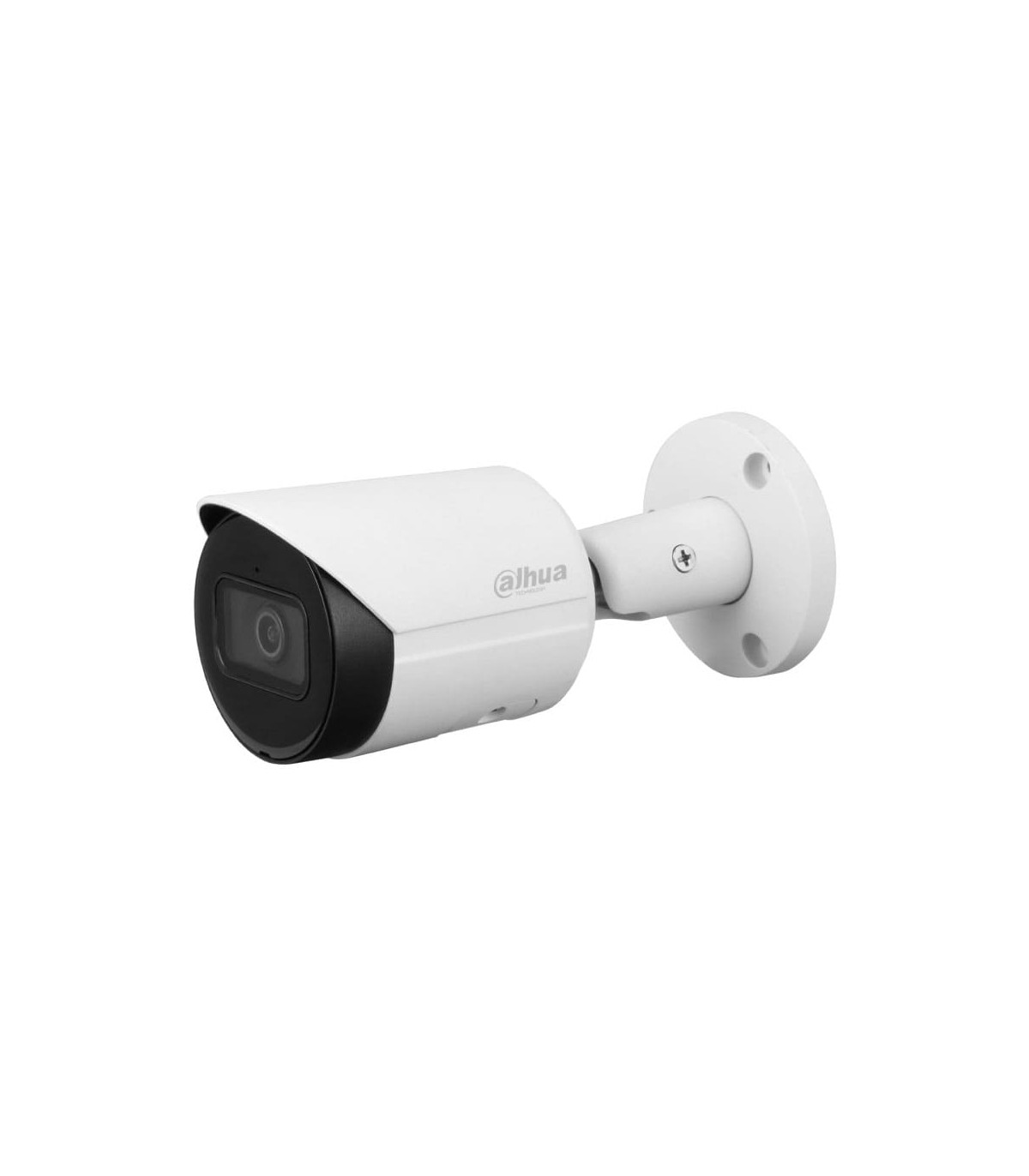

IPC-HFW2541S-S - WizSense 5MP outdoor IP camera

5-megapixel 1/2.7" CMOS sensor

Compression Formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG

Digital resolution: 5MP (2960x1668), 4.6MP (2880x1620), 4MP (2688x1520), 3MP (2048x1536; 2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576; 704x480), VGA (640x480), CIF (352x288; 352x240)

Stream 1: 5MP (1~20 ips), 4.6MP (1~25/30 ips)

Stream 2: D1 (1~25/30 fps)

Day/night mode with removable mechanical filter

Smart IR: 1 IR led, 30 meters range

0.007 lux F1.6 (color), 0.0007 lux F1.6 (B/W), 0 lux IR On

2.8 mm fixed optics

Angle of view: 111°(H), 58°(V), 132°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.

White balance with 6 modes

Automatic and manual gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask

Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)

SMD Plus

Built-in microphone

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Boujour, P2P

ONVIF (Profile S/G/T), CGI, SDK and API support

Up to 20 users

Remote viewing via IE, Chrome and Firefox browsers

Smart PSS Lite, DSS, DMSS, Smart PSS Lite management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af)

Power consumption: 4.1W (12V) / 5W (PoE)

Storage temperature from -40°C ~ +60°C

Operating temperature from -40°C ~ +60°C

Relative humidity: ≤95%.

IP67 protection rating

Metal housing

Dimensions: 70 (W) x 70 (H) x 166.2 mm

Net weight: 480 g

Gross weight: 590 g

3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(Rotation)
