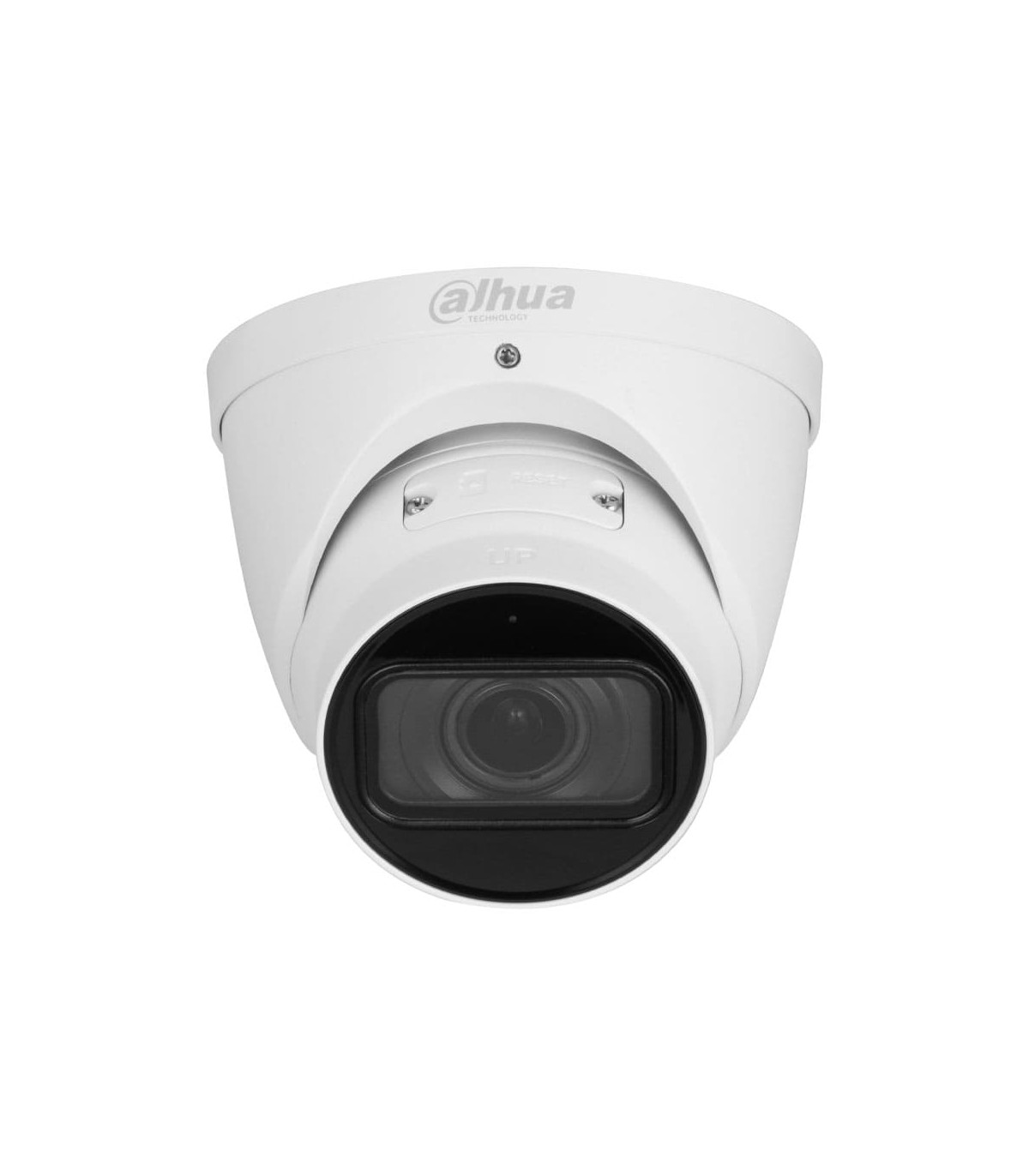

IPC-HDW2241T-ZS - WizSense 2MP outdoor IP dome

2 megapixel 1/2.8" CMOS sensor

Compression formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG

Digital resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)

Stream 1: 1080P (1~25/30 ips)

Stream 2: D1 (1~25/30 fps)

Day/night mode with removable mechanical filter

Smart IR: 2 IR LEDs, 40 meters range

0.002 lux F1.5 (color), 0.0002 lux F1.5 (B/W), 0 lux IR On

2.7~13.5 mm motorized optics

Angle of view: 108°~30°(H), 56°~17°(V), 131°~35°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.

White balance with 6 modes

Automatic and manual gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy masking

Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)

SMD Plus

Built-in microphone

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP

ONVIF (Profile S/T), CGI, P2P, Milestone, SDK and API support

Up to 6 users

Remote viewing via IE, Chrome and Firefox browsers

DSS, DMSS management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af)

Consumption: 5.7W (12V) / 6W (PoE)

Storage temperature from -40°C ~ +60°C

Operating temperature from -30°C ~ +60°C

Relative humidity: ≤95%.

IP67 protection rating

Metal housing

Dimensions: Ø122 x 108.3 (H) mm

Net weight: 690 g

Gross weight: 890 g

3AXIS: 0°~360°(PAN), 0°~78°(TILT), 0°~360°(Rotation)
