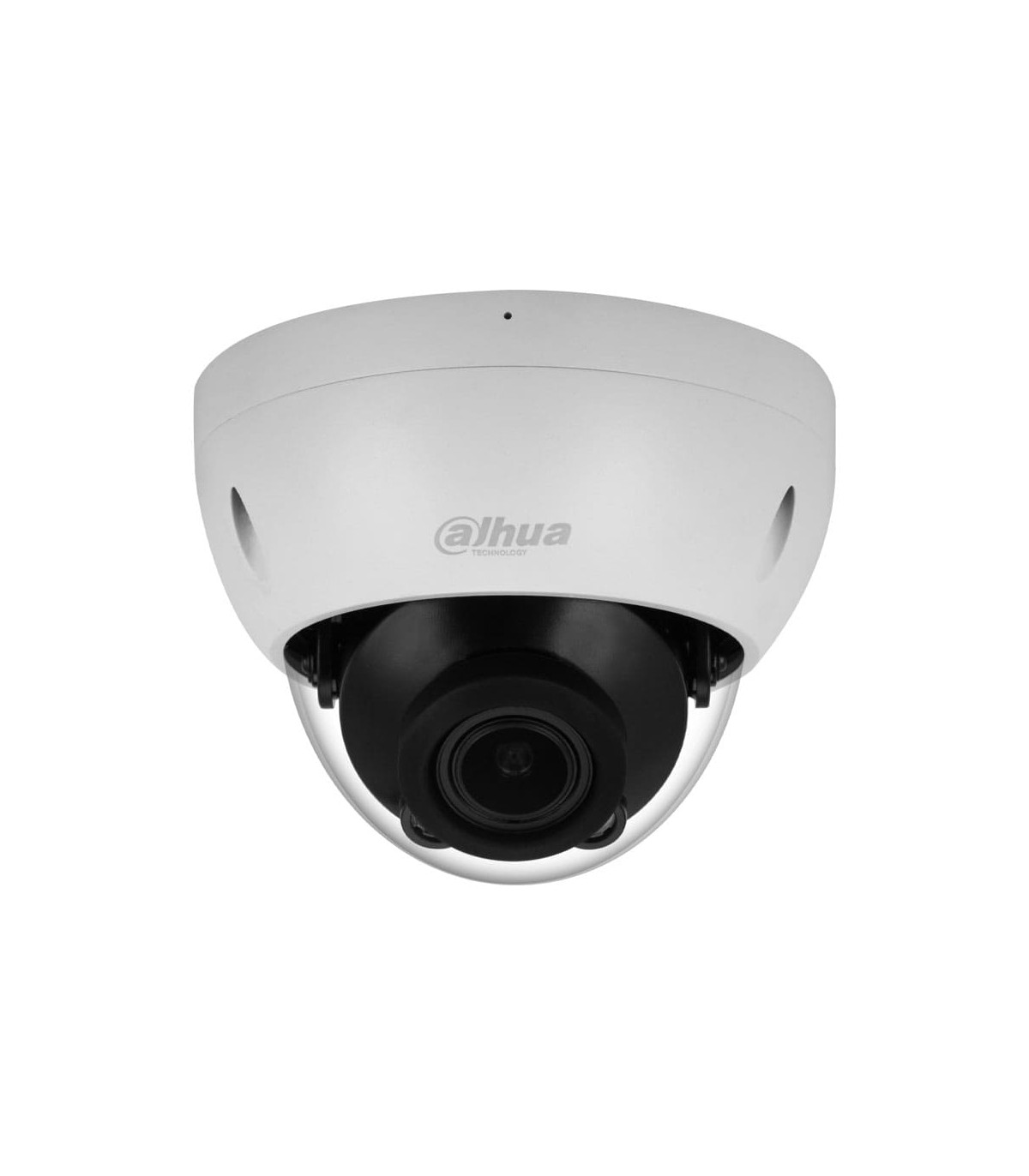

IPC-HDBW2241R-ZAS - WizSense 2MP outdoor IP dome

2 megapixel 1/2.8" CMOS sensor

Compression Formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG

Digital resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576/704x480), VGA (640x480), CIF (352x288/352x240)

Stream 1: 1080P (1~25/30 ips)

Stream 2: D1 (1~25/30 fps)

Day/night mode with removable mechanical filter

Smart IR: 2 IR LEDs, 40 meters range

0.002 lux F1.5 (color) / 0.0002 lux F1.5 (B/W) / 0 lux IR On

2.7~13.5 mm motorized optics

Angle of view: 108°~30°(H), 56°~17°(V), 131°~35°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.

White balance with 6 modes

Automatic and manual gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask

Perimeter protection with cross-line detection and intrusion detection (both modes support person/vehicle classification)

Built-in microphone

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP

ONVIF (Profile S/T), CGI, P2P, SDK and API support

Up to 6 users

Remote viewing via IE, Chrome and Firefox browsers

Smart PSS, DSS, DMSS management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af)

Maximum power consumption: 6.2W (12V) / 7.1W (PoE)

Storage temperature from -40°C ~ +60°C

Operating temperature: -30°C ~ +60°C (-30°C ~ +60°C)

Relative humidity: <95%.

IP67 degree of protection

Vandal protection IK10

Metal housing

Dimensions: Ø122 x 93.4 (H) mm

Gross weight: 660 g

Net weight: 490 g

3AXIS: 0°~355°(PAN), 0°~67°(TILT), 0°~355°(Rotation)
