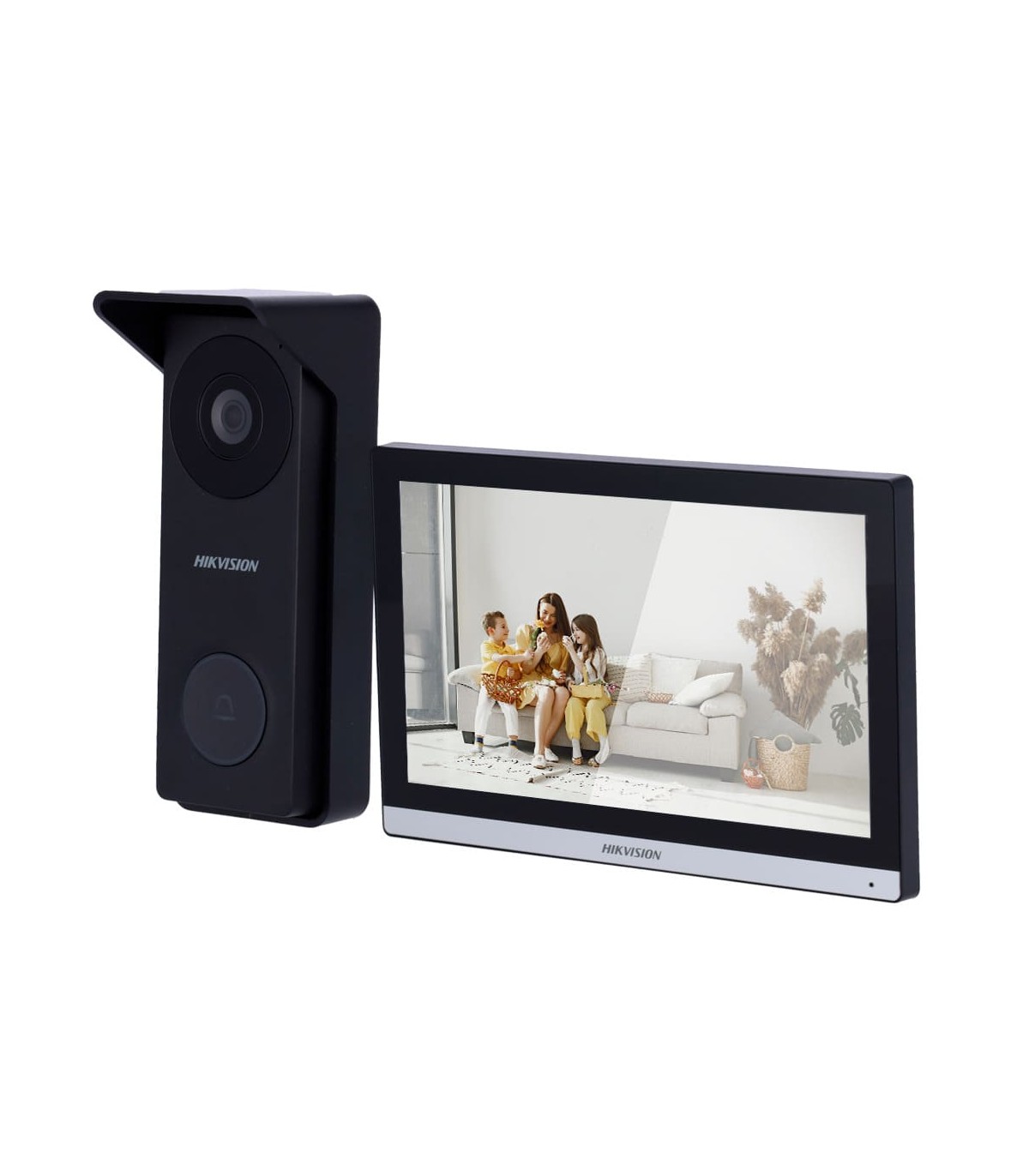

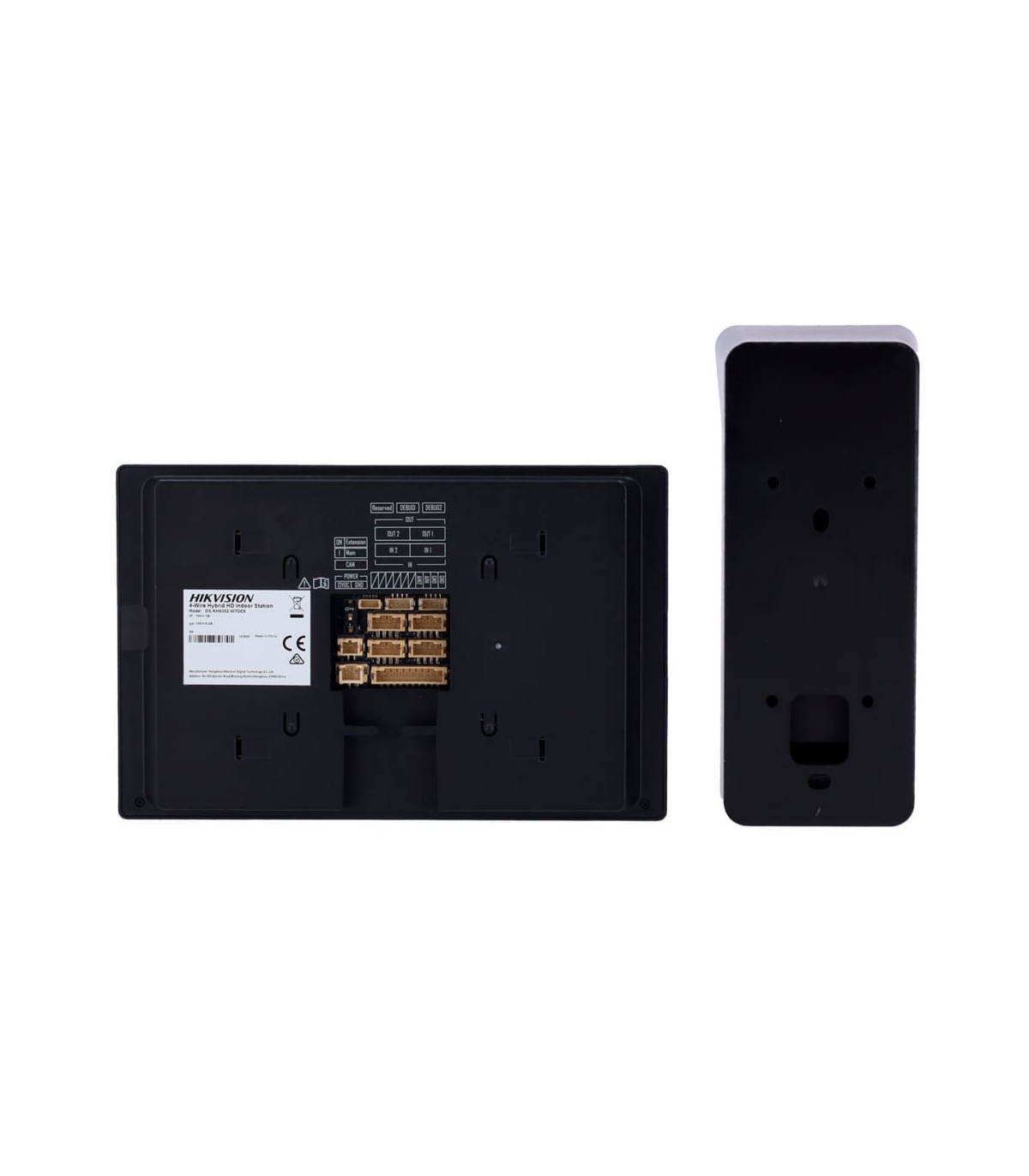

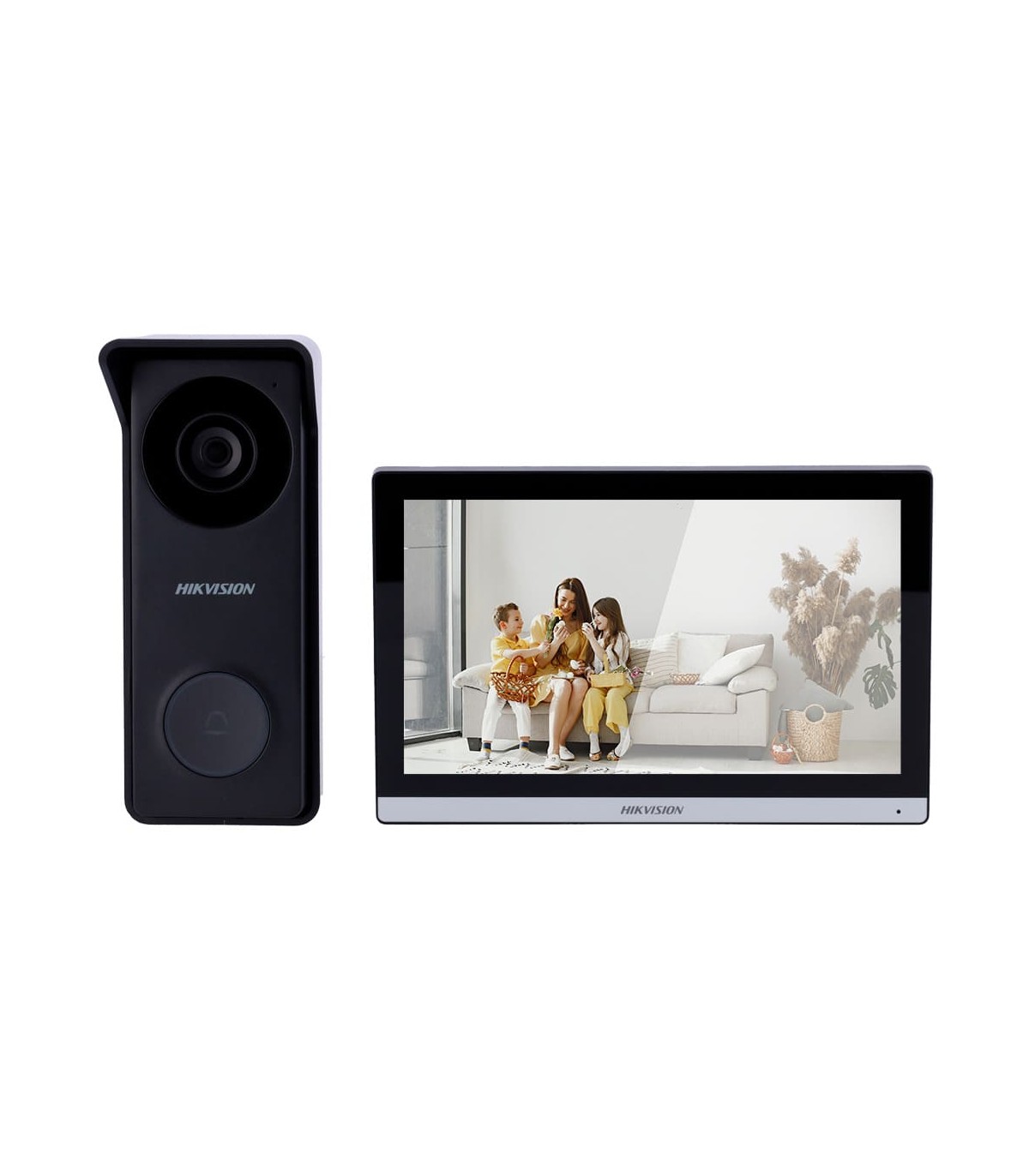

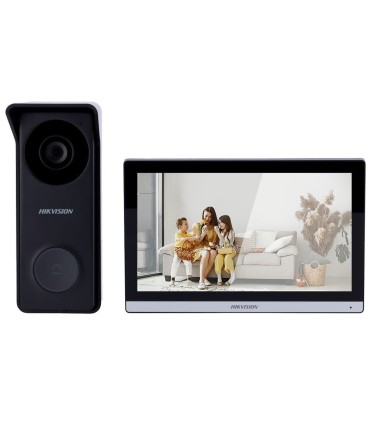

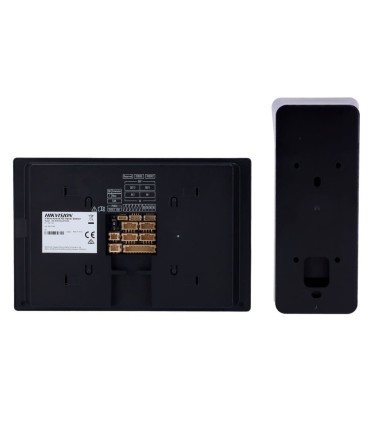

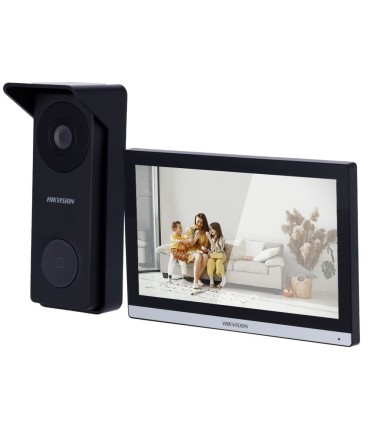

Board and monitor | Allows up to 2 monitors more
Connection for 4 wires
Mobile App with P2P | Internal relays on monitor
Surface mounting | IP65, IK08

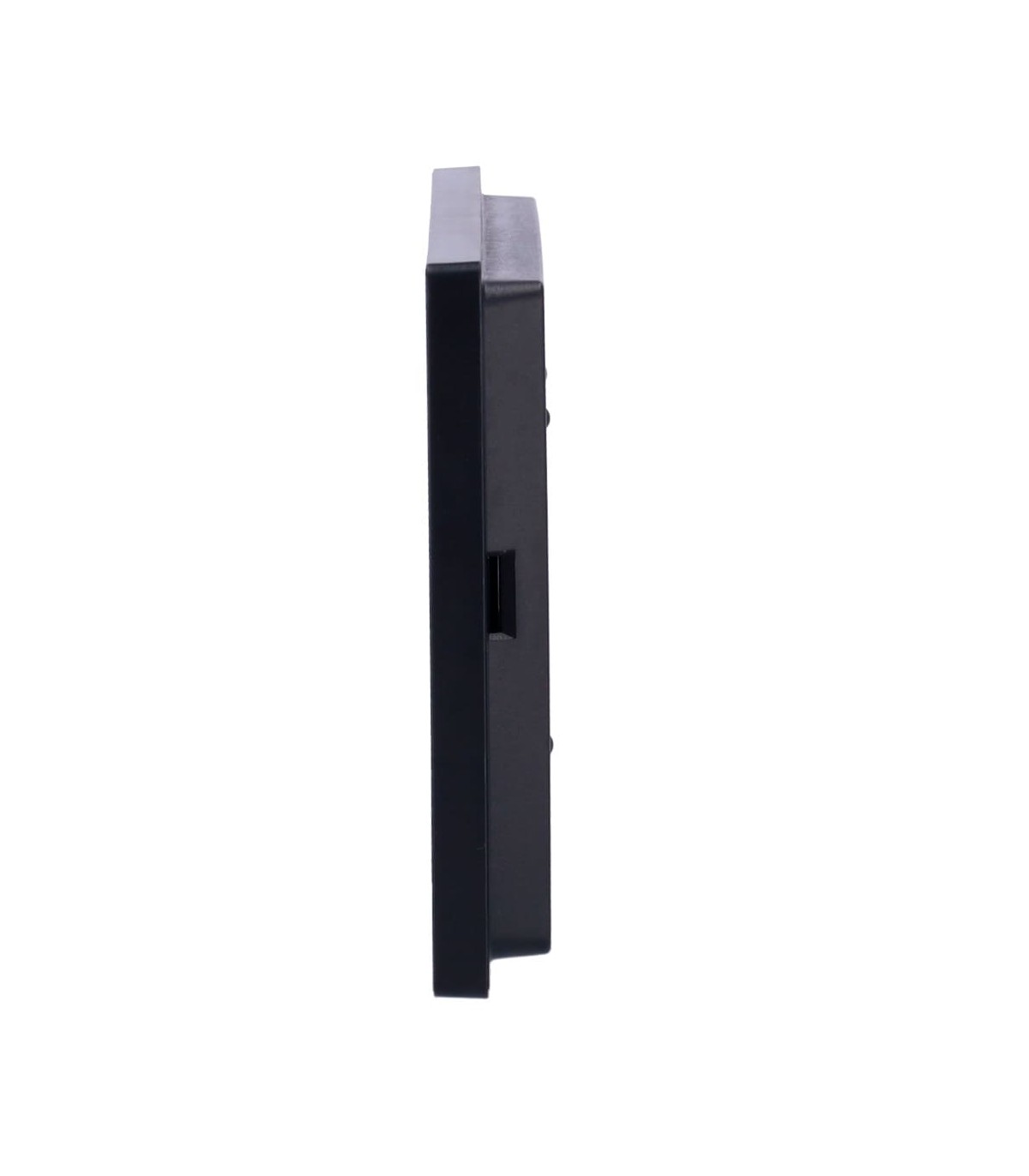

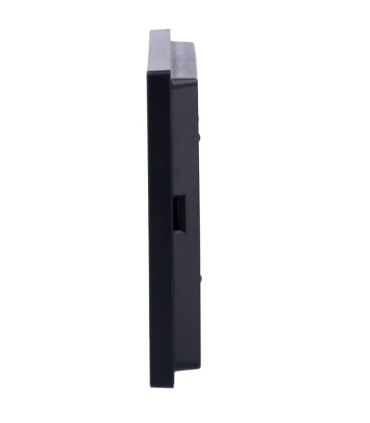

DS-KH6352-WTDE6 |
|
| Brand | Hikvision |
| Model | DS-KH6352-WTDE6 |
| Operating system | Linux |
| Screen type | 7" color touch-screen TFT |
| Screen resolution | 1024 x 600 |
| Inputs | 2 x 4 wire input for external boards, 1 x analog camera input, 2 x alarm input |
| Outputs | 2 x 4 wires output for indoor monitor, 2 x relay output |
| Audio | Two-way audio with integrated microphone and loudspeaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 4 analog wires / WiFi 802.11 b/g/n (only for connection to app via P2P) |
| Remote access | Hik-Connect mobile app |
| Power | DC 12 V / 420 mA máx. |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 114 (H) x 175 (W) x 18 (D) mm |
| Weight | 260 g |

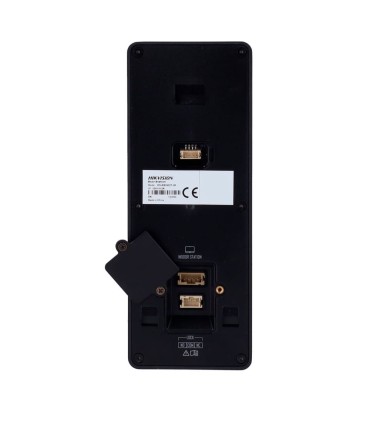

DS-KB2422T-IM |
|
| Brand | Hikvision |
| Model | DS-KB2422T-IM |
| Operating system | Embedded analog operating system |
| Image sensor | 1/2.7" 2 Mpx CMOS IR |
| Viewing angle | H: 117º, V: 70º, D: 141º |
| Audio | Bidirectional audio with microphone and speaker |
| Keypad | Mechanical call button |
| Outputs | 1 x relay output |
| Inputs | 1 x 4 wires |
| Communication | 4 wires |
| Power | DC 12 V / 330 mA máx. (via monitor by 4 wires) |
| Degree of protection | Suitable for exterior IP65 |
| Material | Aluminium alloy Anti-vandal IK08 |
| Temp. operation | -30 ºC ~ +60 ºC |
| Dimensions | 145 (H) x 55 (W) x 24 (D) mm |
| Weight | 200 g |
Surface mount with visor
Specific for video door intercoms
Compatible with DS-KV9503-WBE1
Cable routes
Dimensions: 189 (H) x 97 (W) x 49 (D) mm
Stainless steel
Power supply
DC output 24 V / 1.5 A / 36 W
1 output
54.5 (W) x 90 (H) x 35 (D) mm
DIN rail mount
Video intercom specific
Front panel and flush mount box
For 2 modules
Specific for Hikvision video door entry systems
Compatible with Hikvision modules
Box made of plastic
Panel made of stainless steel
Surface mount box
For 2 modules
Specific for Hikvision video door entry systems
Compatible with Hikvision modules
With protective shield
Panel manufactured in SECC
Desktop Stand
Specific for video door intercoms
Compatible with DS-KH6320 and DS-KH8520
Cable routes
86 (H) x 122 (W) x 84 (D) mm
Made of stainless steel SUS304
Surface mount with visor
Specific for video door intercoms
Compatible with DS-KV8x13-WME1(C)
Cable routes
Dimensions: 189 (H) x 97 (W) x 49 (D) mm
Stainless steel
Peripheral module
Add physical keyboard
USB connection
Fingerprint and PIN opening
Suitable for exterior IP65
Compatible with DS-KD9403
Peripheral module
Add physical keyboard
USB connection
Opening with PIN
Suitable for exterior IP65
Compatible with DS-KD9403
