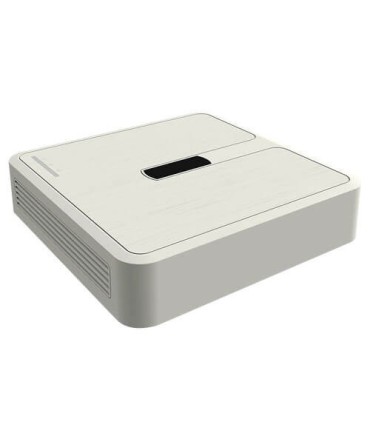

5n1 Hikvision 4 ch recorder View larger

5n1 Hikvision 4 ch recorder HWD-5104

HWD-5104

New product

  • 4 CH HDTVI / HDCVI / AHD / CVBS / 1 IP
  • 1080PLite/720P (25FPS)
  • Compression H.264+ / H.264
  • Full HD HDMI and VGA Output
  • 1 CH audio / Supports 1 hard drives

More details

€49.50 tax incl.

  • Hikvision HiWatch Series
  • DVR 5n1
  • 4 CH video HDTVI/HDCVI/AHD/CVBS / 1 IP / 1 CH audio
  • H.264+/H.264
  • Resolution per channel: 1080PLite/720P (25FPS)
  • PTZ Control (Coaxial)
  • Full HD HDMI and VGA Output
  • Mouse
  • Supports 1 HDD
Brand Hikvision
Range HiWatch Series
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration 4 BNC channels and 1 IP channels (up to 960p)
Video outputs 1 HDMI Full HD, 1 VGA
Bidirectional audio 1 input / 1 RCA output
Video / audio compression H.264+ / H.264 / G.711u
Display resolution 1920x1080, 1280x1024, 1280x720, 1024x768
Total bandwidth 32 Kbps at 4 Mbps
Recording resolution 1080p Lite / 720p / WD1 / 4CIF /VGA / CIF
Main Stream coding 1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (1~25 FPS)
Extra Stream coding CIF / QVGA / QCIF (1~25 FPS)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Recording method Manual, programmed, motion detection
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal memory 1 HDD SATA 3.5" of up to 6TB (not included)
Communication 2 x USB 2.0 (Mouse and backup) / RJ45 10/100 (Ethernet)
Remote access Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Power supply DC 12 V / 650 mA
Dimensions / Weight 45 (H) x 200 (W) x 200 (D) mm / 0.8 Kg
