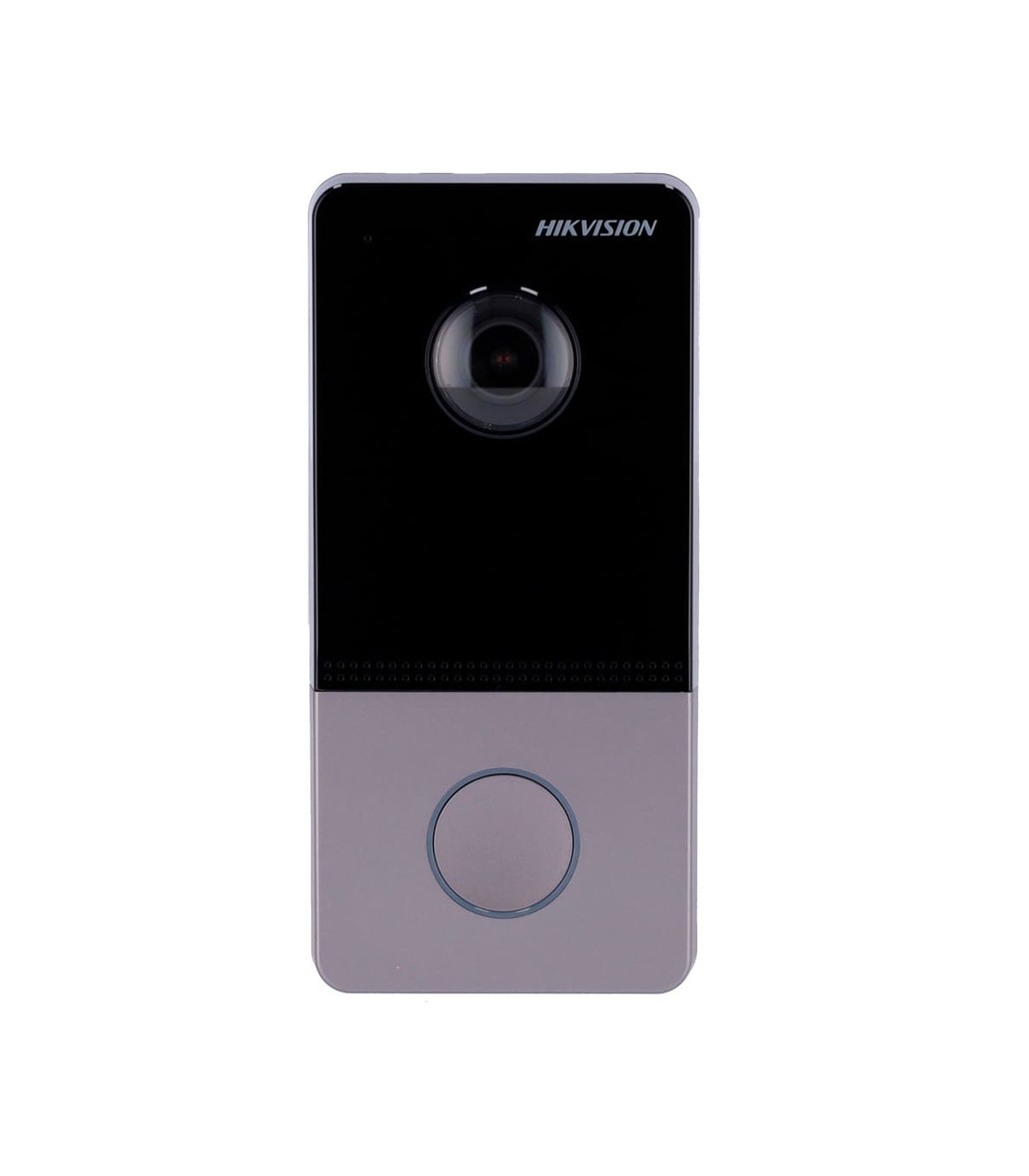

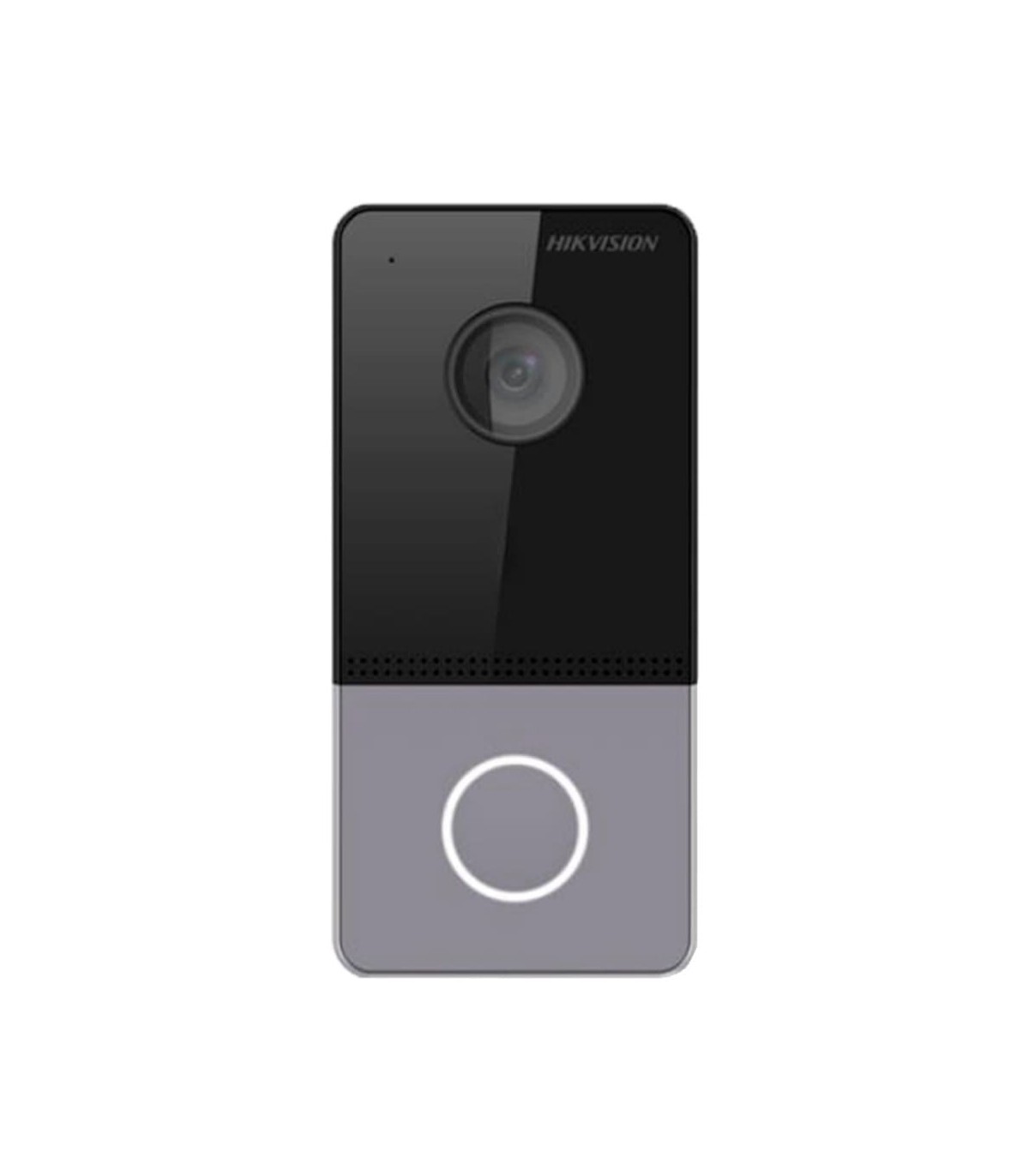

Video intercom IP
2 MP camera
Bidirectional audio
Mobile App with or without monitor
Suitable for exterior IP65
Surface mounting | PoE
| Brand | Hikvision |
| Model | DS-KV6103-PE1(C) |
| Operating system | Linux |
| Image sensor | 1/3" 2 Mpx CMOS wide-angle IR |
| Image Functions | BLC / WDR / DNR |
| Viewing angle | H: 131º, V: 78º |
| Audio | Bidirectional audio with microphone and speaker |
| Keypad | Mechanical call button |

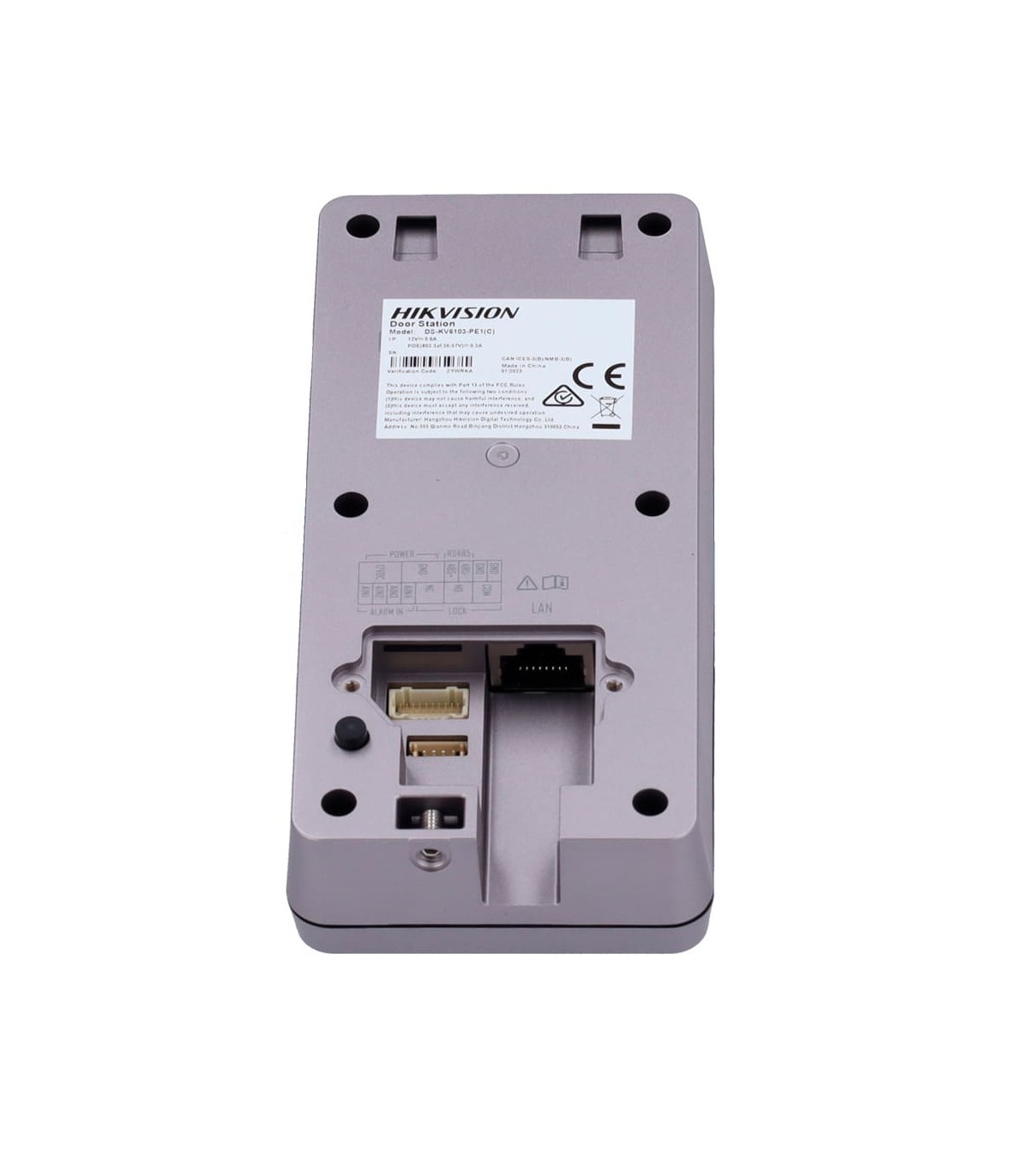

| Outputs | 1 x lock relay |
| Inputs | 4 x auxiliary inputs (output button, feedback, door sensor), 1 x tamper |
| Remote access | Web browser Software iVMS-4200 Hik-Connect mobile application |
| Network interface | Ethernet 10/100 BaseT / SIP Protocol 2.0 |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Degree of protection | Suitable for exterior IP65 |
| Material | Plastic |
| Temp. operation | -40º C ~ +55º C |

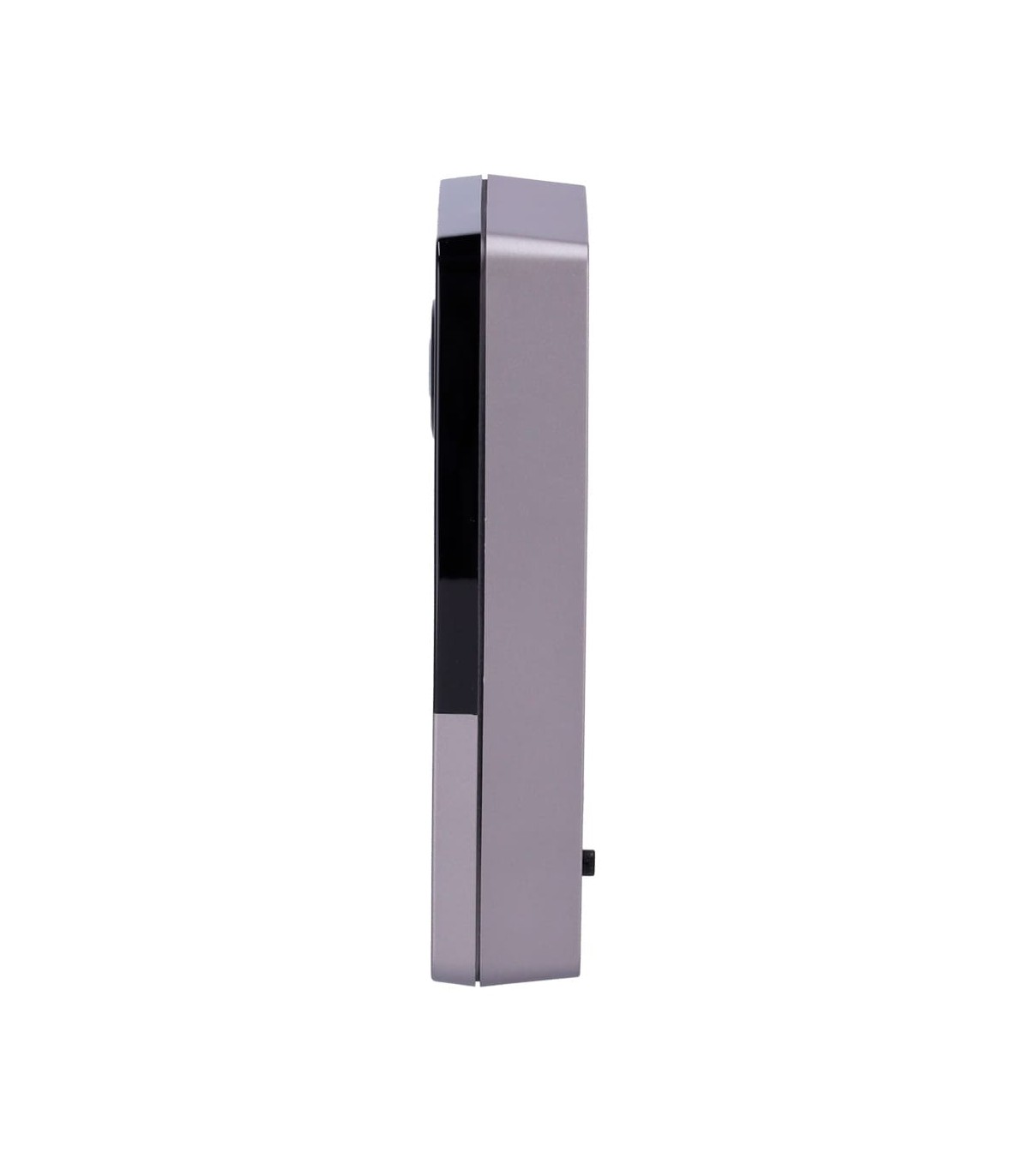

| Dimensions | 138 (H) x 65 (W) x 27 (D) mm |
| Weight | 200 g |
Surface mount with visor
Specific for video door intercoms
Compatible with DS-KV61x3-xPE1
Cable routes
150 (H) x 80 (W) x 49 (D) mm
Made of methacrylate
