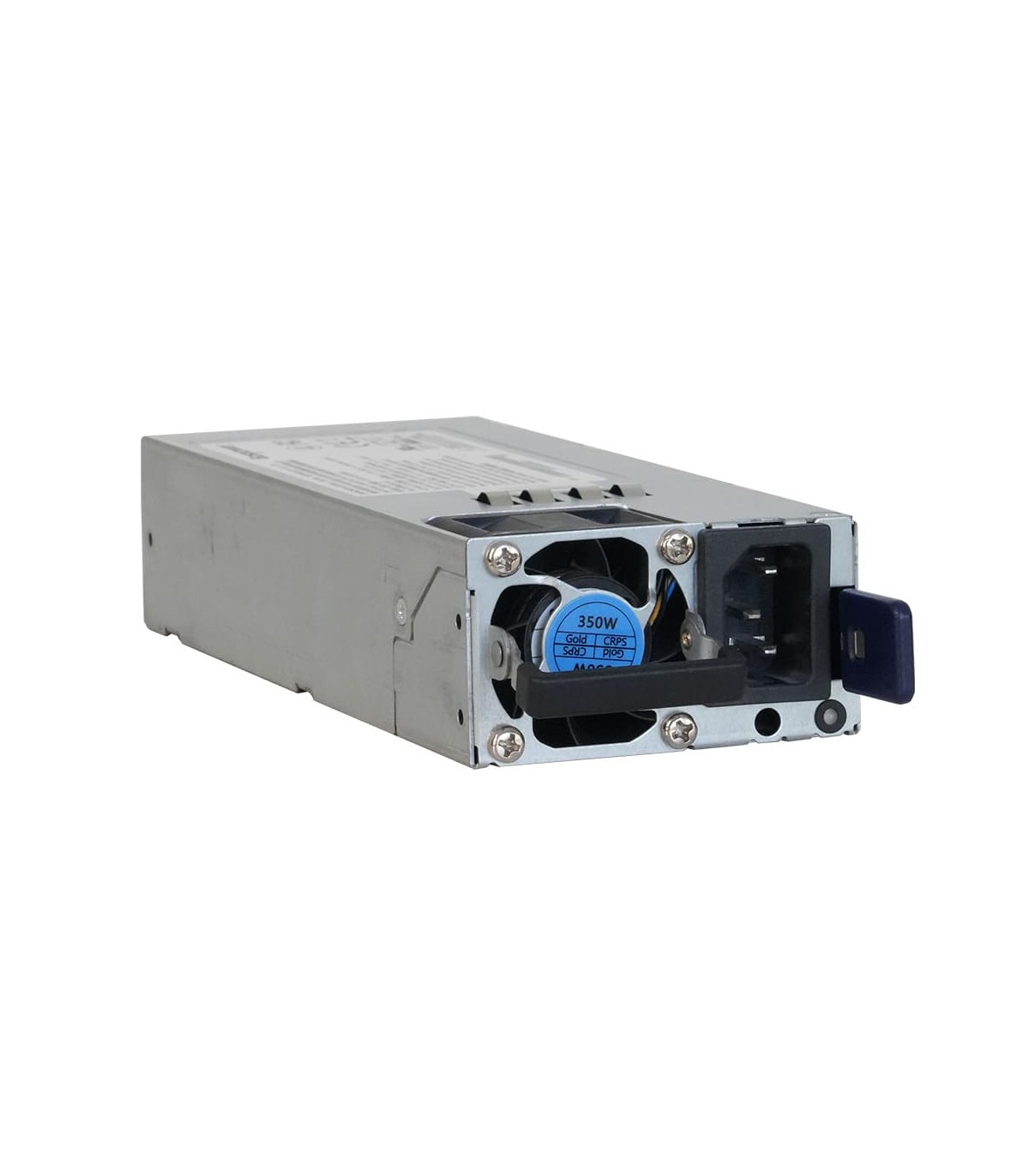

Uniview Power Supply
DC Output 12V 29A / 350W
Input voltage 90 ~ 264VAC
185 x 40 x 73.5 mm
Compatible with UNICORN and UV-NVR516 Series
| Power supply input | AC 90~269 V (47~63 Hz) |
| Frequency | 47 ~ 63 Hz |
| Power factor | ≥0.95 |
| Input current | ≤ 6.3 To @100-240VAC |
| Input protection | Low input voltage, over input voltage |
| Power supply output | +12VDC / 29A +12V Standby / 2.1A |
| Maximum output power | 350 W |
| Output efficiency | ≥89%, 220V AC/29A |
| Line regulation | ±5% |
| Load regulation | ±5% |
| Accuracy of regulated voltage | ±5% |
| Dynamic response overshoot | ±5% |
| Shared current ratio | ±5% |
| Output protection | Short circuits, overloads and surges |
| Indicator light | Normal: green Abnormal: yellow |
| Temperature range | 0 ~ 50℃ |
| Heat dissipation | Ventilated, heat emission to the backrest |
| Dimensions | 185 (D) x 40 (H) x 73.5 (W) mm |
| Approved standards | CB, FCC, UL |
Power supply distribution box
Input AC 100-240 V 50/60 Hz
8 channels
Protection by resettable PTC fuse
Output voltage 24 V / 8A
Metal housing
Switching Power Supply
DC Output 12V 10A / 120W
2 outputs
Input voltage 90 V ~ 264 V
135 (D) x 121 (H) x 40 (W) mm
DIN rail mount
