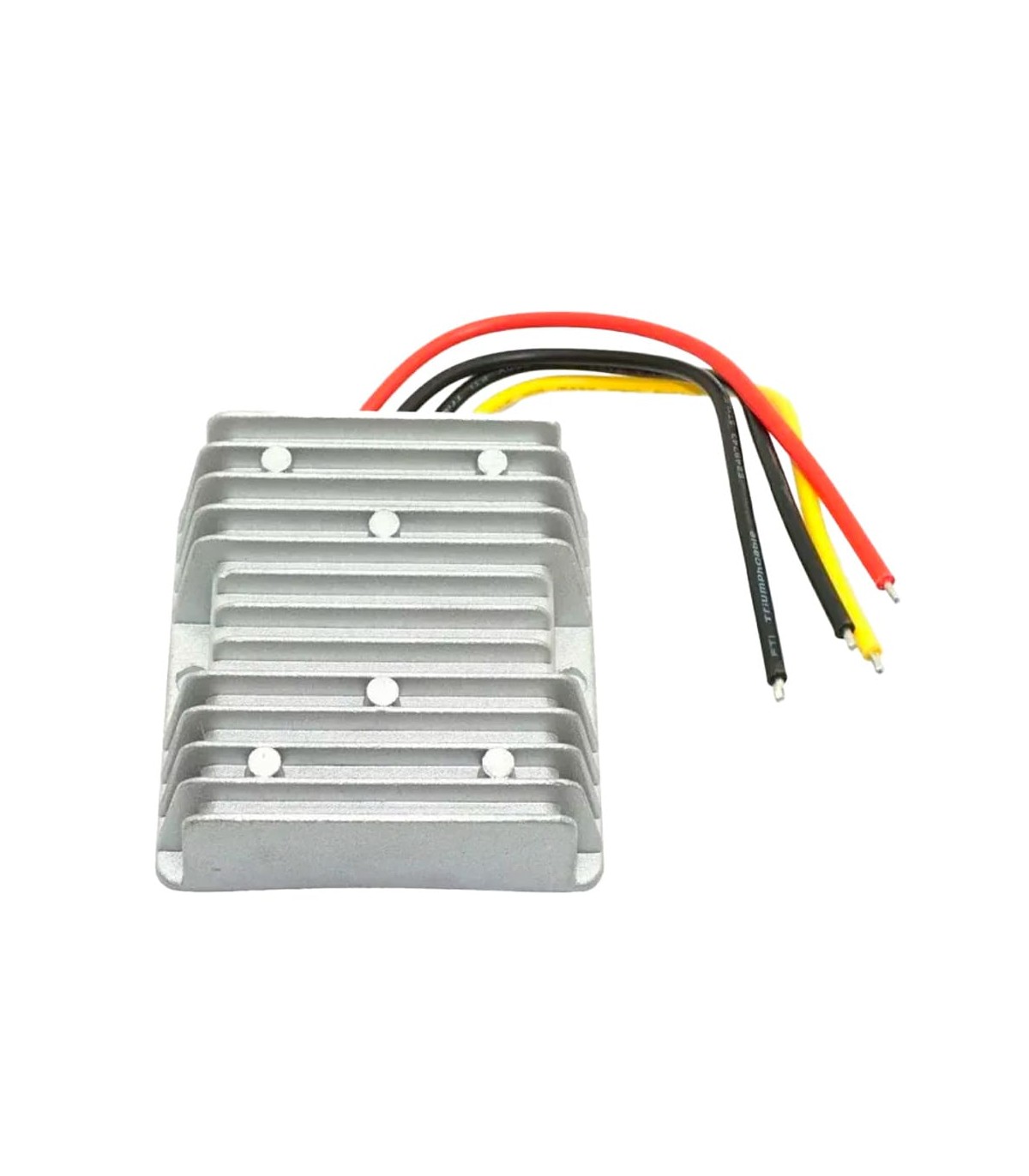

Industrial DC/DC power supply
DC input voltage 10 - 30V
DC output voltage 52V
Maximum output 3A / 156W
Lightweight and small size
IP68
| Type | Industrial DC/DC power supply |
| Rated input voltage | 12 VDC |
| Input voltage range | 10 - 30 VDC |
| Efficiency | 94% half load 93% full load |
| Output Voltage | 52 VDC |
| Output current | 3A |
| Maximum output power | 156W 125% |
| Number of outputs | 1 |
| Voltage regulation | <1% |
| Regulación de carga | <2% |
| Ondulación a plena carga | <170mV |
| Corriente sin carga | <40mA |
| Temperatura de trabajo | -40 - 80ºC |
| Protecciones | Sobretensión, sobrecorriente y sobretemperatura |
| Dimensiones | 74 x 74 x 32 mm |
| Dimensiones packaging | 100 x 100 x 32 mm |
| Peso | 300 g |
| Peso packaging | 320 g |
| Índice de protección | IP68 |
| Refrigeración | Convección natural |
| Certificaciones | CE, RoHS |
Power supply with UPS function
DC Output 12V 5A / 60W
AC input voltage 100V ~ 240V 50Hz-60Hz
97 (D) x 55 (H) x 88 (W) mm
DIN rail mount
Protection: Overload/Overvoltage/Short circuit
Power supply
DC Output 12V 3A / 36W
AC input voltage 100V ~ 240V 50Hz-60Hz
97 (D) x 55 (H) x 88 (W) mm
DIN rail mount
Protection: Overload/Overvoltage/Short circuit
Slim power distribution box
1 AC input 220 V 5OHz
9 outputs
Resettable fuse protection
Output voltage 12 V / 120 W
Metal housing
Slim power distribution box
1 AC input 220 V 5OHz
4 outputs
Resettable fuse protection
Output voltage 12 V / 60 W
Metal housing
Power supply
DC Output 12V 1.67A / 20W
Input voltage 100-240VAC 50/60Hz
23 x 100 x 92 mm
DIN rail mount
Protection: Overload/Overvoltage/Short circuit
Power supply
DC Output 24V 2.5A / 60W
AC input voltage 100V ~ 240V 50Hz-60Hz
97 (D) x 55 (H) x 88 (W) mm
DIN rail mount
Protection: Overload/Overvoltage/Short circuit
Power supply distribution box
1 input AC 100-240 V 50/60 Hz
DC output voltage 12V 5A
Plastic box
Switching Power Supply
Input AC 100~240 V
DC Output 12 V / 2,5 A (30W)
Adjustable output 11,4~12,6 V
Protected against surges
and current peaks
