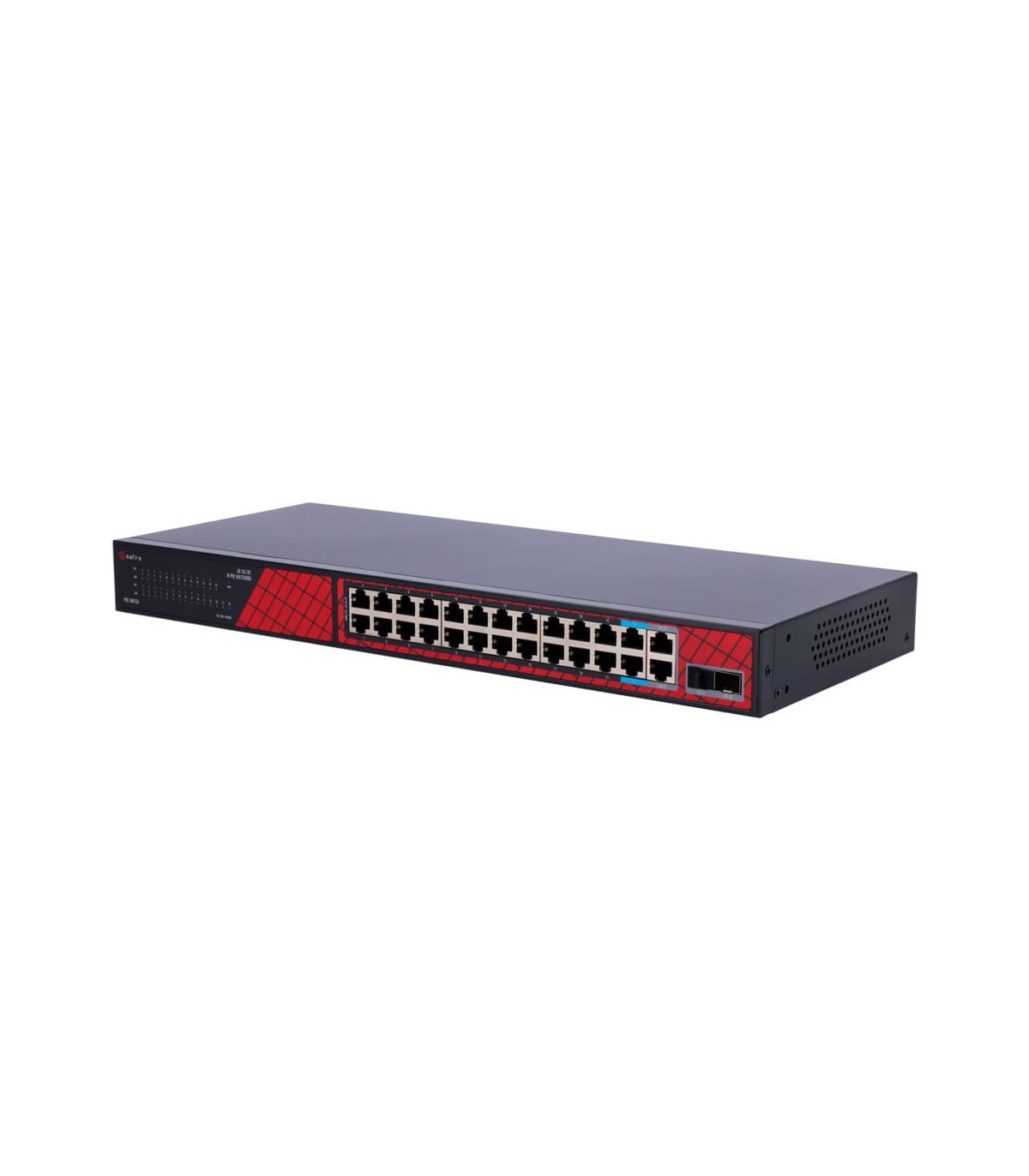

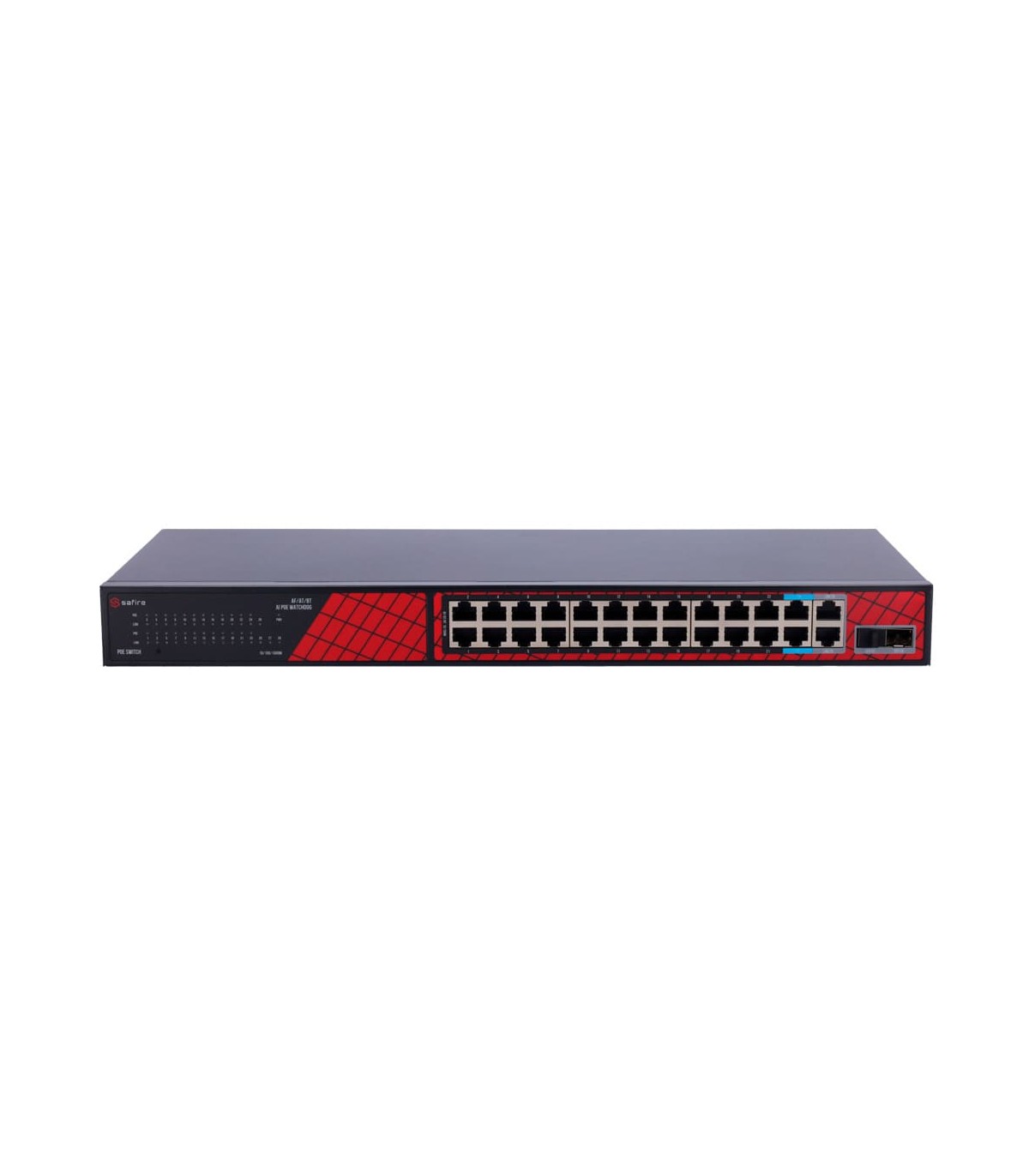

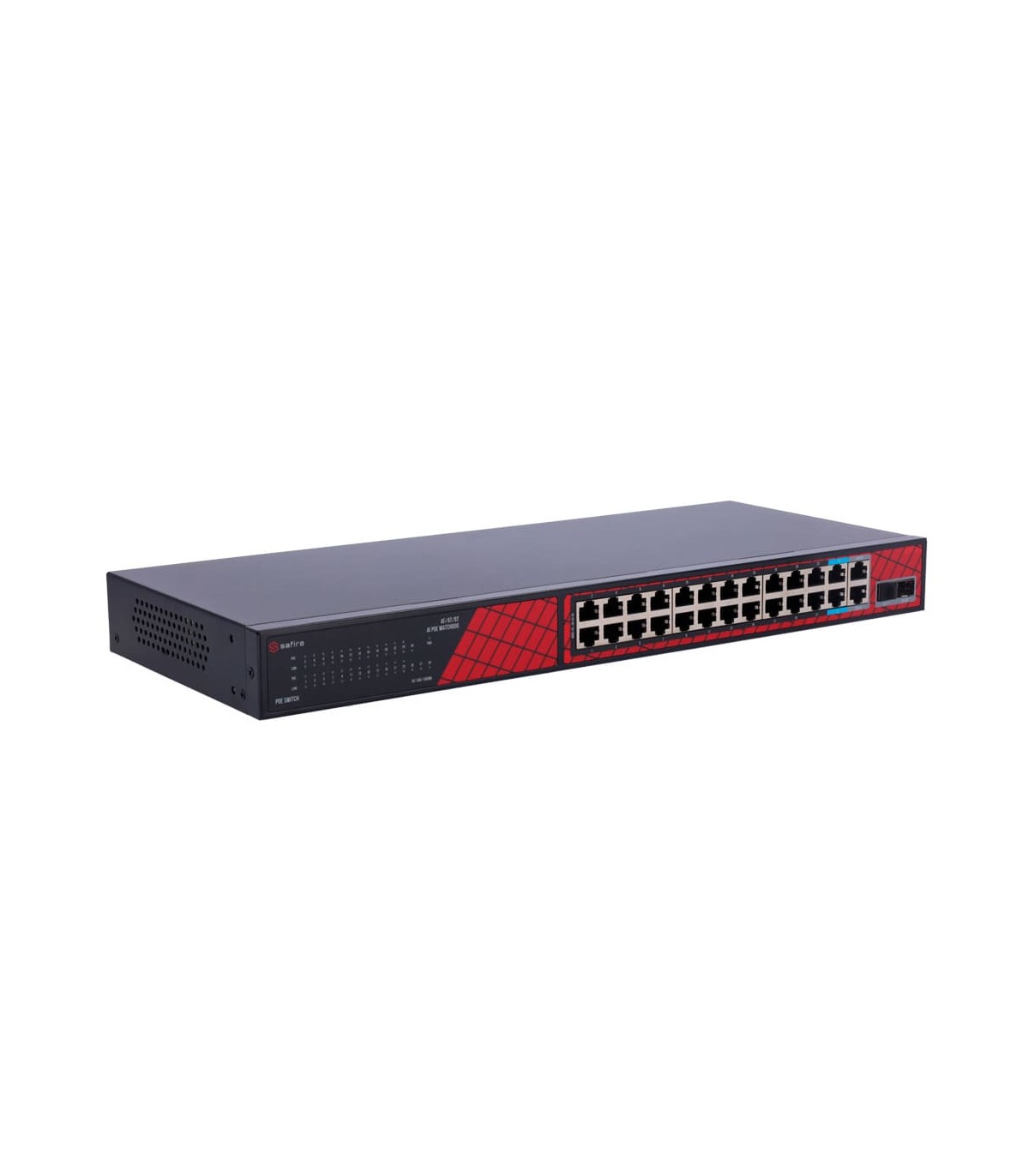

24 ports + 2 SFP Uplink + 2 Uplink RJ45
Fast Ethernet port speed 10/100 Mbps
22 PoE+ Ports 30W + 2 Hi-PoE Ports 60W
PoE Watchdog
Up to 300W Total PoE Power
| Interfaces | 24 ports RJ45 PoE + 2 Uplink RJ45 + 2 Uplink SFP |
| Port speed RJ45 | 24x 10/100Mbps + 4x 10/100/1000Mbps |
| PoE features | Up to 300W in total for all ports Ports 1~22 PoE+ Up to 30W 802.3af/at Port 23~24 Hi-PoE Up to 60W 802.3af/at/bt |
| Uplink ports | RJ45 25~26: 10/100/1000Mbps uplink ports SFP 27~28: 10/100/1000Mbps SFP uplink ports |
| Transmission distance | Port 1~24 130 meters 10/100Mbps, 250 meters 10 Mbps |
| Bandwidth | 12,8 Gbps |
| MAC Table | 8K |
| Latency | 1000MBps < 16μs (using 64 byte of packet size) |
| AI PoE | PoE Watchdog Ports 1~24 - Automatic restart of the power supply to a PoE port when a possible failure is detected. |

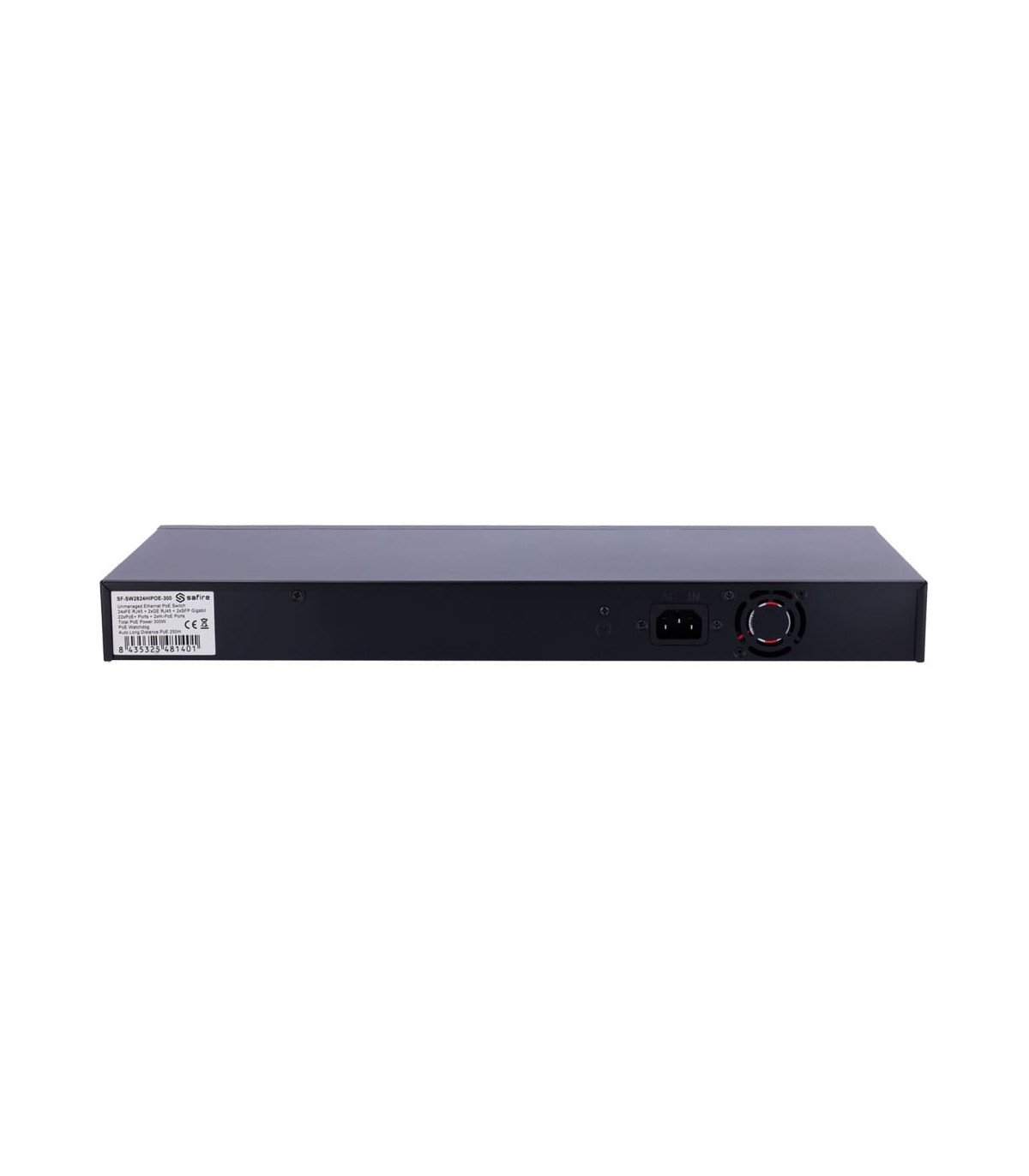

| Power | Rear Socket 90~240V |
| Protections | 6KV against Rays 8KV ESD Protection |
| Operating temperature | -30° C - 60° C |
| Dimensions | 180 (D) x 45 (H) x 440 (W) mm |
| Weight | 2,65Kg |
