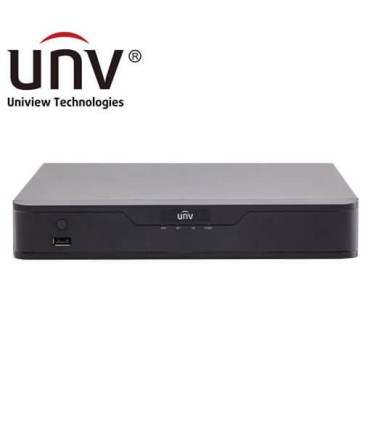

NVR301-04S - Uniview 4-channel Network Video Recorder

Compression: Ultra 265 / H.265 / H.264
Compatible with ONVIF protocol
Supports 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840x2160)
Simultaneous HDMI and VGA output
Recording resolution up to 8 Megapixels
Capacity for 1 HDD up to 10TB
ANR technology
Support cloud upgrade

Read moreShow less
€65.00 (tax incl.)
DELIVERED IN: 2 to 5 days depending on destination country
Reference:
NVR301-04S
Brand:
Add to compare0
Add to wishlist
Description

SPECIFICATIONS

NVR301-04S NVR301-08S
Video/Audio Input
IP Video Input 4-ch 8-ch
Network
Incoming bandwidth 40Mbps 48Mbps
Outgoing bandwidth 48Mbps 48Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Audio Output 1-ch, RCA
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback 4-ch 8-ch
Corridor Mode Screen 3/4 3/4/5/7/9
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/ Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30
Hard Disk
SATA 1 SATA interface
Capacity up to 10TB for each disk
External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel:1 x USB2.0, Front panel:1 x USB2.0
General
Power Supply 12V DC
Power Consumption: ≤ 5 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 260.0mm × 240.2mm ×43.6mm (10.2"× 9.5"×1.7")
Weight ( without HDD ) ≤ 1 Kg (2.2 lb )



Read moreShow less
