DHI-KTX03- Dahua 2-wire IP video door phone kit

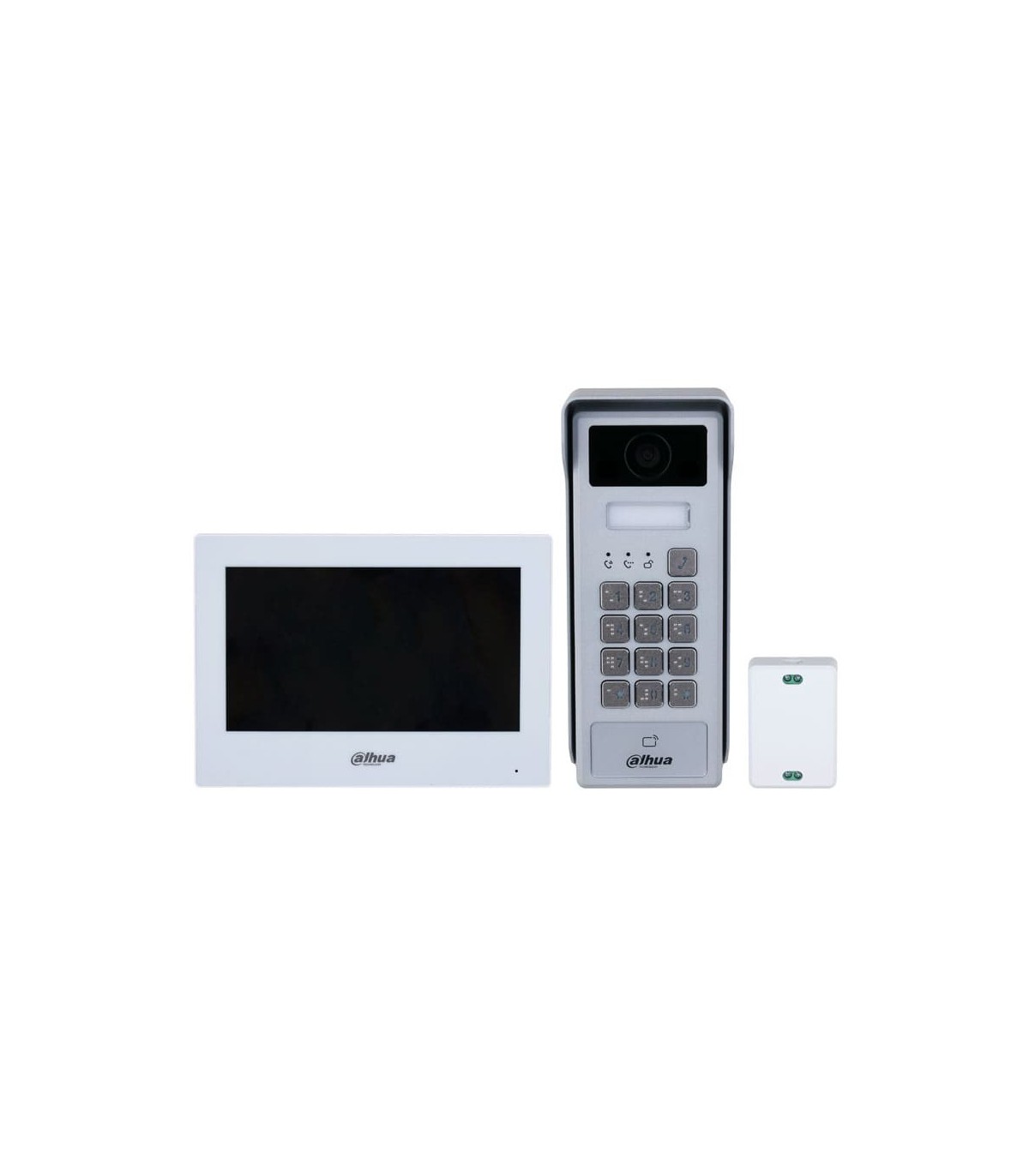

Dahua 2-wire hybrid video door entry kit including:

1x 2-wire hybrid video door phone DHI-VTO2023S

• Dahua 2-wire hybrid video door station suitable for outdoor use

• 2MP CMOS camera with 84°(H), 43°(V), 99°(D) viewing angles

• Day/night mode with removable mechanical filter

• Automatic infrared illumination

• Image modes: Digital WDR, 3D-NR

• Two-way half-duplex audio

• Built-in microphone and speaker

• IC card reader

• 0 ~ 2 cm card reading distance

• Capacity up to 100 cards

• Allows leaving video messages for unanswered calls (SD card required)

• Supports local lock and second lock

• Tamper alarm

• Cell phone app: talk to visitor or unlock the door remotely on your phone

• 1 alarm output

• 1 exit request button port

• 1 door status detection port

• 1 door lock control port

• 1 RS485 port

• 1 power supply output 12V DC, 500 mA

• Power supply: 2-wire controller

• Power consumption: ≤2 W (standby), ≤12W (operating)

• Operating temperature from -40°C ~ +60°C

• Operating relative humidity 10% ~ 90% (non-condensing)

• IP65 and IK08 vandal-proof protection degree

• Aluminum alloy front panel

• Silver color

• Dimensions: 85.3 (W) x 205.8 (H) x 46.5 mm

• Gross weight: 978 g

• Surface installation

1x WIFI 2-wire Monitor DHI-VTH2123GW-W

• 7" TFT capacitive touch screen (1024x600)

• Communicates with VTOs via half-duplex, and with the application via full-duplex

• Supports video recording and snapshot capture (SD card required)

• 1 audio input

• Built-in speaker

• G.711a, G.711u, PCM audio compression

• 6 alarm inputs / 1 alarm output

• 1 RS485 port

• Power output 12V, 200 mA

• Application can be used to receive calls and alarm notifications

• Allows connection with HDCVI cameras

• Built-in WiFi 802.11b/g/n 2.4GHz

• Network protocols: UDP, TCP/IP, IPv4, DNS

• Power supply: 2-wire controller

• Power consumption: ≤4W (standby), ≤10W (operation)

• Operating temperature from -10°C ~ +55°C

• Operating relative humidity 10% ~ 90% (non-condensing)

• Polycarbonate and ABS housing

• Dimensions: 189.6 (W) x 134.6 (H) x 24 mm

• Weight: 622 g

• Surface installation

1x 2-wire controller (VTNC1003C)

• Power supply: 48V DC

• Power consumption: 3.5W

• Operating temperature from -10°C ~ +55°C

• Operating relative humidity 10% ~ 95% (non-condensing)

• Polycarbonate and ABS housing

• Color: white

• Dimensions: 46,2 (W) x 65,2 (H) x 23,2 mm

• Weight: 130 g
