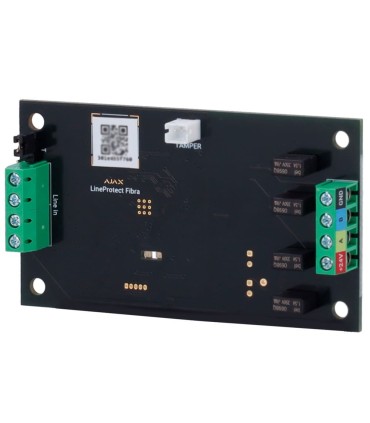

Wired line protection module
Product reserved for professional Ajax certified installers
- Wired line protection module
- Against short circuits, voltage of 110/230 VAC,
- High voltage and electric shocks
- Fibra Protocol
- Grade 3 approved
- Termination resistor jumper is available
€45.50
Delivered in 2 to 4 days
Reference:
FIBRA-LINEPROTECT
Brand:
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Bus connection | 4 wire cable |
| Protection against | Short circuits, 110/230 VAC voltage, high voltage, electric guns and sabotage |
| Tamper-resistant opening | Available (connected to the housing) |
| Termination resistor jumper | Available |
| Number of output lines | 1 |
| Number of input lines | 1 |
| Power | 24 VDC of fiber bus |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |
| Temp. operation | -10 ºC ~ 40 ºC |
| Dimensions | 50 (H) x 90 (W) x 15 (D) mm |
| Weight | 34 g |
